16mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 12mm Pipe
Product Overview:

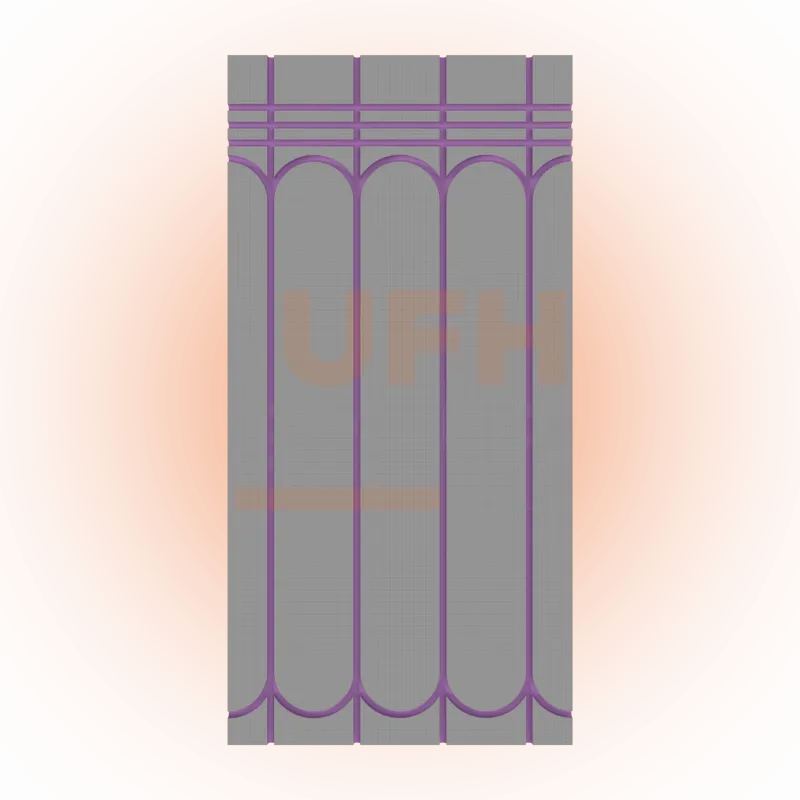

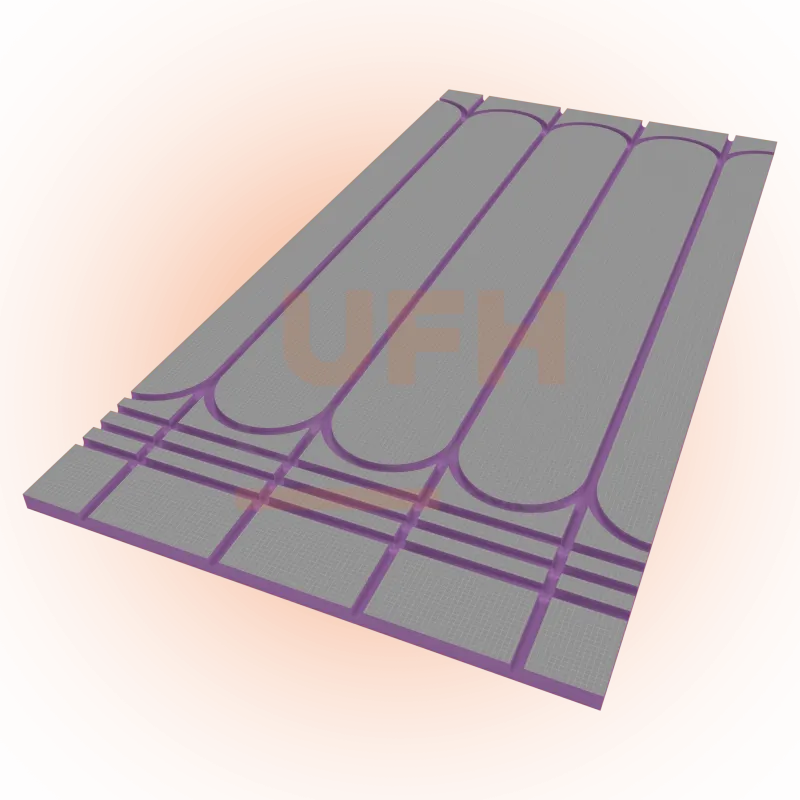

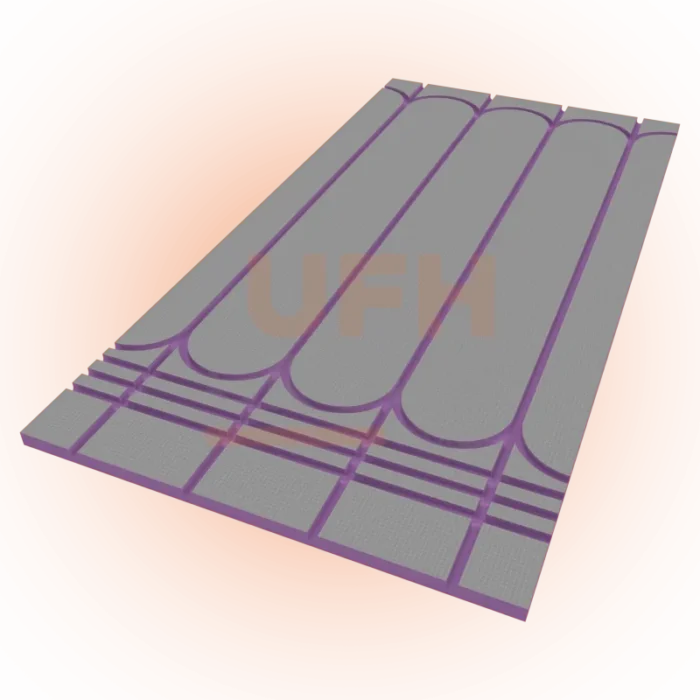

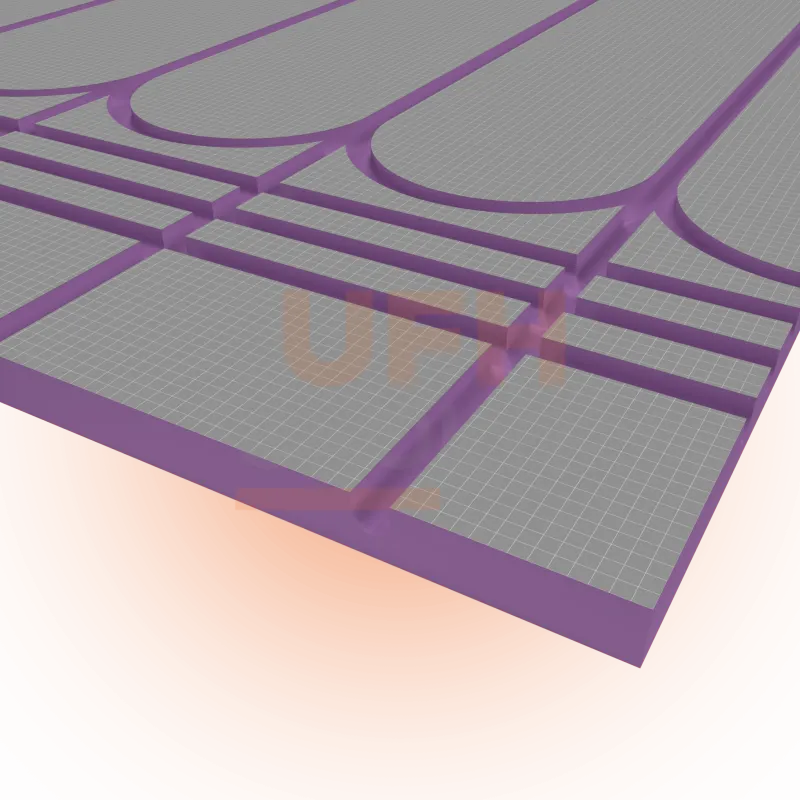

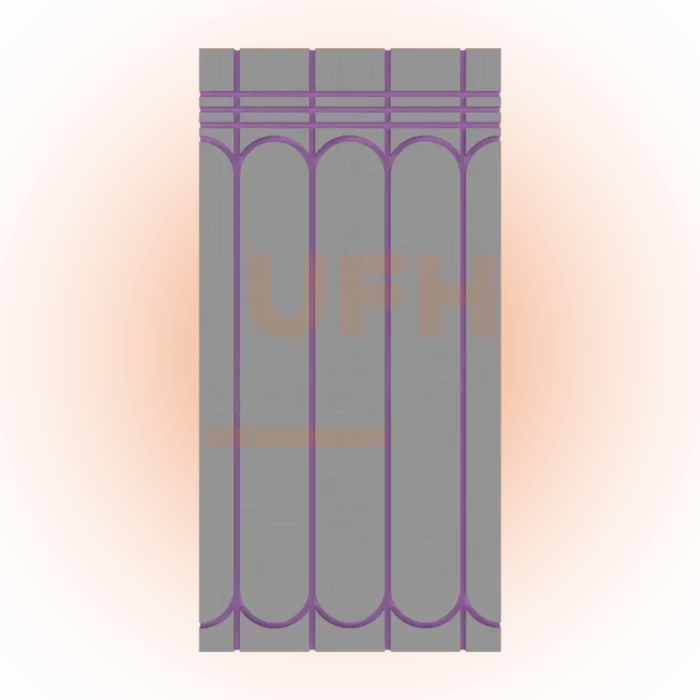

Tekwarm Lite Low Profile UFH Overlay Boards are high-quality, low-profile insulated underfloor heating (UFH) boards designed for efficient and speedy installation over a flat level subfloor. These boards boast a high compressive strength of 300 kPa, making them ideal for low profile UFH systems. With durable cement coatings on both faces, they are ready for direct application of tiles or wood flooring (on underlay). The board size is 1200mm x 600mm x 16mm, featuring grooves on one face to accommodate a 12mm diameter underfloor heating pipes, ensuring ease of installation with standard radius returns. Custom routed pipe layouts and patterns are also available.
Key Features:
– Low-profile insulated underfloor heating board
– High compressive strength of 300 kPa (kiloPascals)
– Durable cement coatings on both faces for direct application of tiles or wood flooring
– Board size: 1200mm x 600mm x 16mm
– Grooved face for easy installation of 12mm diameter underfloor heating pipes
– Suitable for new build or retrofit installations
– Standard pattern board usually available from stock
Installation Guidelines:
Timber Base: Use Tekwarm mechanical fixings and washers to secure the boards to the timber subfloor. Ensure the fixings are of appropriate length for the application.
Concrete Base: Adhere the Tekwarm boards to the concrete using a bed of combed tile adhesive (S1 or equivalent). In some cases, mechanical fixings may also be required depending on the substrate.
Finishing: In most applications, an additional board is not necessary, and flooring can be directly laid on the upper surface. Wood flooring requires a suitable underlay following the manufacturer’s instructions. Flooring grade tiles can be laid on a combed tile adhesive layer. For other finishes, use a separating layer of Tekwarm Overlay Board before installation.
Suitable For: Tekwarm Lite Low Profile UFH Boards are suitable for both new construction and retrofit installations. The standard pattern board is typically available from stock, ensuring quick access for your projects.
FAQs
Q: What is the size of Tekwarm Lite LP UFH Boards?
A: The board size is 1200mm x 600mm x 16mm.
Q: Can these boards be used with wood flooring?
A: Yes, the boards are suitable for the direct application of wood flooring (on underlay) using appropriate fixings.
Q: Are the boards compatible with both new build and retrofit installations?
A: Yes, Tekwarm Lite LP UFH Boards are suitable for both new construction and retrofit projects.
Q: What type of underfloor heating pipes can be used with these boards?
A: The boards feature grooves to suit 12mm diameter underfloor heating pipes.
Q: Do you offer custom routed pipe layouts and patterns?
A: Yes, we provide the option for custom routed pipe layouts and patterns as per your requirements.
Q: How should I install the boards on a concrete base?
A: The boards should be adhered to the concrete using a bed of combed tile adhesive (S1 or equivalent). In some cases, mechanical fixings may also be needed depending on the substrate.
Q: Can I lay flooring tiles directly on the boards?
– Yes, for most applications, an additional board is not required, and flooring tiles can be laid directly on the upper surface.
Q: Are Tekwarm mechanical fixings included with the boards?
A: The Tekwarm mechanical fixings and washers need to be purchased separately based on your application requirements.
Q: Do you offer other board sizes or thicknesses?
A: Currently, the Tekwarm Lite LP UFH Boards are available in the size and thickness mentioned above. Please contact us for custom requirements.
Q: What is the typical availability of the standard pattern board?
A: The standard pattern board is normally available from stock, ensuring quick and convenient access for your projects.
