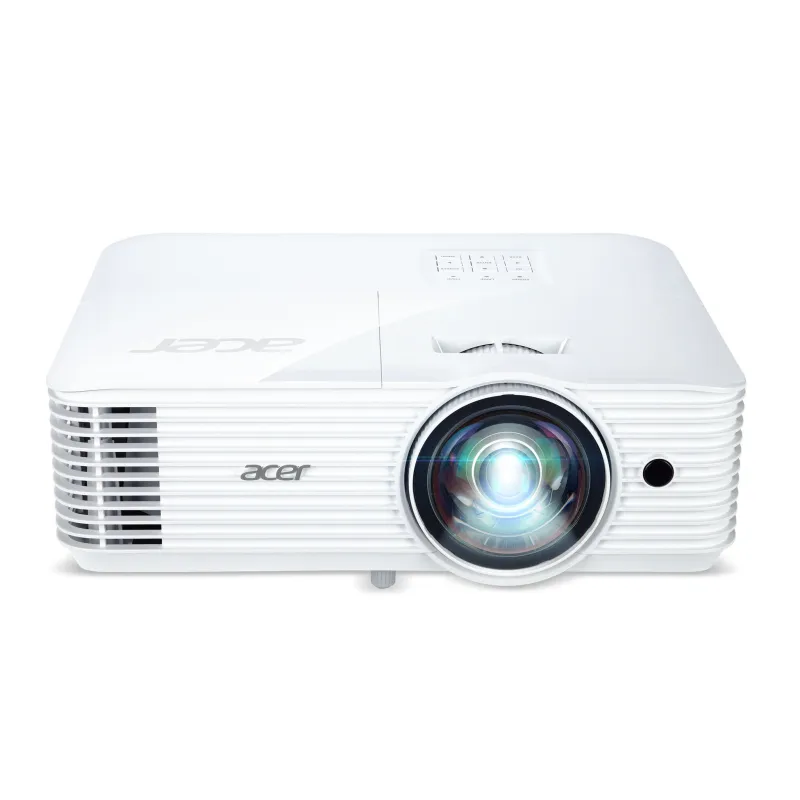

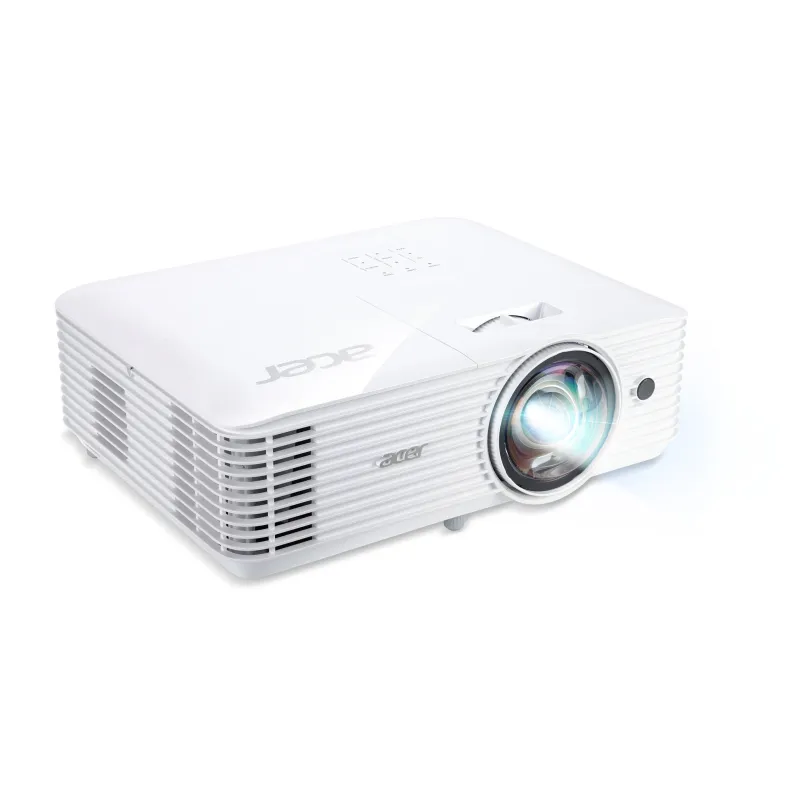

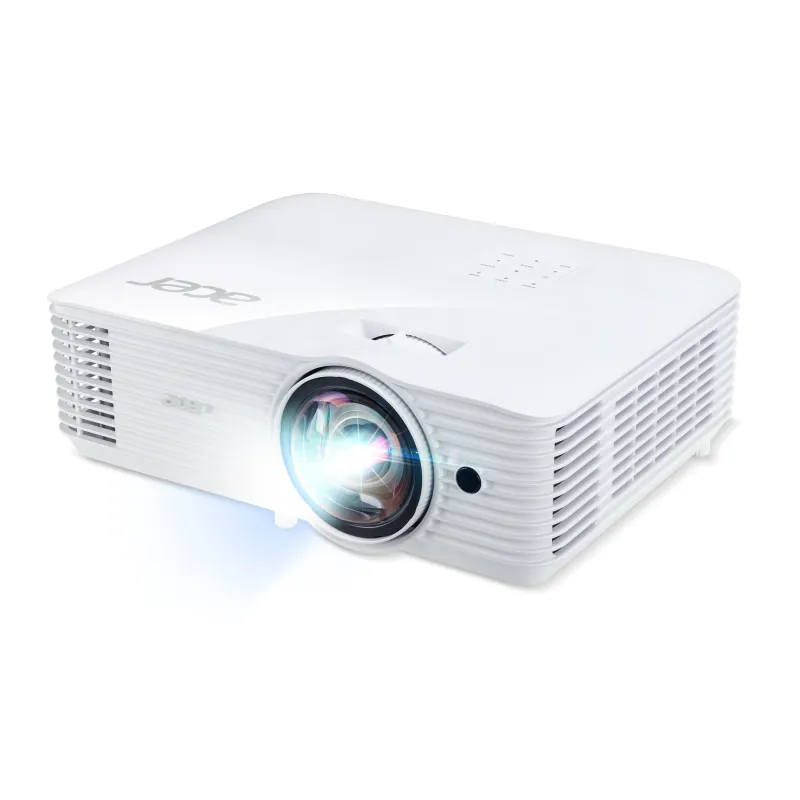

Acer Education S1386WH Standard throw projector 3600 ANSI lumens DLP 720p (1280×720) White
- Presentation Standard throw projector White
- DLP 3600 ANSI lumens
- Lamp 5000 h
- 720p (1280×720) 16:10 20000:1
- Screen size compatibility: 914.4 – 7620 mm (36 – 300″) Number of colours: 1.073 billion colours
- Zoom capability
- Ethernet LAN
- Built-in speaker(s) 15 W
- AC 270 W
Acer’s Education Series projectors portray clear, large images from either a distance, or when positioned conveniently close to the projection screen. This makes them ideal for use in education facilities or any smaller space. Their high resolution makes for clear and detailed big screen images, while color enhancement features deliver vivid hues.
| Projector | |
|---|---|
| Keystone correction, vertical | -40 – 40° |
| Horizontal scan range | 15 – 100 kHz |
| Vertical scan range | 24 – 120 Hz |
| Number of colours | 1.073 billion colours |
| Projection distance | 0.4 – 3.4 m |
| Screen size compatibility | 914.4 – 7620 mm (36 – 300″) |
| Supported aspect ratios | 4:3, 16:9 |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 20000:1 |
| Projector native resolution | 720p (1280×720) |
| Projection technology | DLP |
| Projector brightness | 3600 ANSI lumens |
| Light source | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Lamp power | 220 W |
| Lamp type | OSRAM |
| Service life of light source (economic mode) | 6000 h |
| Service life of light source | 5000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Throw ratio | 0.52 |
| Optical zoom | 1x |
| Digital zoom | 2x |
| Zoom capability | Yes |
| F-number (relative aperture) | 2.8 |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| 3D | No |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL, SECAM |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Mobile High-Definition Link (MHL) | No |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI version | 1.4a |
| HDMI connector type | Full-size |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Compatible operating systems | Mac, Windows |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Placement | Ceiling |
| Product colour | White |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input voltage | 120 – 230 V |
| Power consumption (typical) | 270 W |
| Power source | AC |
| General | |
|---|---|
| Product family | Education |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 80% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.1 kg |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
