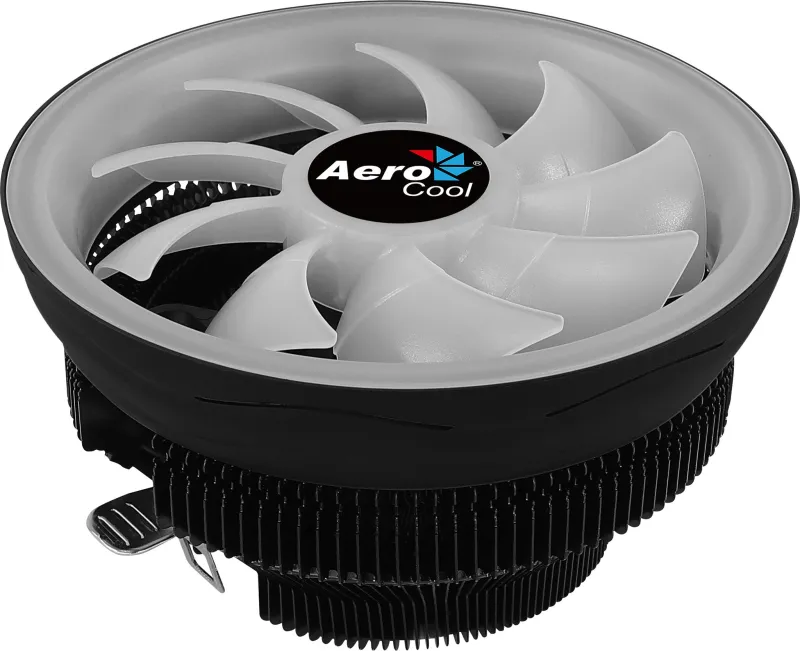

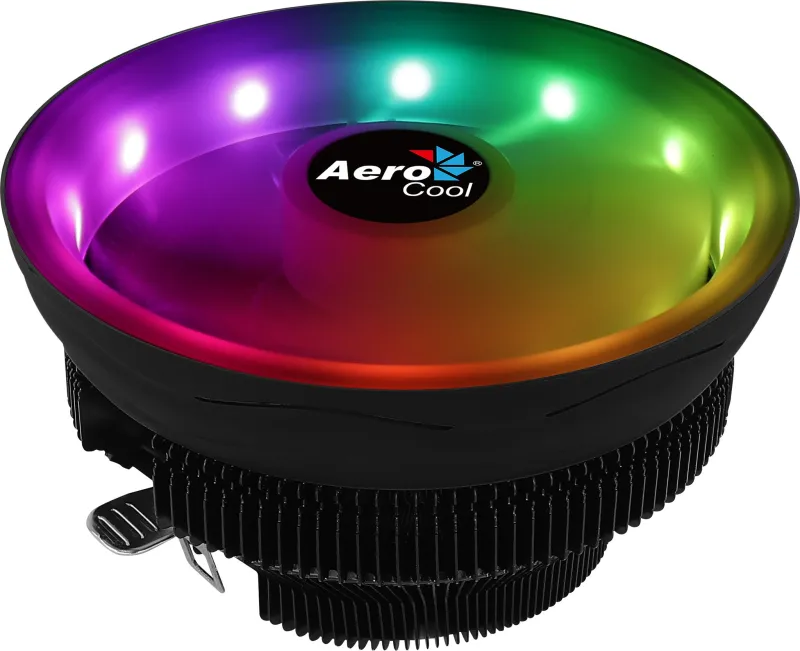

Aerocool Core Plus Processor Cooler 13.6 cm Black, White
- Built-in RGB LED lighting adds a stylish flair to your rig
- Compatible with Addressable RGB motherboards or hubs
- Top Down Cooling design allows for more efficient heat dissipation and higher compatibility with cases
- TDP (Thermal Design Power) up to 110W
- Black coating on fins increases heat dissipation area and improves efficiency of dissipation
- Upgraded high efficiency fins for maximum thermal performance
- Works with most current AMD and Intel motherboard designs. Not compatible with Intel 2011 and 2066
PWM air cooling solution with a stylish Addressable RGB LED design. Top Down Cooling design allows for more efficient heat dissipation. Compatible with Addressable RGB motherboards or hubs (H66F). Compatible with most current motherboard designs. Not compatible with Intel 2011 and 2066.

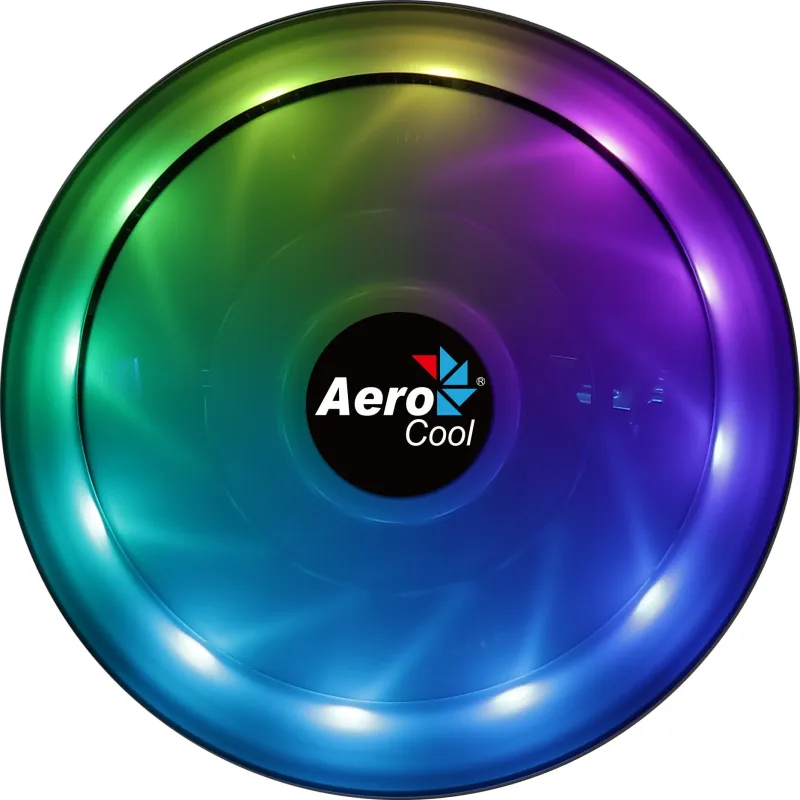

STYLISH RGB LED RING DESIGN
Comes equipped with an RGB LED Ring around the fan of the cooler and translucent fan blades, adding a stylish and dynamic touch to your rig.
ADDRESSABLE RGB COMPATIBLE
Access 16.8 million colors using compatible Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion) or hubs (H66F).
TOP DOWN COOLING DESIGN
Top Down Cooling design allows for more efficient heat dissipation and higher compatibility with cases.
PWM HIGH-PRESSURE FAN
120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.
HIGH EFFICIENCY FINS
Upgraded high efficiency fins for maximum thermal performance.
Black coating on fins allows for faster heat absorption, improving the efficiency of heat dissipation.
COMPATIBILITY
Works with most current AMD and Intel motherboard designs. Not compatible with Intel 2011 and 2066
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Bearing type | Hydraulic |
| Maximum air pressure | 1.41 mmH2O |
| Minimum air pressure | 0.53 mmH2O |
| Maximum airflow | 51.3 cfm |
| Minimum airflow (imperial) | 21.8 cfm |
| Noise level (high speed) | 25.4 dB |
| Noise level (low speed) | 14.5 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 600 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1 |
| Fan diameter | 13.6 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Aluminium |
| Product colour | Black, White |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 110 W |
| Rated current | 0.55 A |
| Starting voltage | 7 V |
| Rated voltage | 12 V |
| Power consumption (typical) | 6.6 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 136 x 136 x 83 mm |
