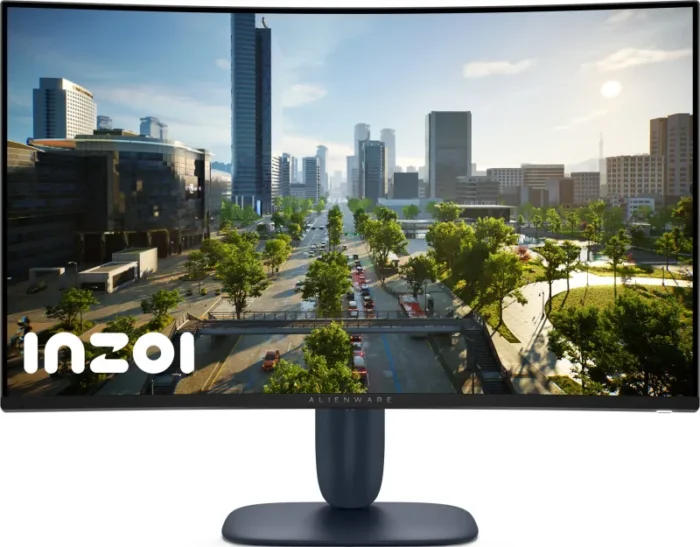

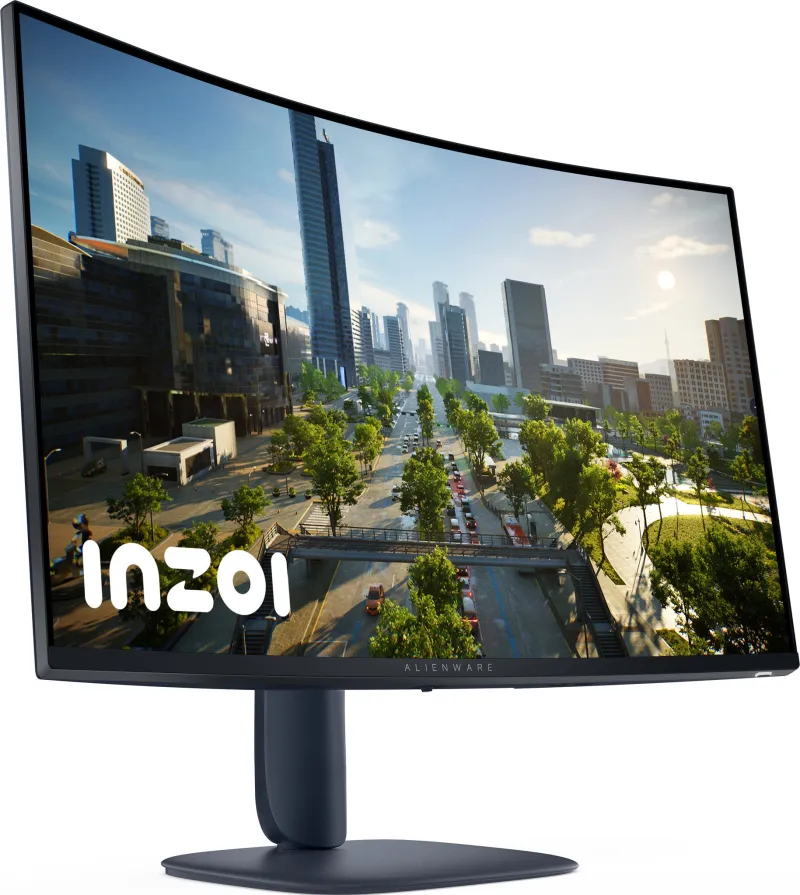

Alienware AW3225DM computer monitor 80 cm (31.5″) 2560 x 1440 pixels Wide Quad HD LCD Blue
- 80.0cm (31.5″) Wide Quad HD 2560 x 1440 Edge LED VA
- 4ms, 16:9, 400cd/m², 3000:1
- USB, HDMI, DisplayPort
Bring the action to life on a curved 32″ QHD gaming monitor featuring vivid colors and smooth visuals.
| Display | |
|---|---|
| Heat dissipation (typical) | 112.6 BTU/h |
| DCI-P3 coverage | 95% |
| Response time (extreme) | 1 ms |
| Dell ComfortView technology | Yes |
| Surface hardness | 3H |
| High Dynamic Range (HDR) technology | DisplayHDR 400 |
| High Dynamic Range (HDR) supported | Yes |
| Viewable size diagonal | 80 cm |
| Viewable size, vertical | 39.2 cm |
| Viewable size, horizontal | 69.7 cm |
| Vertical scan range | 48 – 180 Hz |
| Horizontal scan range | 30 – 285 kHz |
| Pixel density | 93 ppi |
| Pixel pitch | 0.2724 x 0.2724 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 180 Hz |
| Contrast ratio (typical) | 3000:1 |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1280 x 960, 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 4 ms |
| Display brightness (typical) | 400 cd/m² |
| Backlight type | Edge LED |
| LED backlight | Yes |
| Panel type | VA |
| HD type | Wide Quad HD |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 80 cm (31.5″) |
| Performance | |
|---|---|
| Windows operating systems supported | Windows 10, Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Feet colour | Blue |
| Front bezel colour | Black |
| Product colour | Blue |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP version | 1.4/2.3 |
| HDCP | Yes |
| Headphone out | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| On Screen Display (OSD) | Yes |
| Picture-in-Picture | Yes |
| Tilt angle range | -5 – 21° |
| Tilt adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Input current | 1.5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 90 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 33 W |
| Energy consumption (HDR) per 1000 hours | 39 kWh |
| Energy consumption (SDR) per 1000 hours | 33 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 12192 m |
| Operating altitude | 0 – 5000 m |
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.82 cm |
| Bezel width (top) | 8.2 mm |
| Bezel width (side) | 8.47 mm |
| Weight (without stand) | 6.58 kg |
| Height (without stand) | 418.7 mm |
| Depth (without stand) | 121.7 mm |
| Width (without stand) | 707.4 mm |
| Weight (with stand) | 9.19 kg |
| Height (with stand) | 583.3 mm |
| Depth (with stand) | 232 mm |
| Width (with stand) | 707.4 mm |
| Packaging data | |
|---|---|
| Package weight | 13.7 kg |
| Packaging content | |
|---|---|
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Cables included | DisplayPort, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Sustainability | |
|---|---|
| Doesn’t contain | Arsenic, Mercury, PVC/BFR |
| Other features | |
|---|---|
| Certification | TÜV Rheinland |
| Compliance certificates | RoHS |
| Picture-by-Picture (PbP) | Yes |
