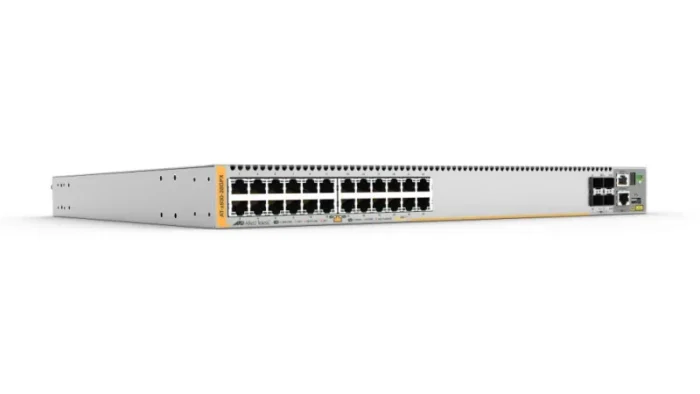

Allied Telesis x930-28GPX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
- 24 Gigabit ports with four 10 Gigabit uplinks
- Dual hot-swap power supplies for a fully resilient solution
- Long-distance stacking of up to 8 units supports distributed environments
- Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices
The Allied Telesis x930-28GPX features 24 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 2000 |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Latency (10 Gbps) | 2.6 µs |
| Latency (1 Gbps) | 3.6 µs |
| Throughput | 214.3 Mpps |
| Switching capacity | 2.88 Gbit/s |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
|---|---|
| Multicast MAC address table | 2000 entries |
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Noise level | 56 dB |
| Power | |
|---|---|
| Power consumption (typical) | 84 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 – 260 V |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 301 BTU/h |
| Operating altitude | 0 – 3048 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 44 mm |
| Depth | 420 mm |
| Width | 440 mm |
