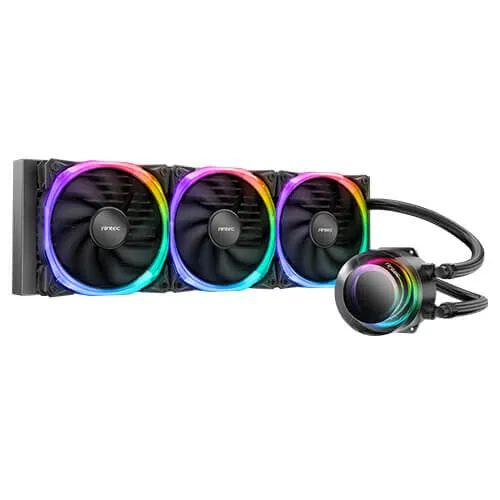

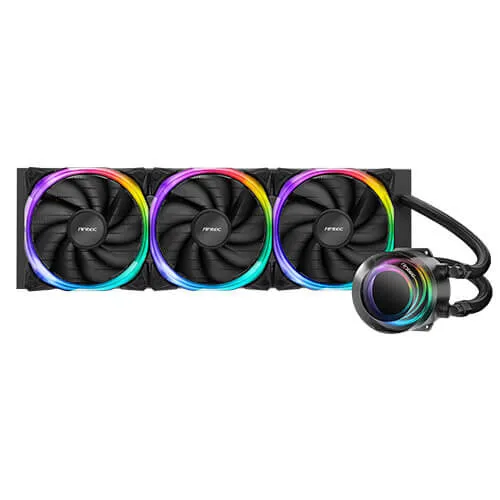

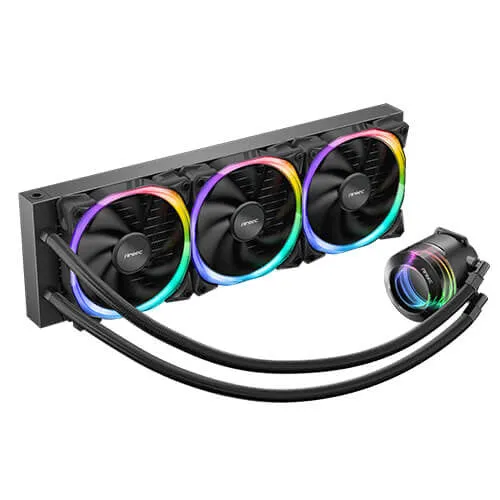

Antec VORTEX 360 ARGB Processor All-in-one liquid cooler Black
- Processor All-in-one liquid cooler
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4
- 57.93 cfm
- 120 x 120 x 25 mm
- Black
Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
| Performance | |
|---|---|
| Operating temperature (T-T) | -10 – 60 °C |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
| Pump connector | 3-pin |
| Pump noise level | 28 dB |
| Fan noise level (max) | 31.24 dB |
| Maximum airflow | 57.93 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4 |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| LED connector type | 3-pin |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Pump current | 250 mA |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump height | 4.85 cm |
| Pump width | 6.7 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 12 cm |
| Radiator width | 39.7 cm |
