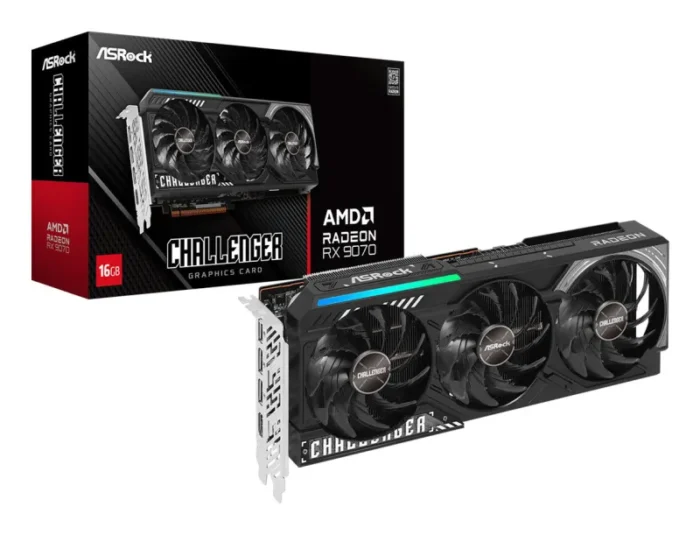

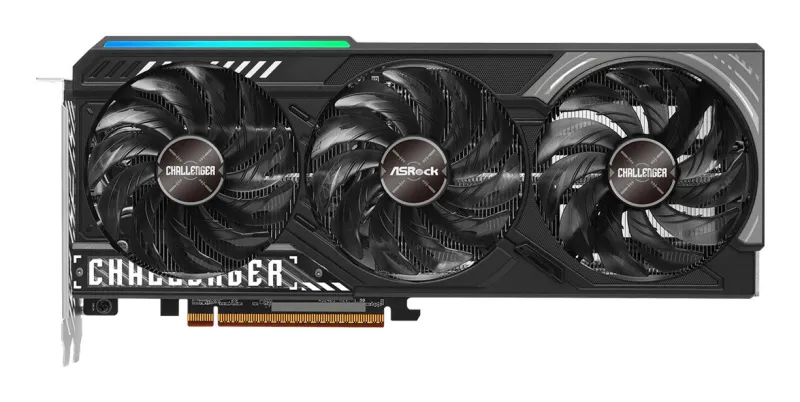

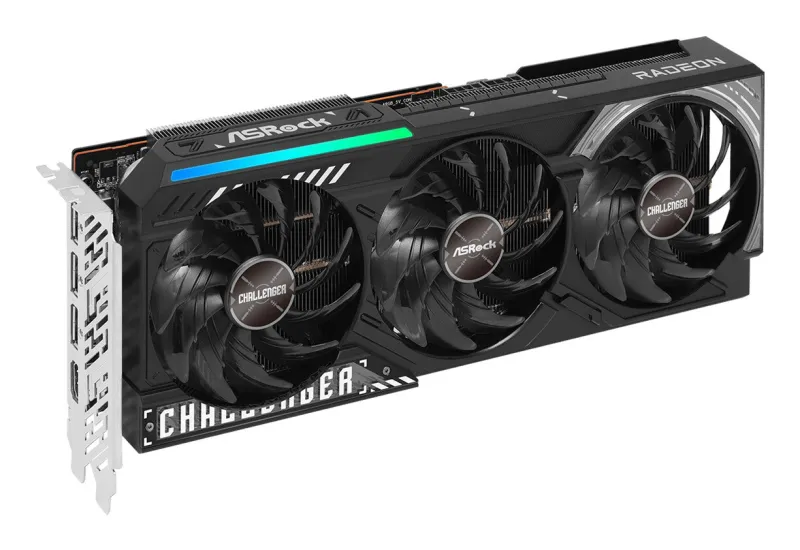

Asrock AMD Radeon RX 9070 Challenger 16GB GDDR6
- AMD Radeon RX 9070 16 GB GDDR6
- 7680 x 4320 pixels 256 bit 20 Gbit/s PCI Express 5.0
- HDMI ports quantity: 1 DisplayPorts quantity: 3
- DirectX version: 12 Ultimate OpenGL version: 4.6
- 2x 8-pin
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
| Processor | |
|---|---|
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| Processor boost clock speed (Gaming mode) | 2070 MHz |
| Processor boost clock speed | 2520 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 9070 |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 20 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1a |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 5.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 700 W |
| Weight & dimensions | |
|---|---|
| Height | 123 mm |
| Depth | 51 mm |
| Length | 290 mm |
| Weight | 918 g |
| Packaging data | |
|---|---|
| Package type | Box |
