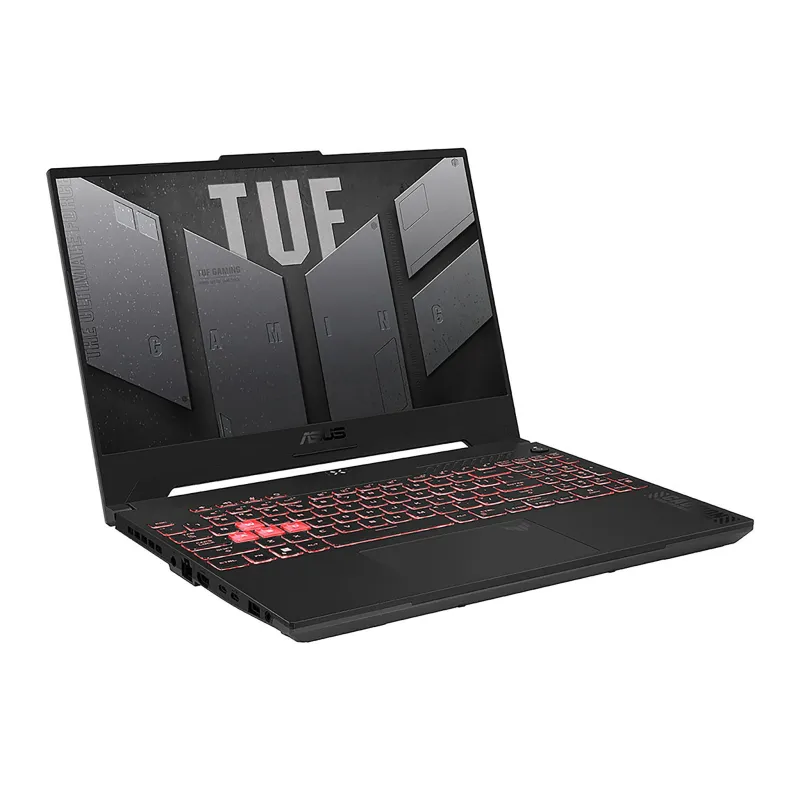

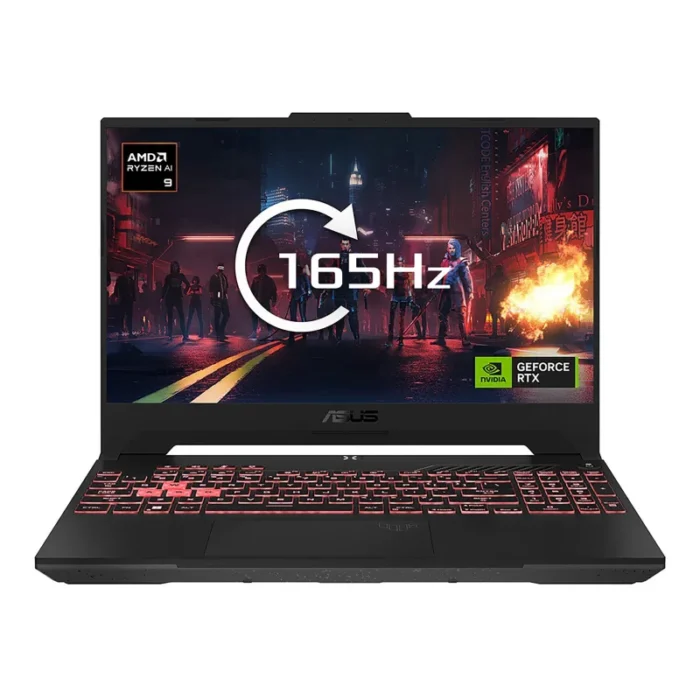

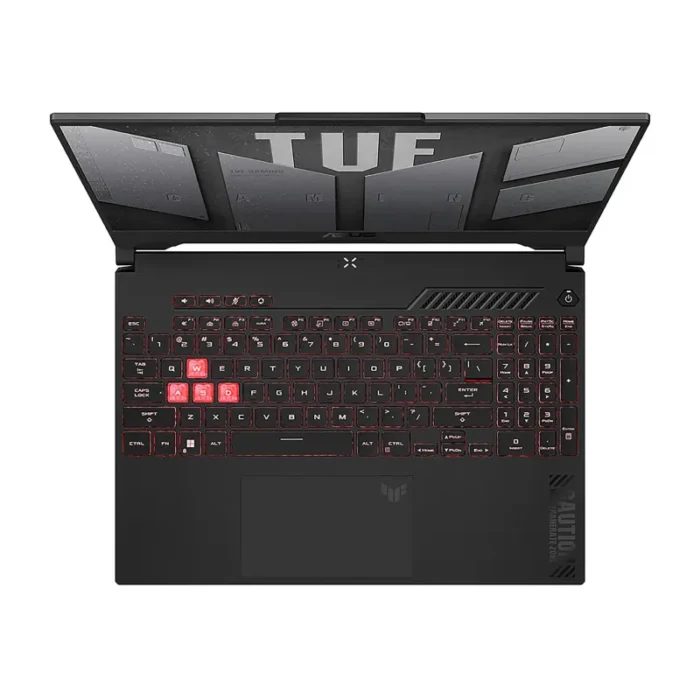

ASUS TUF Gaming A15 FA507UI-HQ008W AMD Ryzen™ 9 8945H Laptop 39.6 cm (15.6″) Wide Quad HD 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 6 (802.11ax) Windows 11 Home Grey
- Windows 11 Home 64-bit
- AMD Ryzen 9 8945H (16MB Cache, 4GHz)
- 39.6 cm (15.6″) Quad HD 2560 x 1440 IPS, NVIDIA GeForce RTX 4070 (8GB GDDR6)
- 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD
Mechanised endurance. Battlefield brilliance.
Featuring an AMD Ryzen™ R9-8945H Processor, an NVIDIA® GeForce RTX™ 4070 Laptop GPU, and a dedicated MUX Switch with NVIDIA® Advanced Optimus — prepare to crank the graphics settings in all the latest games. All that horsepower drives a gorgeous WQHD 165Hz panel with G-SYNC support, ensuring buttery smooth motion on screen. Keep your cool in the heat of extended gaming sessions with dual 84-blade Arc Flow Fans™ and a network of five heat pipes that efficiently wick heat out of the chassis.
| Design |
| Market positioning |
Gaming |
| Form factor |
Clamshell |
| Colour name |
Mecha Gray |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
165 Hz |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| HD type |
Wide Quad HD |
| Touchscreen |
No |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
4 GHz |
| Processor boost frequency |
5.2 GHz |
| Processor cores |
8 |
| Processor model |
8945H |
| Processor generation |
AMD Ryzen 8000 Series |
| Processor family |
AMD Ryzen™ 9 |
| Processor manufacturer |
AMD |
| Neural processor unit (NPU) |
| NPU performance up to |
16 TOPs |
| Total processor performance up to |
39 TOPs |
| Neural processor unit (NPU) |
AMD Ryzen AI |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| NVIDIA G-SYNC |
Yes |
| On-board graphics card model |
AMD Radeon 780M |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 4070 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Camera |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power adapter barrel connector |
6.0 mm |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 2×2 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Repairability index |
8.6 |
| Keyboard |
| Keyboard backlit zone |
1-zone RGB |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Trial software |
1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Fast charging time (50%) |
30 min |
| Battery capacity |
90 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
12 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
240 W |
| Security |
| Password protection type |
BIOS, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Sustainability |
| Sustainability certificates |
EPEAT Bronze, ENERGY STAR |
| Weight & dimensions |
| Height (rear) |
2.49 cm |
| Height (front) |
2.24 cm |
| Depth |
251 mm |
| Width |
354 mm |
| Weight |
2.2 kg |
| General |
| Product family |
TUF Gaming |
| Product series |
A15 |
