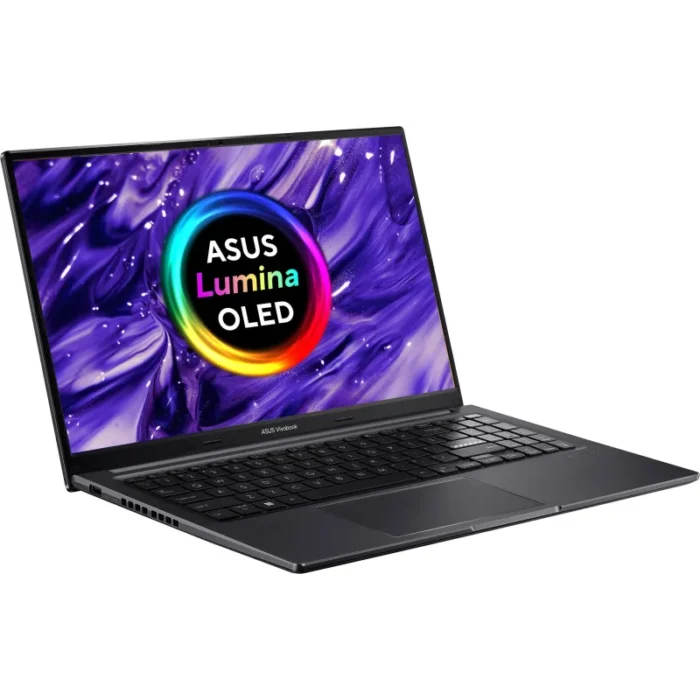

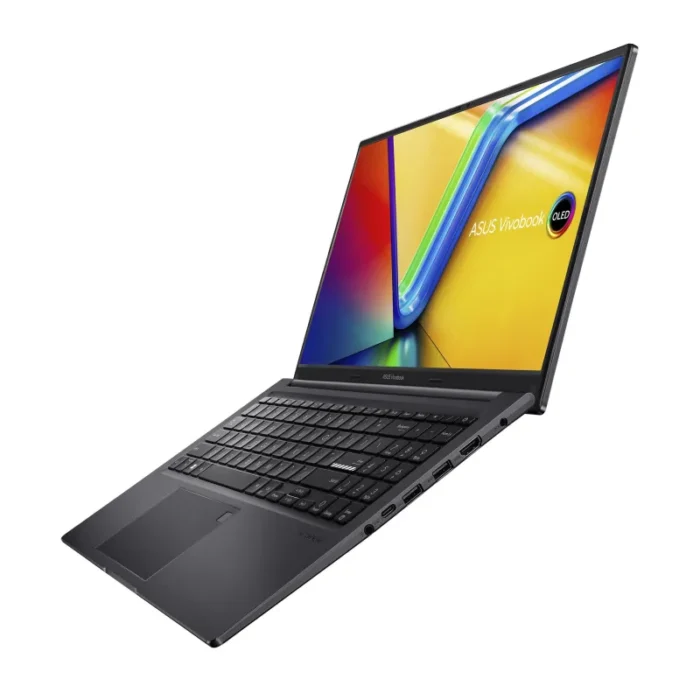

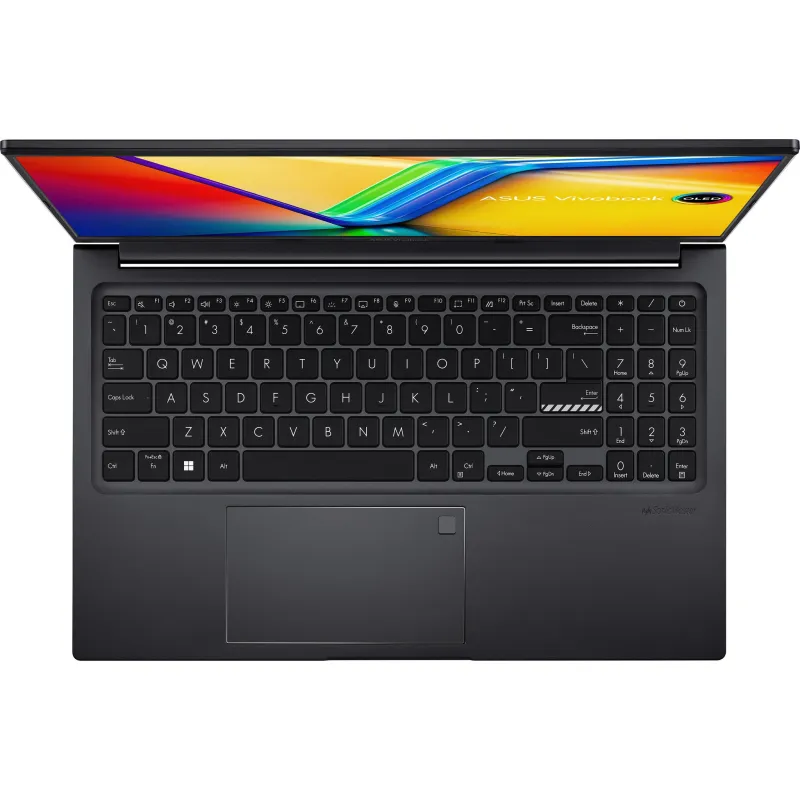

ASUS Vivobook 15 OLED M1505YA-L1312W AMD Ryzen™ 5 7430U Laptop 39.6 cm (15.6″) Full HD 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black
- Windows 11 Home
- AMD Ryzen 5 7430U Processor
- 15.6” FHD OLED NanoEdge display
- 8 GB DDR4 3200MHz memory
- 512 GB PCIe 3.0 SSD storage
- Treated with ASUS Antibacterial Guard Plus
- ASUS webcam shield for instant privacy
- 180° lay-flat hinge for diverse usage
- Stringently tested to US Military-grade durability
Brighten your vision
Everything is smoother with the powerful ASUS Vivobook 15 OLED, the feature-packed laptop with a brilliant 120 Hz OLED HDR display that has a cinema-grade 100% DCI-P3 gamut. And everything’s easier too, thanks to user-friendly features including a 180° lay-flat hinge, a physical webcam shield and dedicated function keys to turn your mic on or off. Your health is in safe hands with ASUS Antimicrobial Guard Plus protecting frequently-touched surfaces, and the bigger touchpad is now more finger-friendly. Enjoy the smooth power of Vivobook 15 OLED!
| Design |
| Market positioning |
Home |
| Housing material |
Plastic |
| Form factor |
Clamshell |
| Colour name |
Indie Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
HDR True Black 600 |
| High Dynamic Range (HDR) supported |
Yes |
| Contrast ratio (typical) |
1000000:1 |
| Display response rise/fall |
0.2 ms |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Maximum display brightness (HDR) |
600 cd/m² |
| Display surface |
Gloss |
| Native aspect ratio |
16:9 |
| Display number of colours |
1.073 billion colours |
| Panel type |
OLED |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
2.3 GHz |
| Processor boost frequency |
4.3 GHz |
| Processor cores |
6 |
| Processor model |
7430U |
| Processor family |
AMD Ryzen™ 5 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
16 GB |
| Memory slots |
1x SO-DIMM |
| Memory form factor |
On-board + SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 3.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon Graphics |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Audio system |
SonicMaster |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
1×1 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| Power adapter barrel connector |
4.5 mm |
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Keyboard |
| Numeric keypad |
Yes |
| Pointing device |
Touchpad |
| Software |
| Trial software |
1-month trial for new Microsoft 365 customers |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Battery capacity |
50 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| DC-in jack |
Yes |
| AC adapter output voltage |
19 V |
| AC adapter output current |
2.37 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
45 W |
| Security |
| Password protection type |
BIOS, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
No |
| Certificates |
| Compliance certificates |
REACH |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Height |
19.9 mm |
| Depth |
227.6 mm |
| Width |
356.8 mm |
| Weight |
1.7 kg |
| General |
| Product family |
Vivobook |
| Product series |
15 OLED |
| Packaging content |
| AC adapter included |
Yes |
