ATEN 4-Port USB 2.0 Extender Over LAN
- Extends USB transmission over a Gigabit Ethernet Local Area Network (LAN)
- ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Pre-paired networked configuration through MAC Address for simple installation. No pairing action required
- Up to 100m between extender and switch and between switches over CAT 5e/6/7 cables

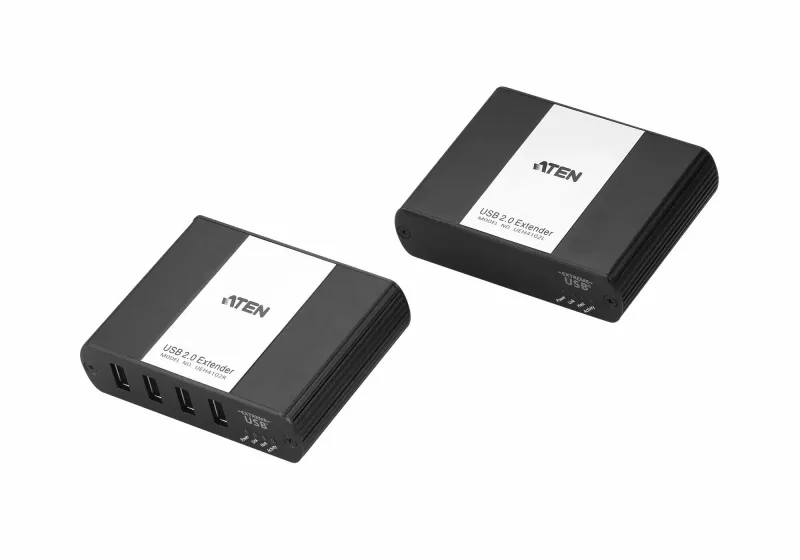

The UEH4102 4-port USB 2.0 Extender over LAN incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.

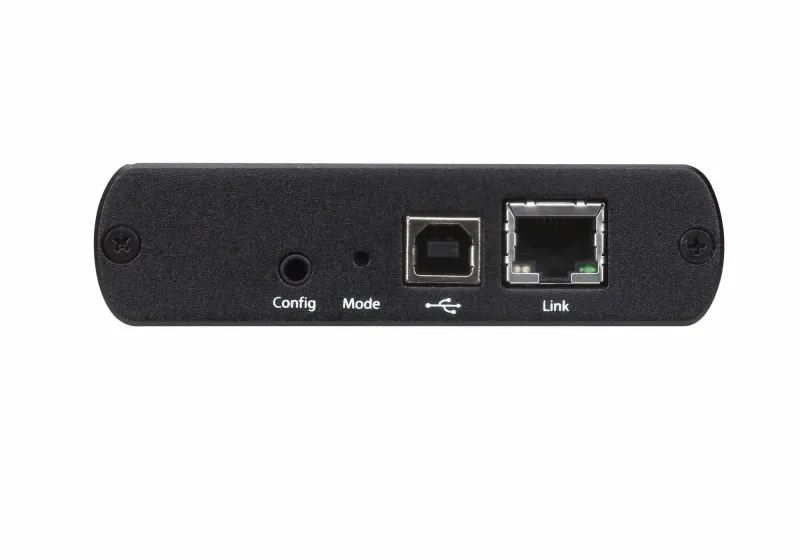

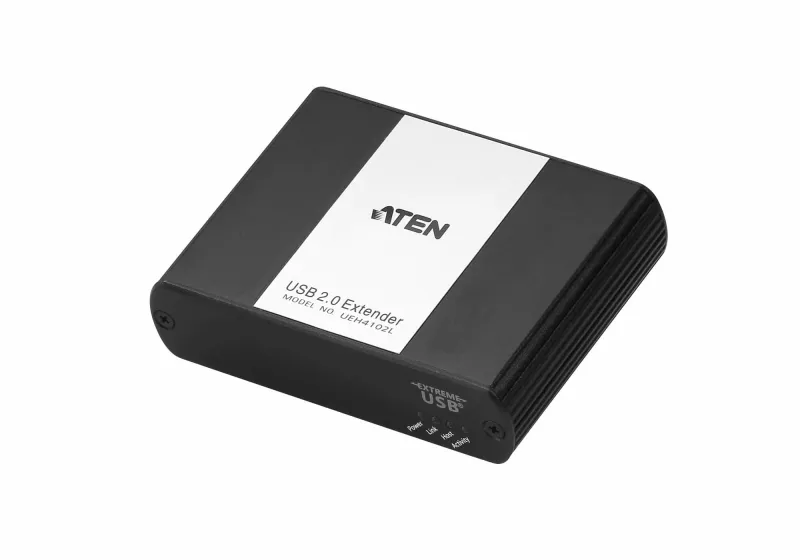

1x UEH4102L 4-Port USB 2.0 Cat 5 Extender over LAN (Local unit)
1x UEH4102R 4-Port USB 2.0 Cat 5 Extender over LAN (Remote unit)
1x 0AD9-1B05-30EG Power Adapter
1x LIN6-04U1-V1BG USB 2.0 Type-A to Type-B Cable
1x User Instructions
| Performance |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cable types supported |
Cat5, Cat6, Cat7 |
| Data transfer rate |
480 Mbit/s |
| Maximum transfer distance |
100 m |
| Type |
Network transmitter & receiver |
| Ports & interfaces |
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
5 |
| RJ-45 ports quantity (receiver) |
1 |
| RJ-45 ports quantity (transmitter) |
1 |
| Design |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Power |
| Output voltage |
5 V |
| External power adapter |
Yes |
| Power consumption (receiver) (max) |
15 W |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 80% |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
540 g |
| Height |
26 mm |
| Depth |
100 mm |
| Width |
76 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
USB |
| AC adapter included |
Yes |
| Packaging data |
| Package weight |
754 g |
| Package height |
160 mm |
| Package depth |
239 mm |
| Package width |
59 mm |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case gross weight |
4.22 kg |
| Master (outer) case height |
175 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case width |
250 mm |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case net weight |
2.7 kg |
