ATEN VGA/Audio Over Cat5 Extender With MK
- Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes
- Extends the distance between VGA source and VGA display
- Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of 30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m

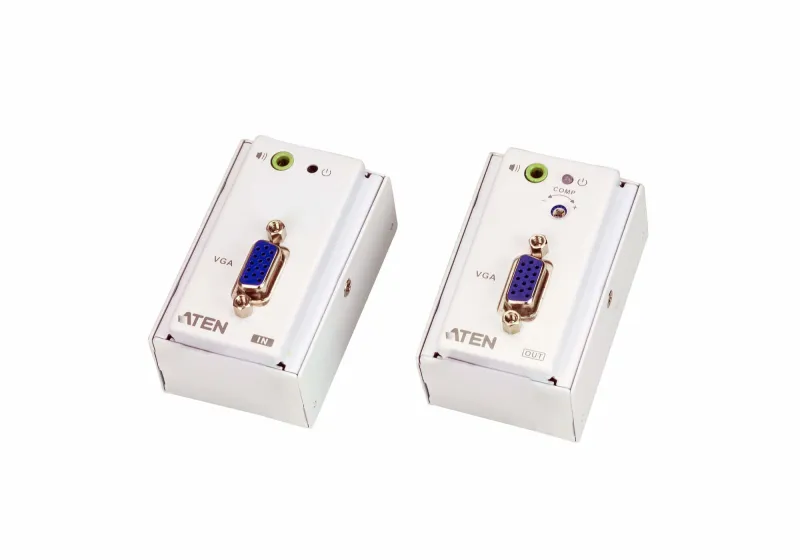

The VE157 VGA/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one-gang junction box. It extends VGA and audio signals up to 150 meters over a Cat 5e/6 cable and supports wide screen formats while ensuring excellent video quality.

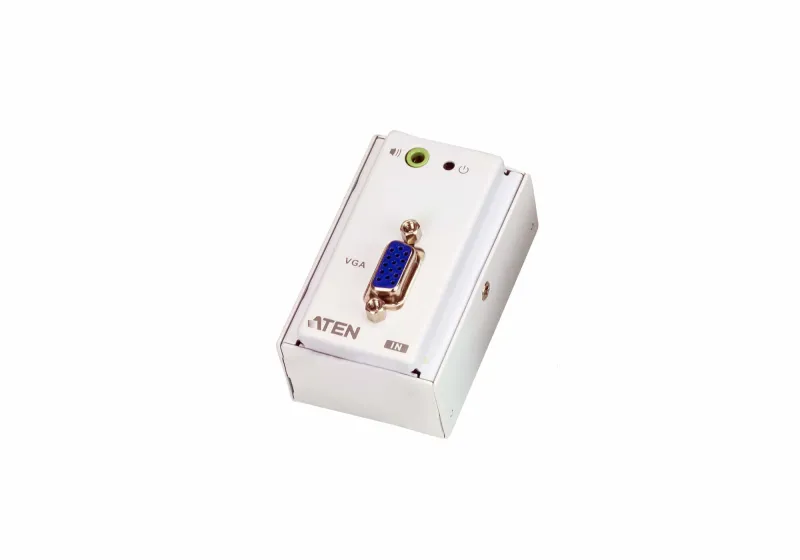

1x VE157 VGA/Audio Cat 5 Transmitter with MK Wall Plate

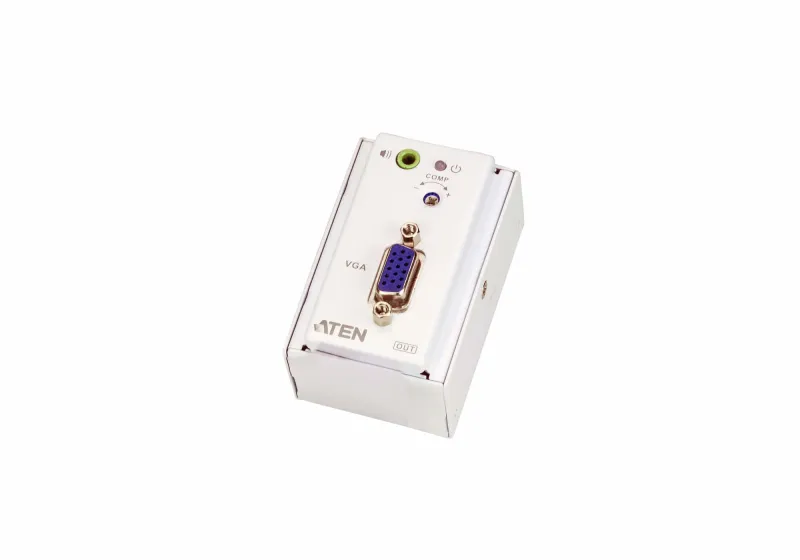

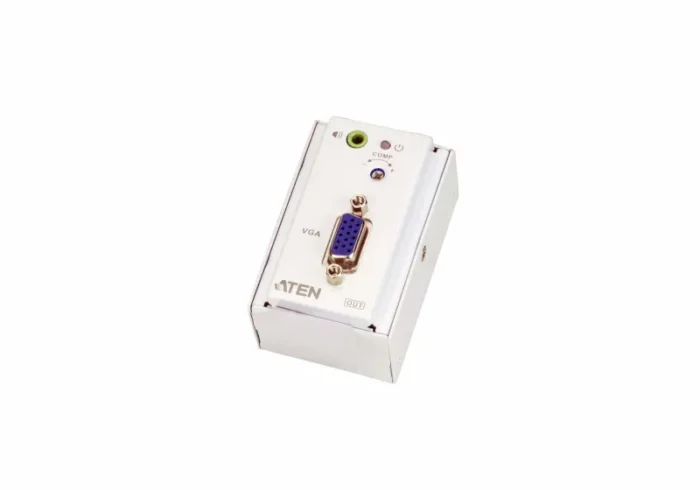

1x VE157 VGA/Audio Cat 5 Receiver with MK Wall Plate
1x Terminal Block Connector
1x 0AD6-1909-06EG Power Adapter
2x MK type Wall Plate Covers
8x Screw Covers
1x Screw kit
1x User Instructions
| Features |
| Product colour |
White |
| Resolution |
1920 x 1200 pixels |
| Impedance |
100 Ω |
| Supported graphics resolutions |
1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Material |
Metal |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Electrostatic Discharge (ESD) protection |
Yes |
| Audio system |
stereo |
| Maximum transfer distance |
150 m |
| Cable types supported |
Cat5e, Cat6 |
| Maximum resolution |
1920 x 1200 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
| Audio input |
1 |
| Audio output |
1 |
| VGA (D-Sub) ports quantity |
2 |
| Video in |
1 |
| Video out |
1 |
| VGA (D-Sub) input ports |
1 |
| VGA (D-Sub) output ports |
1 |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Power |
| External power adapter |
Yes |
| Power consumption (receiver) (max) |
0.95 W |
| Power consumption (transmitter) (max) |
1.65 W |
| Operating voltage (receiver) |
9 V |
| Operating voltage (transmitter) |
9 V |
| Operational conditions |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Weight & dimensions |
| Transmitter weight |
180 g |
| Transmitter dimensions (WxDxH) |
44.4 x 68.6 x 42.8 mm |
| Receiver weight |
180 g |
| Receiver dimensions (WxDxH) |
44.4 x 68.6 x 42.8 mm |
| Weight |
445 g |
| Packaging data |
| Package weight |
606 g |
| Package height |
160 mm |
| Package depth |
239 mm |
| Package width |
59 mm |
| Quantity per pack |
2 pc(s) |
| Packaging content |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case net weight |
2.23 kg |
| Master (outer) case gross weight |
3.45 kg |
| Master (outer) case height |
175 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case width |
250 mm |
