Axis 01959-007 Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
- Autotracking 2 and orientation aid; HDTV 1080p with 32x optical zoom; Lightfinder 2.0; OptimizedIR (250 m/820 ft range); TPM, FIPS 140-2 level 2 certified

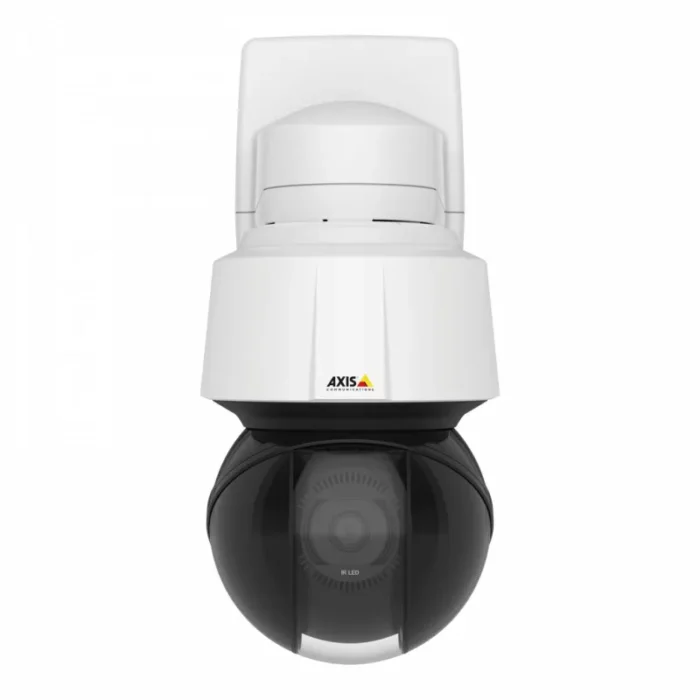

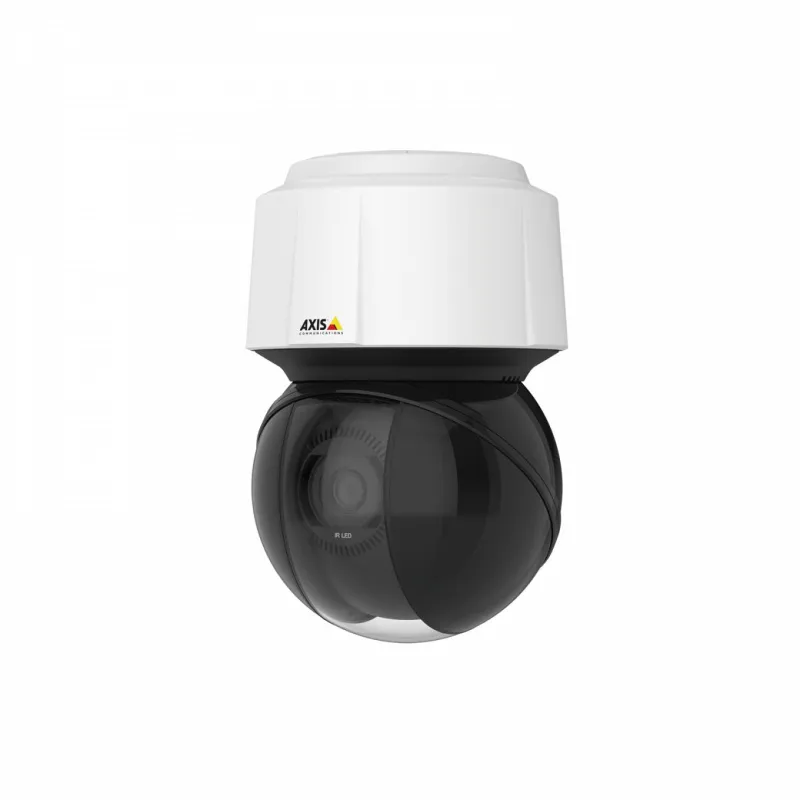

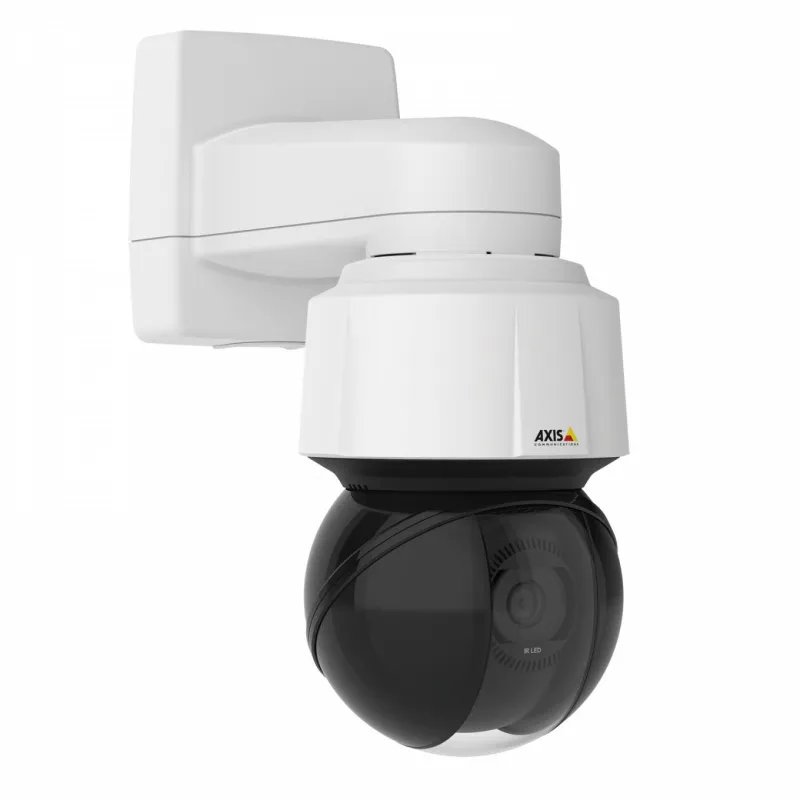

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Number of languages | 11 |
| Processor model | ARTPEC-7 |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Tour recording | Yes |
| Auto-tracking | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK08, IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/66500 – 2 s |
| Pan speed | 700 °/sec |
| Pan range | 0 – 360° |
| Tilt speed | 500 °/sec |
| Tilt angle range | 20 – 90° |
| Lens viewing angle, vertical | 34.9 – 1.3 |
| Lens viewing angle, horizontal | 58.3 – 2.4 |
| Minimum illumination | 0.01 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Maximum aperture number | 4 |
| Minimum aperture number | 1.4 |
| Auto focus | Yes |
| Focal length range | 4.3 – 137.6 mm |
| Digital zoom | 12x |
| Optical zoom | 32x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 250 m |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Video streaming | Yes |
| Frame rate | 60 fps |
| Supported video modes | 1080p |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Audio system | 2-way |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Alert notification type | |
| Pixel counter | Yes |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 37 W |
| Power consumption (max) | 51 W |
| Power consumption (typical) | 13.5 W |
| AC input voltage | 100 – 240 V |
| Power source type | AC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -30 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3 kg |
| Diameter | 16.5 cm |
| Height | 241 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | PVC |
| Warranty period | 5 year(s) |
