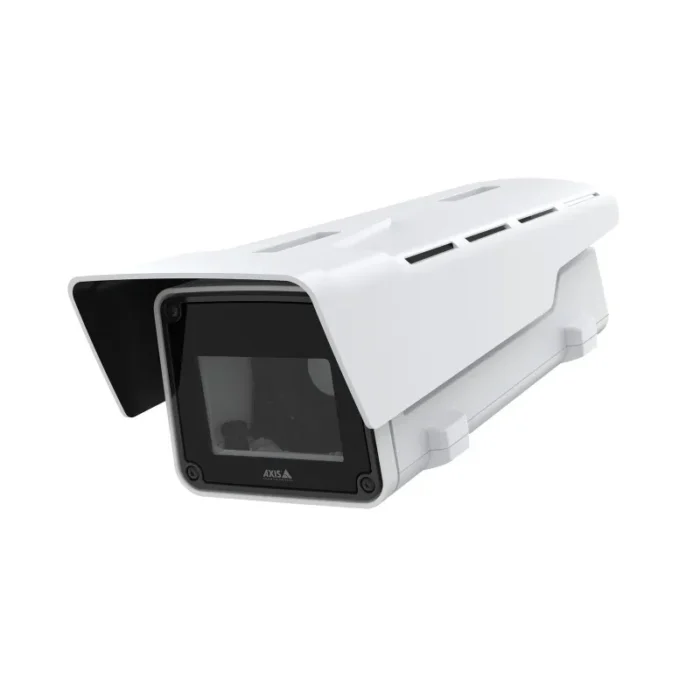

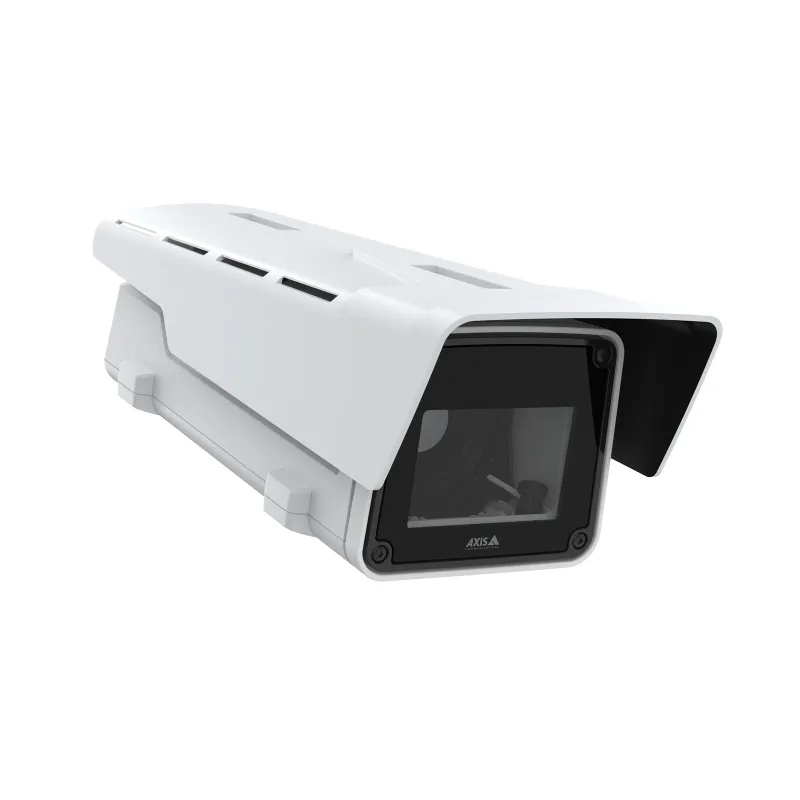

Axis 02168-031 security camera Box IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
- Built-in cybersecurity features; Exceptional images with 1/1.8” sensor; Ready to customize for specific needs; Support for analytics with deep learning; Support for i-CS lens
With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656-BE delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and applications based on deep learning on the edge. And AXIS Object Analytics provides highly nuanced object classification. With built-in cybersecurity features, it prevents unauthorized access and safeguards your system. This outdoor-ready barebone unit comes without lens and mounting, but with a variety of lenses, mounting options, and IR illumination kits, you can create a unique camera to meet your needs.
Performance |
Certification |
CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN 50121-4,IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835,KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
Number of languages |
12 |
Alarm input/output |
Yes |
Day/night mode |
Yes |
Wide Dynamic Range (WDR) |
Yes |
PTZ modes |
Digital PTZ |
PTZ control |
Yes |
Connectivity technology |
Wired |
Placement supported |
Indoor & outdoor |
Type |
IP security camera |
Design |
IK code |
IK10 |
International Protection (IP) code |
IP66, IP67 |
Product colour |
White |
Mounting type |
Ceiling/wall |
Form factor |
Box |
Camera |
Camera shutter speed |
1/47500 – 1 s |
Minimum illumination |
0.05 lx |
Camera tilt control |
Yes |
Camera pan control |
Yes |
Image sensor |
Progressive scan |
Yes |
Optical sensor size |
25.4 / 1.8 mm (1 / 1.8″) |
Number of sensors |
1 |
Sensor type |
CMOS |
Lens system |
Zoom capability |
Yes |
Number of lenses |
4 |
Night vision |
Night vision |
Yes |
Video |
Image quality adjustment |
Brightness, Contrast, Saturation |
Privacy masking |
Yes |
Image stabilizer |
Yes |
Bit rate control |
Variable Bit Rate (VBR) |
Video streaming |
Yes |
Frame rate |
60 fps |
Video recording |
Yes |
Video compression formats |
H.264, H.265 |
Total megapixels |
4 MP |
Maximum resolution |
2688 x 1512 pixels |
Audio |
Audio detection |
Yes |
Built-in microphone |
Yes |
Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
Network |
Quality of Service (QoS) support |
Yes |
Networking standards |
IEEE 802.3at |
Bluetooth |
No |
Wi-Fi |
No |
Ethernet LAN |
Yes |
Storage |
Internal memory |
2048 MB |
Flash memory |
8194 MB |
Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Card reader integrated |
Yes |
Built-in HDD |
No |
Ports & interfaces |
Ethernet LAN (RJ-45) ports |
1 |
Security |
Video motion detection |
Yes |
Active tampering alarm |
Yes |
IP address filtering |
Yes |
HTTPS encryption |
Yes |
Digest authentication |
Yes |
Security algorithms |
802.1x RADIUS |
Alert notification type |
E-mail |
Pixel counter |
Yes |
Password protection |
Yes |
Power |
Power consumption (max) |
25.5 W |
Power consumption (typical) |
11.2 W |
Power source type |
PoE |
Operational conditions |
Storage relative humidity (H-H) |
5 – 95% |
Operating relative humidity (H-H) |
10 – 100% |
Storage temperature (T-T) |
-40 – 65 °C |
Operating temperature (T-T) |
-40 – 60 °C |
Weight & dimensions |
Weight |
3.3 kg |
Height |
182 mm |
Depth |
159 mm |
Width |
404 mm |
Packaging content |
Number of cameras |
1 |
