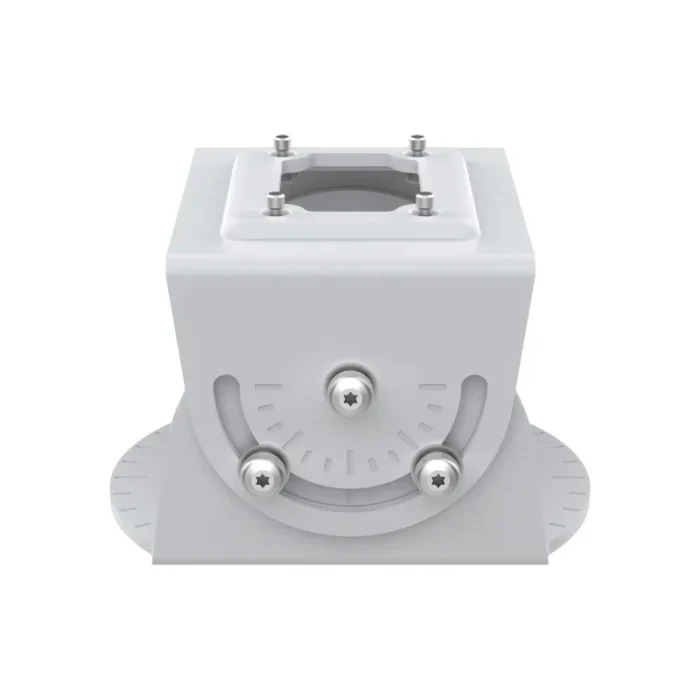

Axis 02384-001 security camera accessory Mount
- Alleviates vibrations; Coating in corrosion resilient material; Designed for demanding situations; Pivot mount for more stability; Robust, IK10

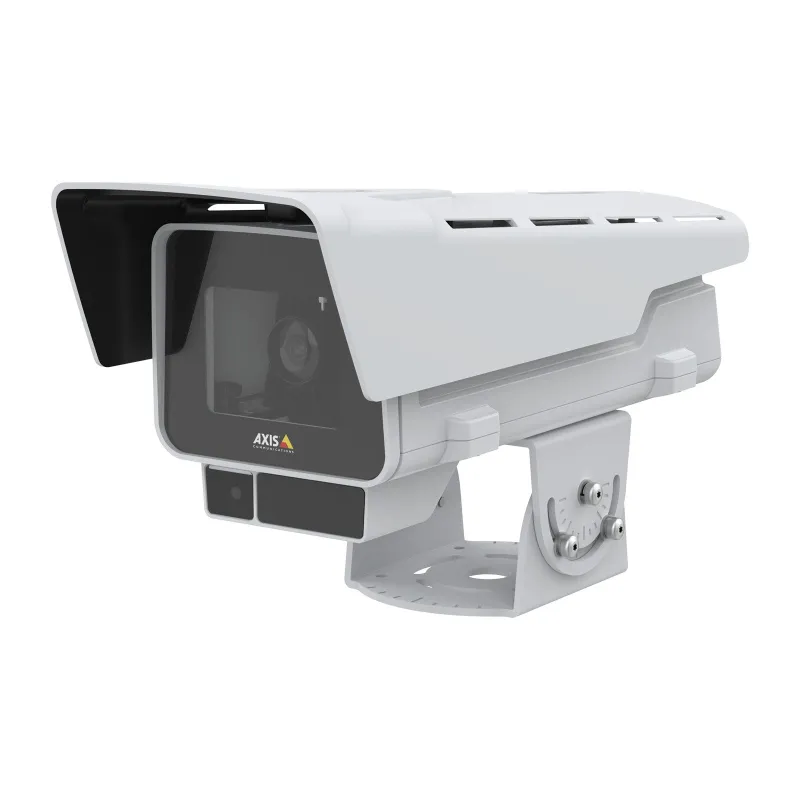

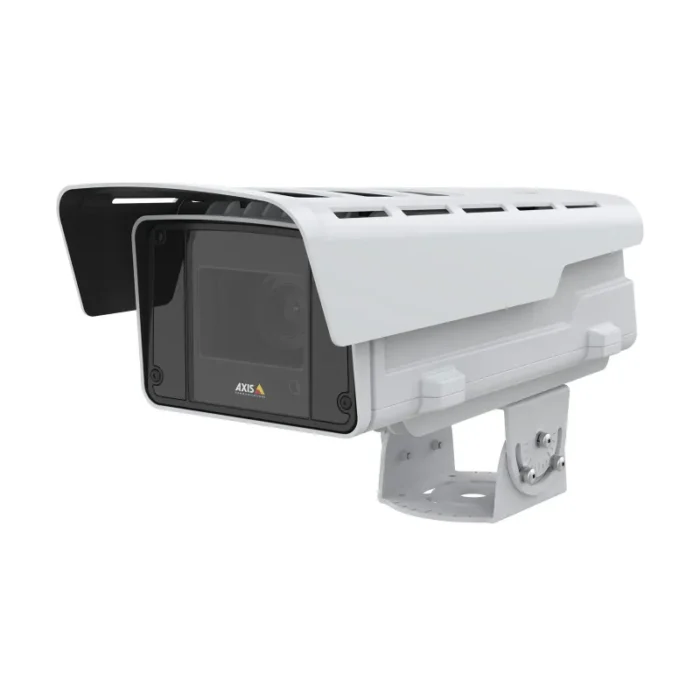

AXIS TQ1501-E Crane and Traffic Mount is a great mount for reducing vibrations and offering more stability to your camera installations in demanding situations, such as mounting on cranes or traffic lights. It’s robust and corrosion resistant with its IK10- and NEMA 4X-ratings. The mount can be tilted up to 45 degrees.
| Features |
| Certification |
IK10IEC 60068–2–6, IEC 60068–2–27IEC/EN 60529 IP66/IP67, NEMA 250 4X ,IEC 60721-3-3 3M3 IEC 60721-3-3 3M4 IEC 60721-3-3 3M6 |
| Housing material |
Aluminium |
| Product colour |
White |
| Compatibility |
P13-E/LE Q16-LET92ET92G20T93F T91B47 P |
| Brand compatibility |
Axis |
| Placement supported |
Universal |
| Type |
Mount |
| Ergonomics |
| Tilt angle range |
0 – 45° |
| Weight & dimensions |
| Weight |
530 g |
| Width |
136 mm |
| Depth |
95 mm |
| Height |
142 mm |
| Logistics data |
| Harmonized System (HS) code |
85299020 |
