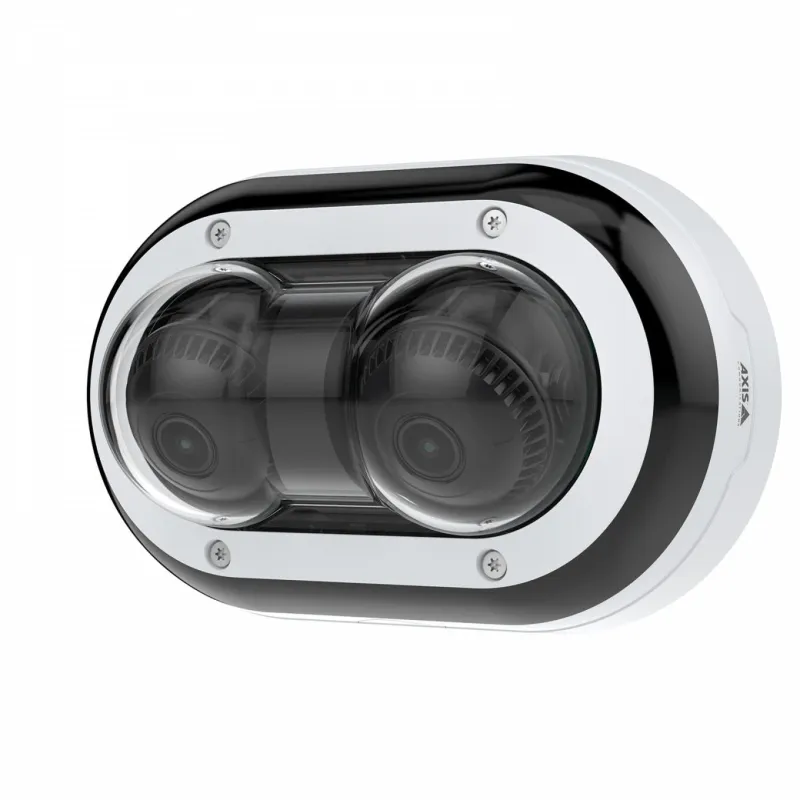

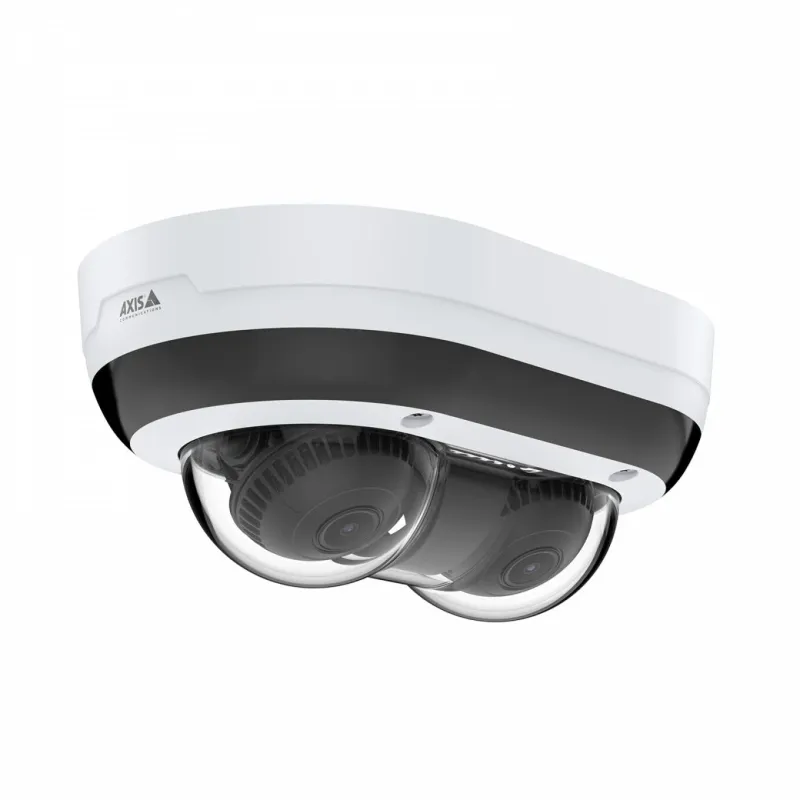

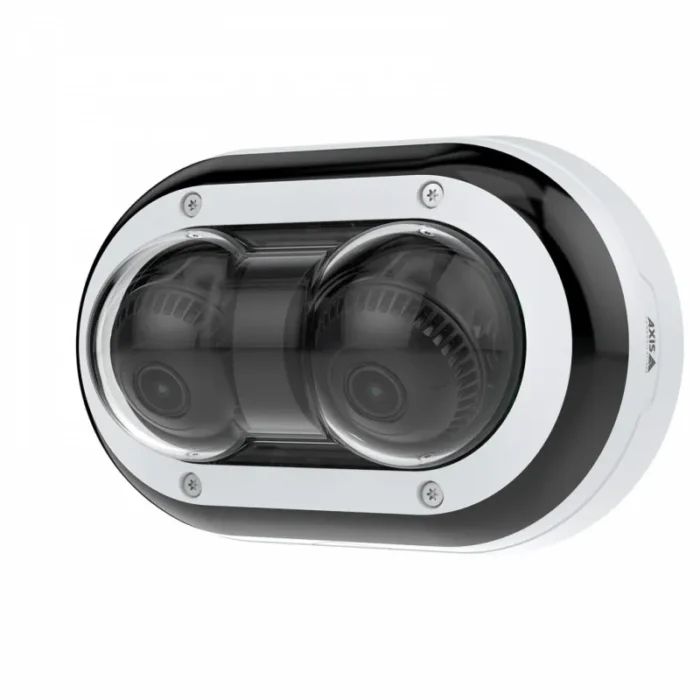

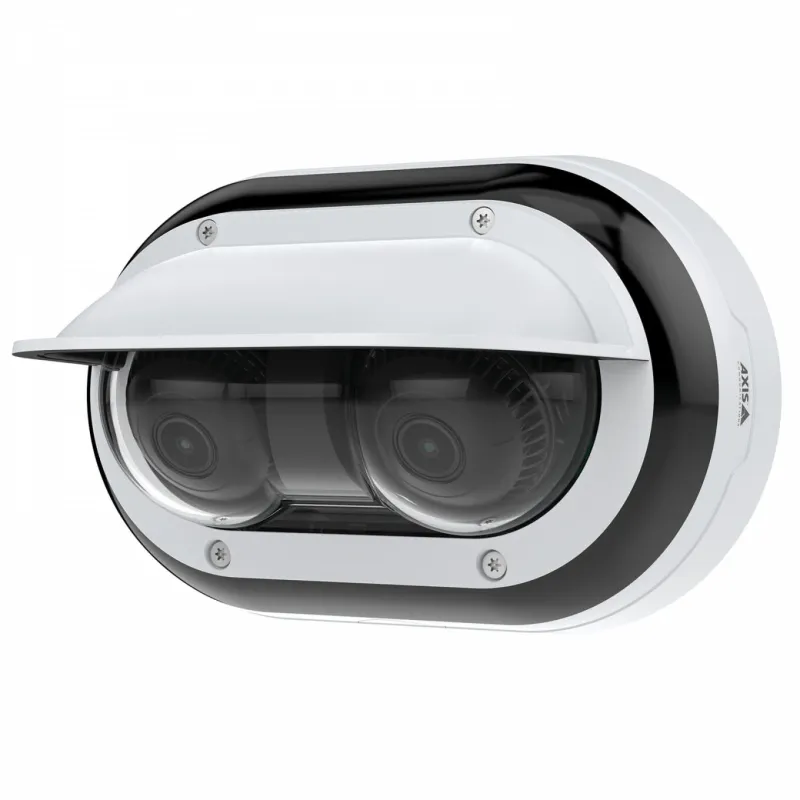

Axis 02415-001 security camera Bulb IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
- 2*2 MP, multidirectional camera, with one IP address; 2.5x zoom; 360° IR illumination; Axis Lightfinder and Forensic WDR; Support for analytics with deep learning on both sensors
This dual-sensor, multidirectional camera offers 2*2 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
| Performance | |
|---|---|
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Bulb |
| Camera | |
|---|---|
| Camera shutter speed | 1/20000 – 1.5 s |
| Pan range | -100 – 110° |
| Tilt angle range | -75 – 75° |
| Lens viewing angle, diagonal | 131 – 45° |
| Lens viewing angle, vertical | 55 – 22° |
| Lens viewing angle, horizontal | 107 – 39° |
| Angle of rotation | 170° |
| Panoramic camera | |
|---|---|
| Minimum illumination (panoramic camera) | 0.1 lx |
| Camera shutter speed (panoramic camera) | 1/20000 – 1.5 s |
| Optical sensor size (panoramic camera) | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type (panoramic camera) | CMOS |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Auto focus | Yes |
| Focal length range | 3.3 – 8.1 |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Video streaming | Yes |
| Frame rate | 60 fps |
| Supported video modes | 1080p |
| Supported graphics resolutions | 640 x 360, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Live view | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| IP address filtering | Yes |
| Security algorithms | HTTPS |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -30 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 975 g |
| Height | 88 mm |
| Depth | 208 mm |
| Width | 133 mm |
| Packaging content | |
|---|---|
| Number of cameras | 2 |
| Other features | |
|---|---|
| Doesn’t contain | BFR, PVC |
