Axis Q1806-LE Bullet IP security camera Indoor & outdoor 2880 x 1620 pixels Wall
- Outstanding image quality in 4 MP
- PoE out to power an additional device
- Analytics with deep learning
- Optical image stabilization
- Axis Edge Vault safeguards the device

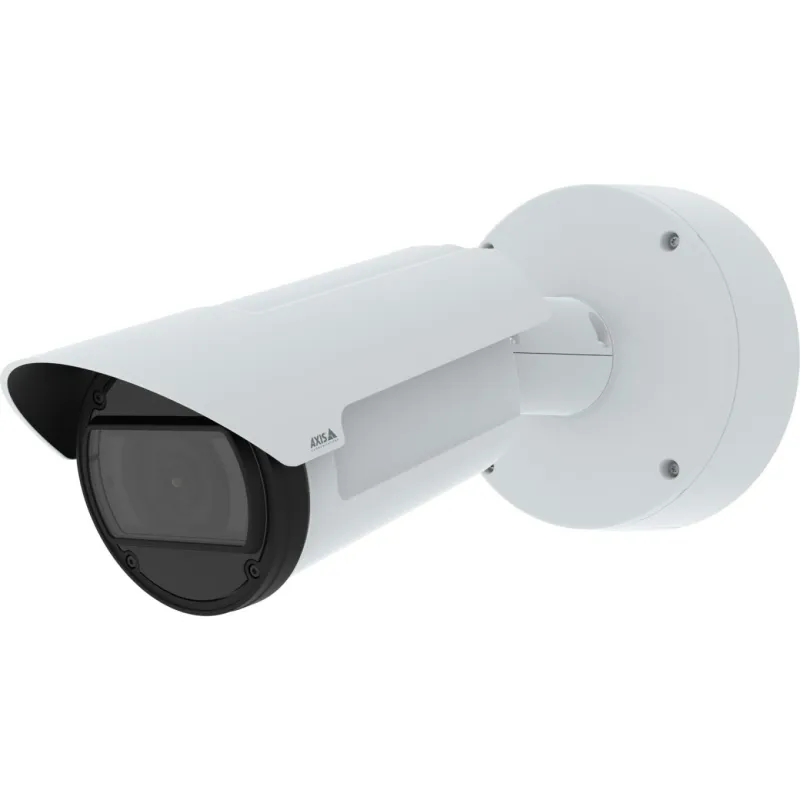

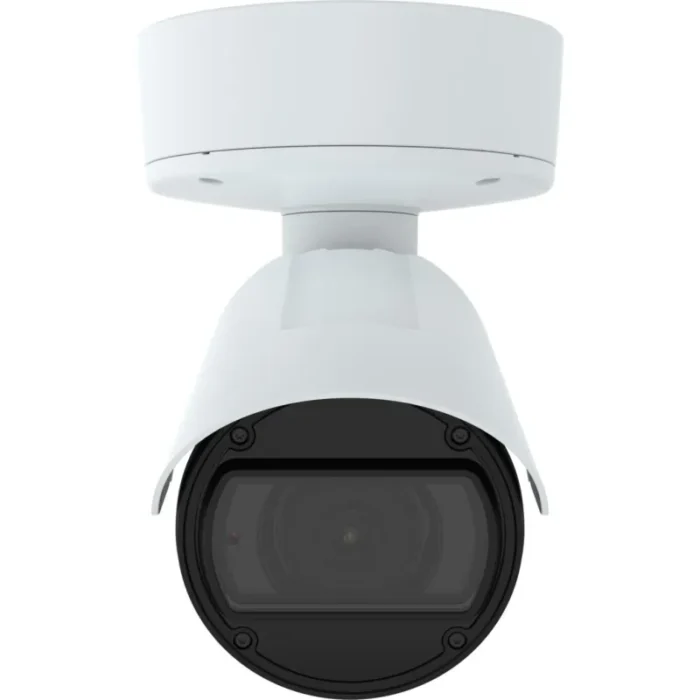

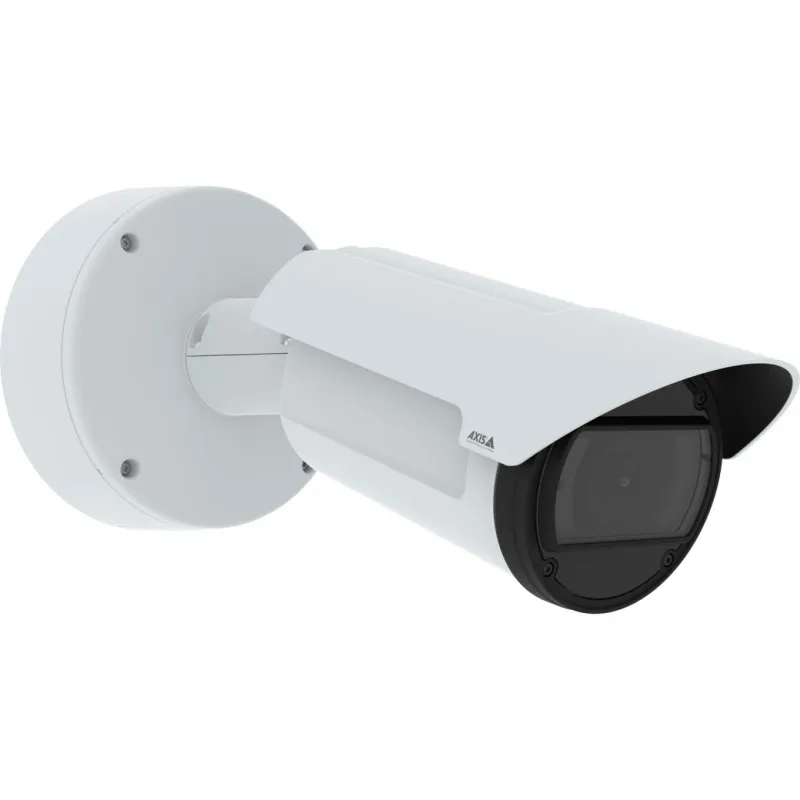

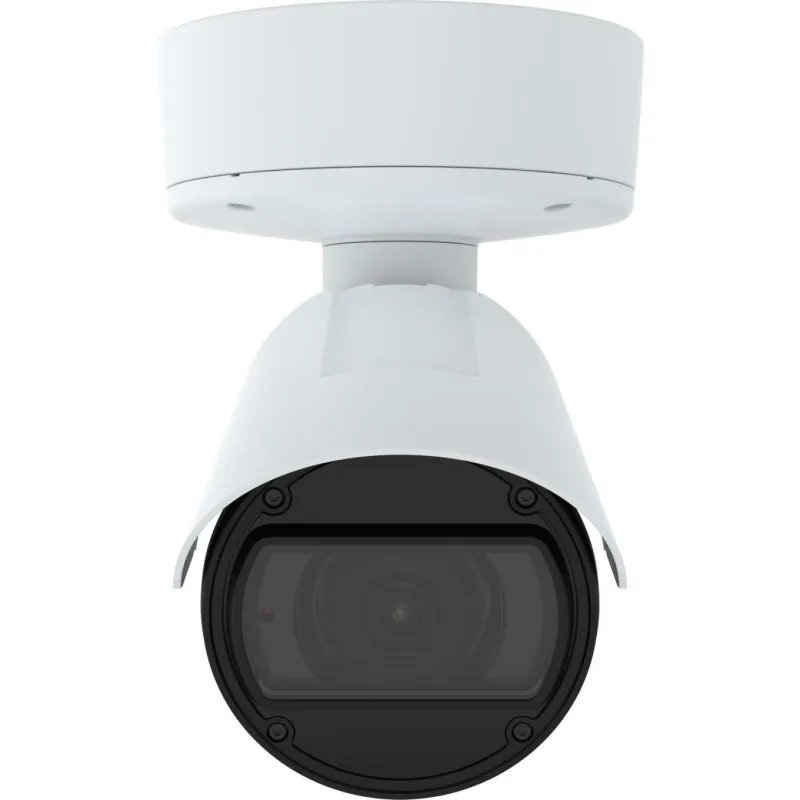

AXIS Q1806-LE Bullet Camera
This high-performance bullet camera offers 4 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.
First-class at any distance
With 32x optical zoom, AXIS Q1806-LE can be mounted much further from the scene and still deliver outstanding image quality. With OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 100 m (328 ft) without the need for extra lighting. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene. Furthermore, optical image stabilization (OIS) ensures stable images even in low-light situations.
Cost-effective and secure
This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE out, it can power other devices such as speakers and strobe sirens. Plus, edge-to-edge technology allows speaker pairing. Thanks to Axis Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements. Enclosed in a robust aluminum casing, this impact-resistant camera can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Additionally, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
Deep learning analytics
Built on ARTPEC-8, AXIS Q1806-LE features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before – on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Thanks to AXIS Object Analytics it’s possible to detect and classify moving objects. Furthermore, with support for ACAP version 4, you can add tailor-made applications based on deep learning on the edge available from Axis and our partners.
| Performance | |
|---|---|
| Certification | UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Protection features | Impact resistant |
| Housing material | Aluminium, Glass |
| Product colour | Black, White |
| Mounting type | Wall |
| Form factor | Bullet |
| Camera | |
|---|---|
| Camera shutter speed | 1/143000 – 2 s |
| Camera pixel size | 2 µm |
| Pan range | -180 – 180° |
| Tilt angle range | 0 – 90° |
| Lens viewing angle, vertical | 39 – 1.3° |
| Lens viewing angle, horizontal | 60 – 2.3° |
| Angle of rotation | 360° |
| Minimum illumination | 0.02 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 1.2 m |
| Identify distance (tele) | 273.2 m |
| Detect distance (wide) | 87.7 m |
| Detect distance (tele) | 2732.1 m |
| Observe distance (wide) | 34.8 m |
| Observe distance (tele) | 1084.2 m |
| Recognize distance (wide) | 17.5 m |
| Recognize distance (tele) | 546.4 m |
| Identify distance (wide) | 8.8 m |
| Maximum aperture number | 4 |
| Minimum aperture number | 1.4 |
| Focal length range | 4.3 – 137 mm |
| Optical zoom | 32x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 100 m |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 90 fps |
| Supported graphics resolutions | 1280 x 800 (WXGA), 2880 x 2160 |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels | 4 MP |
| Maximum resolution | 2880 x 1620 pixels |
| Audio | |
|---|---|
| Audio detection | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Network | |
|---|---|
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Networking standards | IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| ROM capacity | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Line crossing detection, Moving object, Vehicle detection |
| Digest authentication | Yes |
| Alert notification type | |
| Pixel counter | Yes |
| Password protection | Yes |
| Management features | |
|---|---|
| Remotely operated | Yes |
| Power | |
|---|---|
| Power consumption (max) | 51 W |
| Power consumption (typical) | 14.6 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -40 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.2 kg |
| Height | 183 mm |
| Depth | 411 mm |
| Width | 183 mm |
| Sustainability | |
|---|---|
| Compliance certificates | REACH, RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | PVC/BFR |
