Axis TU8004 Midspan
- Midspan
- Brand compatibility: Axis
- Housing material: Plastic
- Ethernet LAN
- Power source type: PoE 90 W

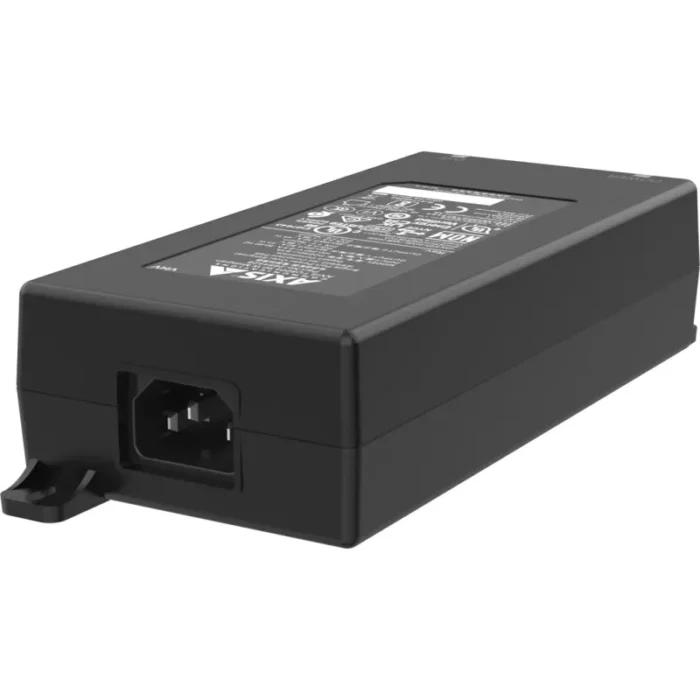

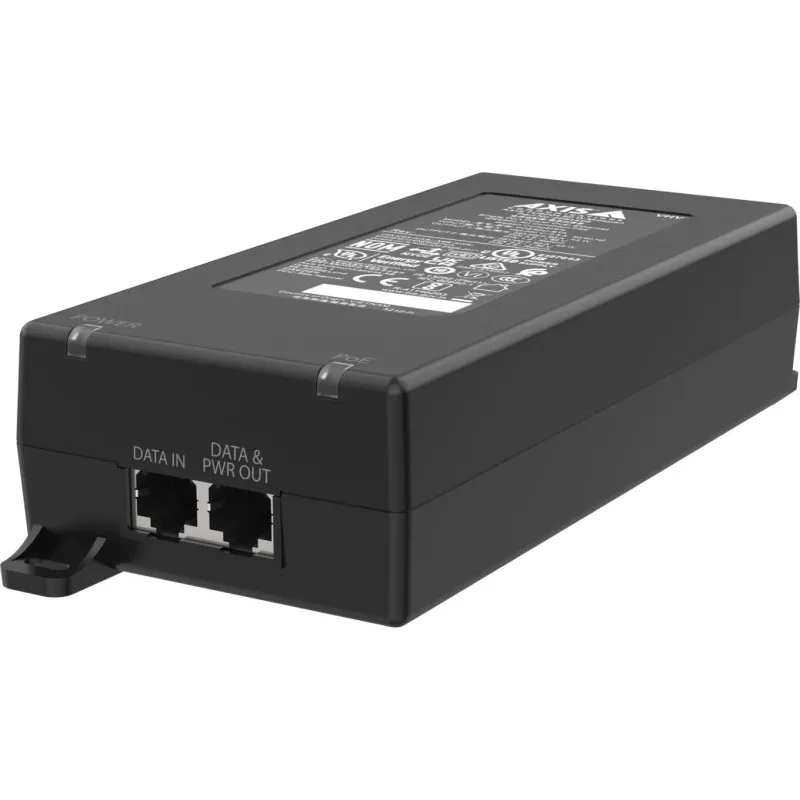

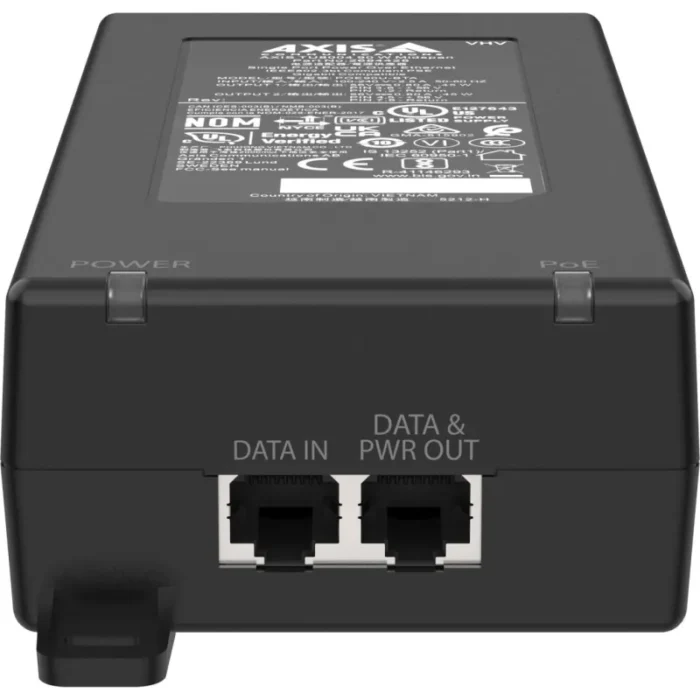

AXIS TU8004 90 W Midspan
AXIS TU8004 is a single port 90 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.
| Features | |
|---|---|
| Certification | IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Networking standards | IEEE 802.3af, IEEE 802.3bt |
| Housing material | Plastic |
| Product colour | Black |
| Brand compatibility | Axis |
| Type | Midspan |
| Ports & interfaces | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
| Number of inputs | 1 inputs |
| Number of outputs | 1 outputs |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 91.7 W |
| Power consumption (typical) | 64.3 W |
| Output voltage | 57 V |
| Input frequency | 50/60 Hz |
| Input voltage | 100 – 240 V |
| Rated power | 90 W |
| Weight & dimensions | |
|---|---|
| Weight | 500 g |
| Width | 80 mm |
| Depth | 166 mm |
| Height | 44 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -20 – 65 °C |
| Technical details | |
|---|---|
| Doesn’t contain | Halogen, PVC |
