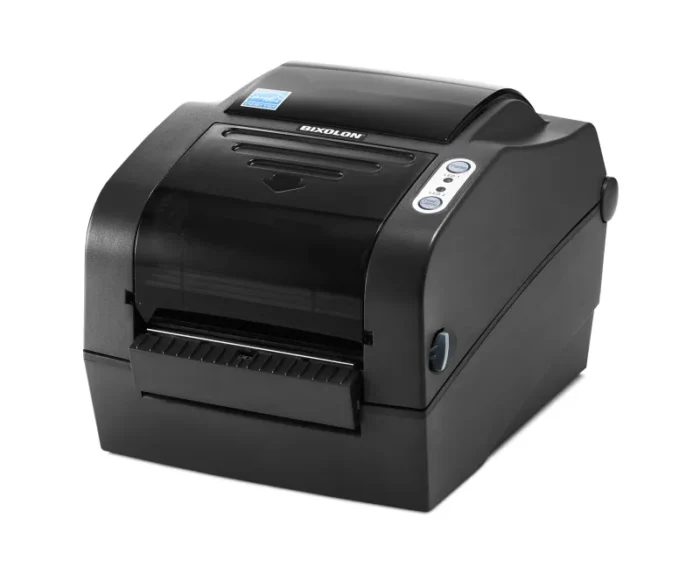

Bixolon SLP-TX423EG label printer Direct thermal / Thermal transfer 300 x 300 DPI 127 mm/sec Wired Ethernet LAN
- Direct thermal / Thermal transfer
- 300 x 300 DPI
- Maximum printing width: 10.6 cm Print speed: 127 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
- Connectivity technology: Wired
- USB port Ethernet LAN
- 2.35 kg
– Compact desktop printer for 74 m ribbon.
– Label printer for Android mobile devices.
– Wireless shipping label printer.
– Wristband printer.
– 1D and 2D Barcode printer.
Flexible to Use.
– Compatible with Android-based smart devices.
– Triple interface supported: USB + Serial + Parallel.
– Optional Ethernet and WLAN supported (USB dongle type).
Outstanding Form Factor.
– Fast printing speed up to 7 ips (178 mm/sec).
– Quick data processing through powerful memory.
– Compact design for 74m ribbon.
– Energy-efficient product.
Intelligent Function.
Smart Media Detection is Bixolon’s world-class technology that detects label length and media types such as gap media, black mark media, and short length media paper. Intelligent Leap-over™ detects empty label and automatically leaps to the next label.
Premium-level Compatibility.
Fully compatible with market-leading programming languages.
User-friendly Design.
– Various type of media sensor supported.
– Easy paper loading with adjustable paper guide.
– Simple to change ribbon, thermal print head, and roller.
Label Artist.
Bixolon provides its custom label design program as bundle. It supports database connection as well as text, drawing lines and boxes, all kinds of graphics and 1D/2D Barcode printing.
| Printing | |
|---|---|
| Maximum print height | 2 m |
| Maximum printing width | 10.6 cm |
| Print speed | 127 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Colour | No |
| Print technology | Direct thermal / Thermal transfer |
| Paper handling | |
|---|---|
| Media thickness | 0.06 – 0.20 mm |
| Supported paper width | 20 – 110 mm |
| Maximum roll diameter | 13 cm |
| Core diameter | 1.25 cm |
| Ribbon length | 74 m |
| Ribbon width | 11 cm |
| Ports & interfaces | |
|---|---|
| Optional connectivity | Wireless LAN |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Flash memory | 128 MB |
| Internal memory | 64 MB |
| Design | |
|---|---|
| Product colour | Grey |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 80% |
| Weight & dimensions | |
|---|---|
| Weight | 2.35 kg |
| Height | 173 mm |
| Depth | 252 mm |
| Width | 200 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Other features | |
|---|---|
| Emulations | SLCS, BPL-Z, BPL-E |
