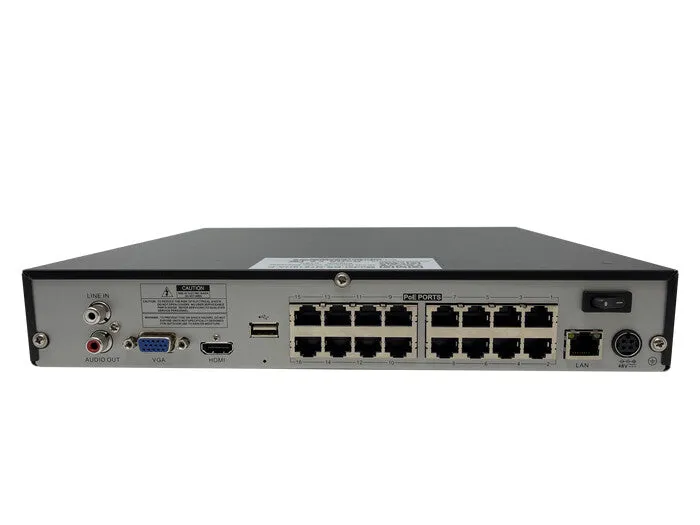

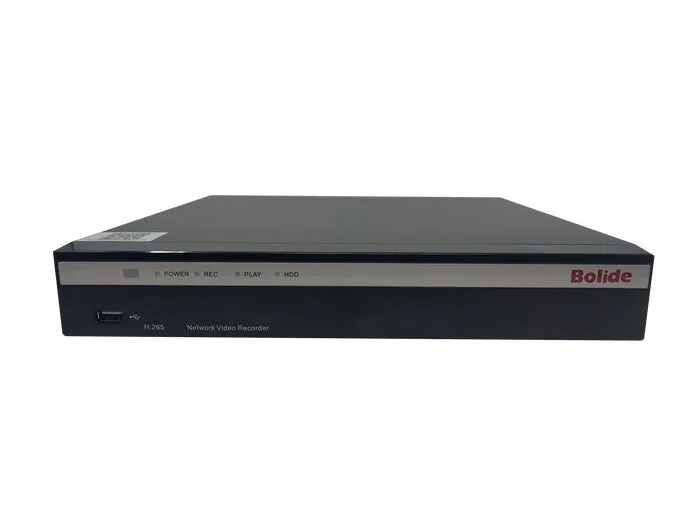

Bolide BK-NVR16 network video recorder Black
- Video input channels: 16 channels
- 3840 x 2160 pixels
- Input bandwidth: 112 Mbit/s Output bandwidth: 96 Mbit/s
- Maximum storage capacity: 10 TB HDD interface: SATA
- Ethernet LAN (RJ-45) ports: 17 Power over Ethernet (PoE)
- 8 W
- Black
| Performance |
| Languages support |
Multi |
| Maximum frame rate |
180 fps |
| Input bandwidth |
112 Mbit/s |
| Output bandwidth |
96 Mbit/s |
| Playback modes |
Forward, Slow play |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Audio formats supported |
G.711 A-law, G.711u |
| Maximum resolution |
3840 x 2160 pixels |
| Video input channels |
16 channels |
| Wireless LAN features |
| Wi-Fi |
No |
| Hard drive |
| HDD interface |
SATA |
| Maximum storage capacity |
10 TB |
| Number of HDDs supported |
1 |
| Ports & interfaces |
| Line-in |
Yes |
| Audio output |
1 |
| VGA (D-Sub) output ports |
1 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
16 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN (RJ-45) ports |
17 |
| Features |
| LED indicators |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Product colour |
Black |
| Power |
| Output current |
3.75 A |
| Power over Ethernet (PoE) power per port |
30 W |
| Output voltage |
48 V |
| Power consumption (max) |
8 W |
| System requirements |
| Browser supported |
IE10/11 |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 90% |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
54 mm |
| Depth |
302 mm |
| Width |
300 mm |
