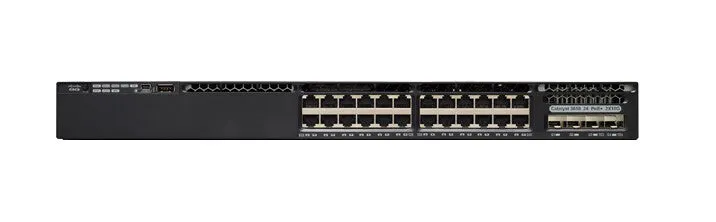

Cisco WS-C3650-24PDM-L Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- Cat5, Cat5e, Cat6, Cat6a 10G support
- MAC address table: 32000 entries Switching capacity: 256 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
| Management features | |
|---|---|
| MIB support | Y |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Fiber optic connector | SFP+ |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Virtual LAN features | Stacked VLAN, Private VLAN, Port-based VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9198 |
| Jumbo frames support | Yes |
| Switching capacity | 256 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast MAC address table | 24000 entries |
| Multicast support | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 304860 h |
| Flash memory | 4096 MB |
| Power | |
|---|---|
| Power consumption (max) | 975 W |
| Input current | 5 – 12 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 390 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -5 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.56 kg |
| Height | 44 mm |
| Depth | 296 mm |
| Width | 445 mm |
| Packaging data | |
|---|---|
| AC adapter included | Yes |
