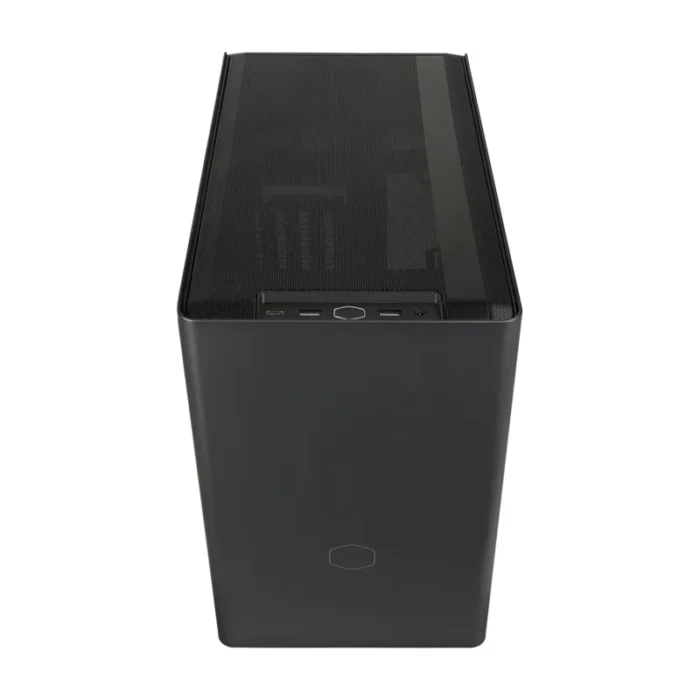

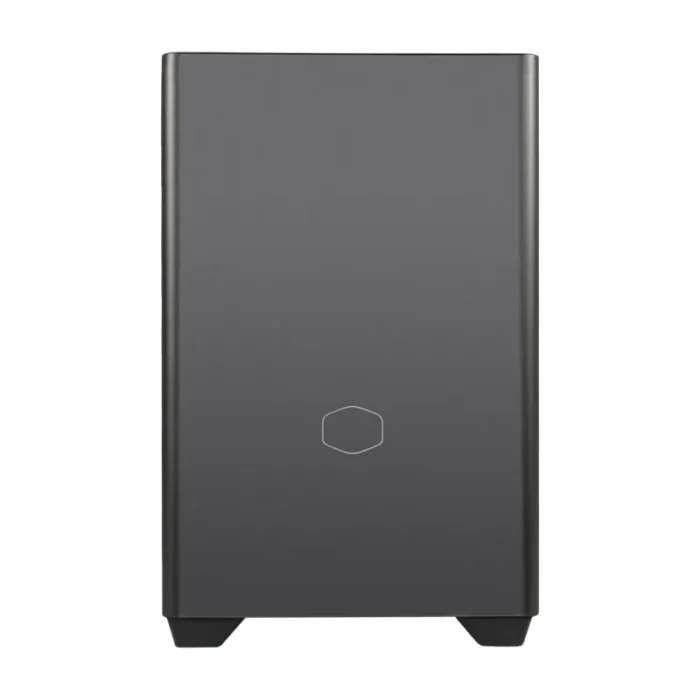

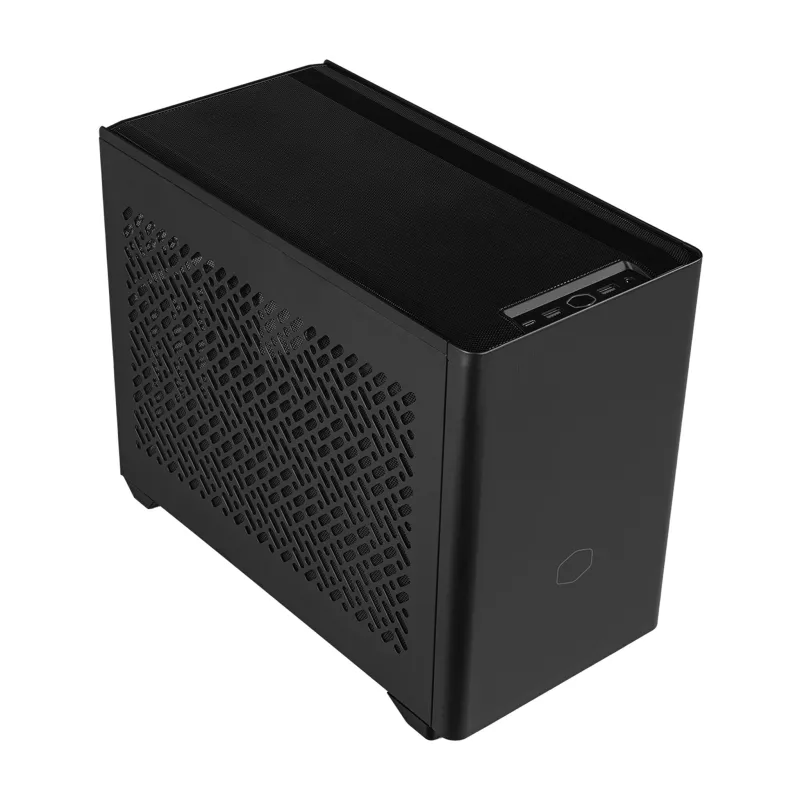

Cooler Master MasterBox NR200P V2 Desktop Black
- Compact yet powerful
- Stay cool under pressure
- Optimized GPU performance
- Comprehensive GPU support
- Easy, tool-free access
- USB 3.2 Gen 2×2 Type C support
- Refreshed NCORE style
BIG POSSIBILITIES, SMALL SIZE
Compact Yet Powerful
An ultra-sleek 18.25L design delivers unmatched performance and aesthetics with vented steel and tempered glass side panels.
Stay Cool Under Pressure
No performance compromises with support for 240mm/280mm liquid coolers, providing the ultimate in thermal efficiency.
Optimized GPU Performance
An efficient vertical airflow layout supported by a 120mm bottom-mounted fan keeps your GPU extra cool.
Comprehensive GPU Support
Includes vertical mounting options, a custom PCIe 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.
Easy, Tool-free Access
All external panels are secured with pins for easy removal, facilitating quick access to the internals without the use of tools while a removable GPU panel simplified the installation process.
The New Ncore Style
An NCORE redesign provides a sleek take on maximizing cooling performance and style simultaneously.
USB 3.2 Gen 2×2 Type C Support
A USB 3.2 Gen 2×2 Type C port is built into the I/O panel with up to 20Gbps transfer speeds.
| Design | |
|---|---|
| Maximum PSU length | 13 cm |
| Maximum CPU cooler height | 6.7 cm |
| Anti-dust filter | Yes |
| Side window | Yes |
| Number of expansion slots | 3 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | Black |
| Material | ABS, Mesh, SGCC, Steel, Tempered glass |
| Type | PC |
| Form factor | Desktop |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Pulse-width modulation (PWM) support | Yes |
| Fan speed | 650 – 1800 RPM |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans installed | 1x 120 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5″ |
| General | |
|---|---|
| Product family | MasterBox |
| Weight & dimensions | |
|---|---|
| Weight | 4.35 kg |
| Height | 292 mm |
| Depth | 372 mm |
| Width | 185 mm |
| Packaging data | |
|---|---|
| Package weight | 6.6 kg |
| Package height | 448 mm |
| Package depth | 350 mm |
| Package width | 288 mm |
| Other features | |
|---|---|
| Volume | 18.25 L |
