Corsair MP600 CORE 2 TB M.2 PCI Express 4.0 NVMe QLC 3D NAND
- 2 TB M.2 PCI Express 4.0
- 380000 IOPS
- 580000 IOPS
- QLC 3D NAND NVMe
- Hardware encryption 256-bit AES
- S.M.A.R.T. support
EXTREME GEN4 STORAGE PERFORMANCE
A PCIe Gen4 x4 controller delivers up to 4,950MB/sec sequential read and 3,950MB/sec sequential write speeds, for blazing fast read, write, and response times.
High-speed Gen4 PCIe x4 NVMe M.2 Interface
Using PCIe Gen4 technology for maximum bandwidth, the MP600 CORE delivers incredible storage performance.

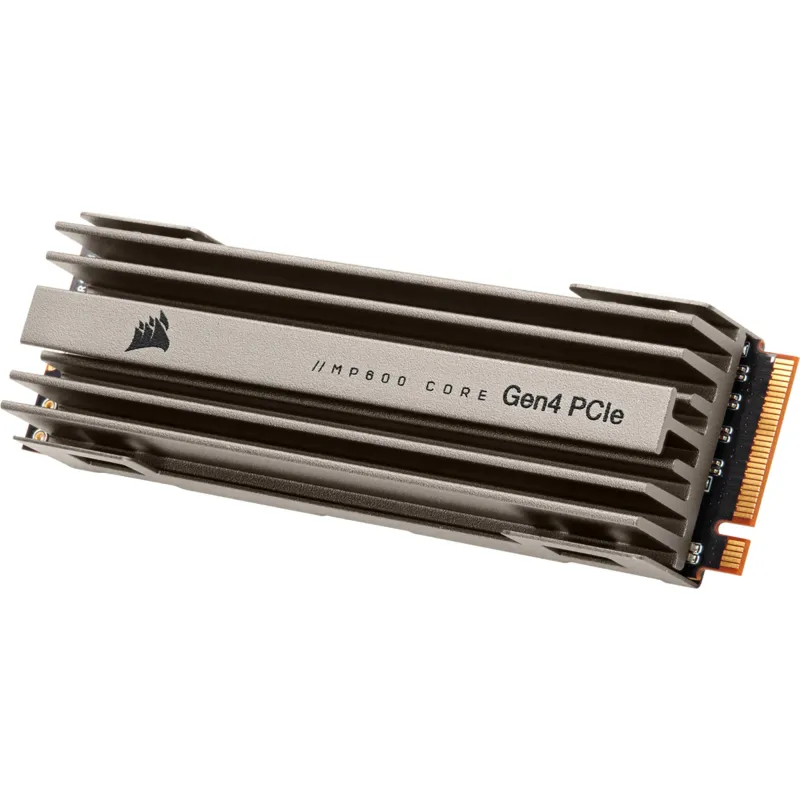

Built-in Aluminum Heatspreader
Helps disperse heat and reduce throttling, so your SSD maintains sustained high performance.
High-Density 3D QLC NAND
Offers even better value than previous generation TLC NAND, storing more data in the same amount of physical space.
Strong Endurance
The MP600 CORE reliably stores your data through years of use with endurance up to 1,440TB Written. That’s over 100 years of typical usage!

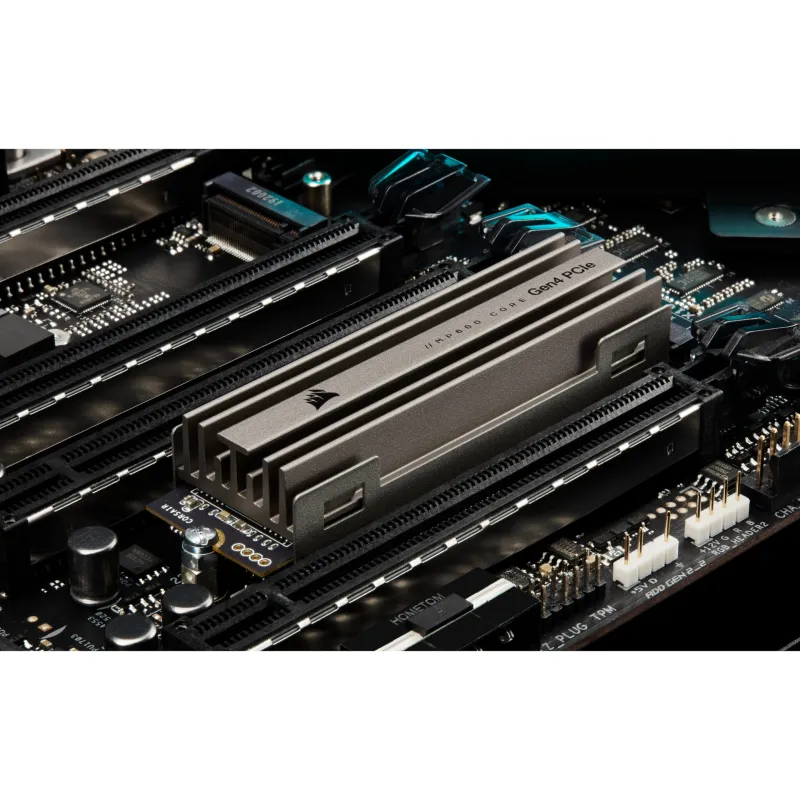

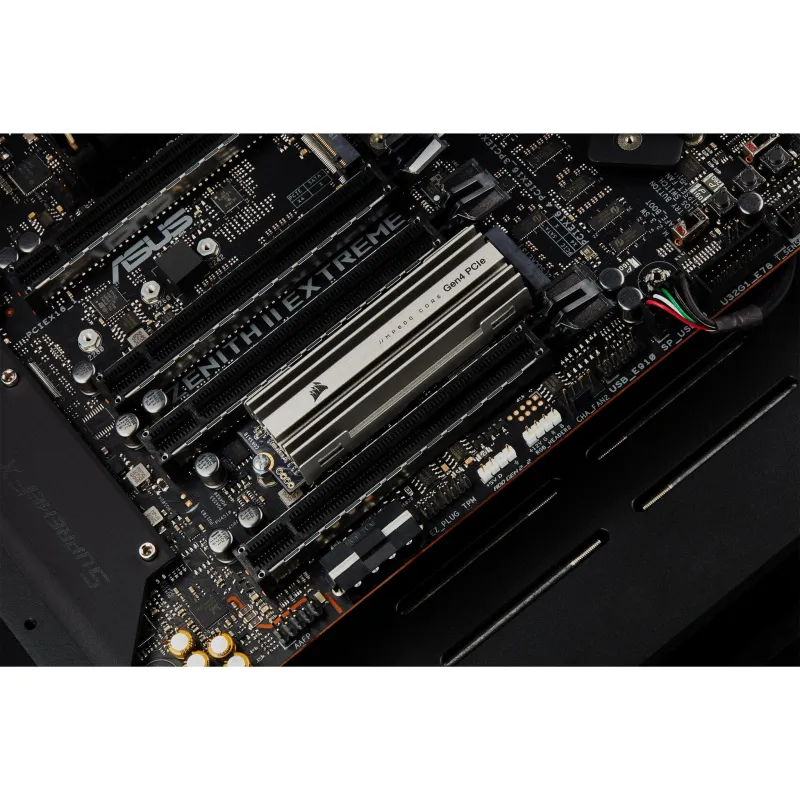

M.2 2280 Form Factor
Fits directly into your motherboard with no need for cables.
| Features | |
|---|---|
| TBW rating | 450 |
| Mean time between failures (MTBF) | 1800000 h |
| S.M.A.R.T. support | Yes |
| Sequential write speed (CDM) | 3700 MB/s |
| Sequential read speed (CDM) | 4950 MB/s |
| Random write (4KB) | 580000 IOPS |
| Random read (4KB) | 380000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Memory type | QLC 3D NAND |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| SSD capacity | 2 TB |
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Weight & dimensions | |
|---|---|
| Weight | 34 g |
| Height | 15 mm |
| Depth | 80 mm |
| Width | 23 mm |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Operating vibration | 20 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
