Crestron HD-TXU-4KZ-111-2G-W AV extender AV receiver White

• DM® Essentials transmitter functionality designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver
• Point-to-point extension of a USB-C® DisplayPort™ AV signal and USB 2.0 data signals over a CAT5e or higher cable
• USB-C input with DisplayPort Alt Mode capability and USB 2.0 support
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability

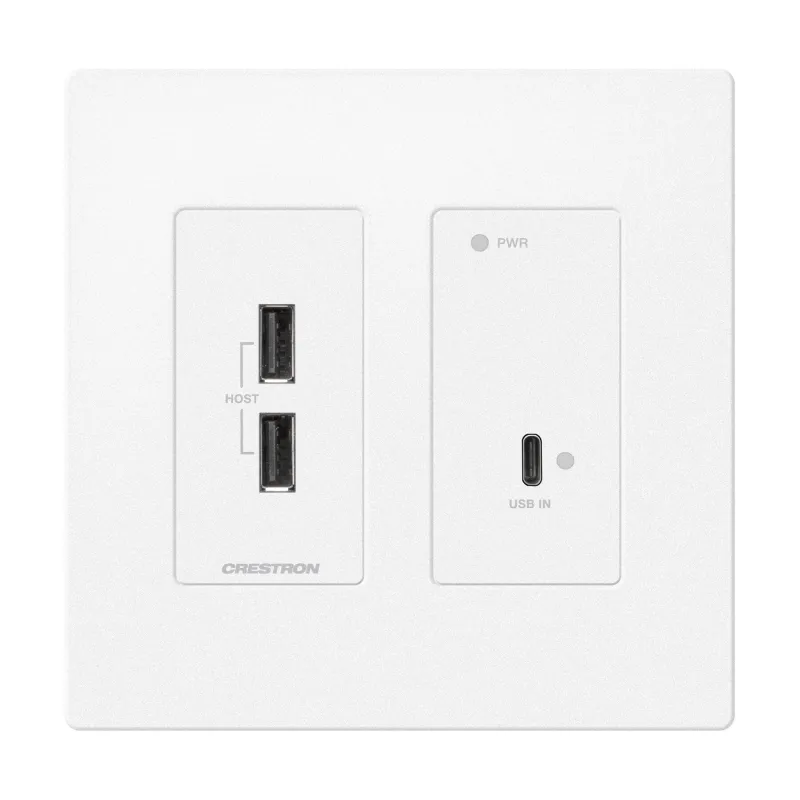

• Two-gang-wall plate design with white finish
• Decorator style faceplate required (FP-G2-DM Series sold separately)

The HD‑TXU‑4KZ‑111‑2G is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD‑RXU‑4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD‑TXU‑4KZ‑111-2G to the DM Essentials receiver.

The HD‑TXU‑4KZ‑111-2G is available in two models: HD‑TXU‑4KZ‑111-2G-B (black) and HD‑TXU‑4KZ‑111-2G-W (white).

Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver

For interoperability between the HD‑TXU‑4KZ‑111‑2G and an HD‑RXU‑4KZ Series receiver, the DM Essentials output port of the HD‑TXU‑4KZ‑111‑2G must be connected to the DM Essentials input port of the HD‑RXU‑4KZ Series receiver.

NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD‑RX‑4K‑210‑C‑E[‑POE]).

4K60 4:4:4 and HDR Support

The HD‑TXU‑4KZ‑111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

USB 2.0 Data Extension

Two USB 2.0 host ports are provided on the HD‑TXU‑4KZ‑111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.

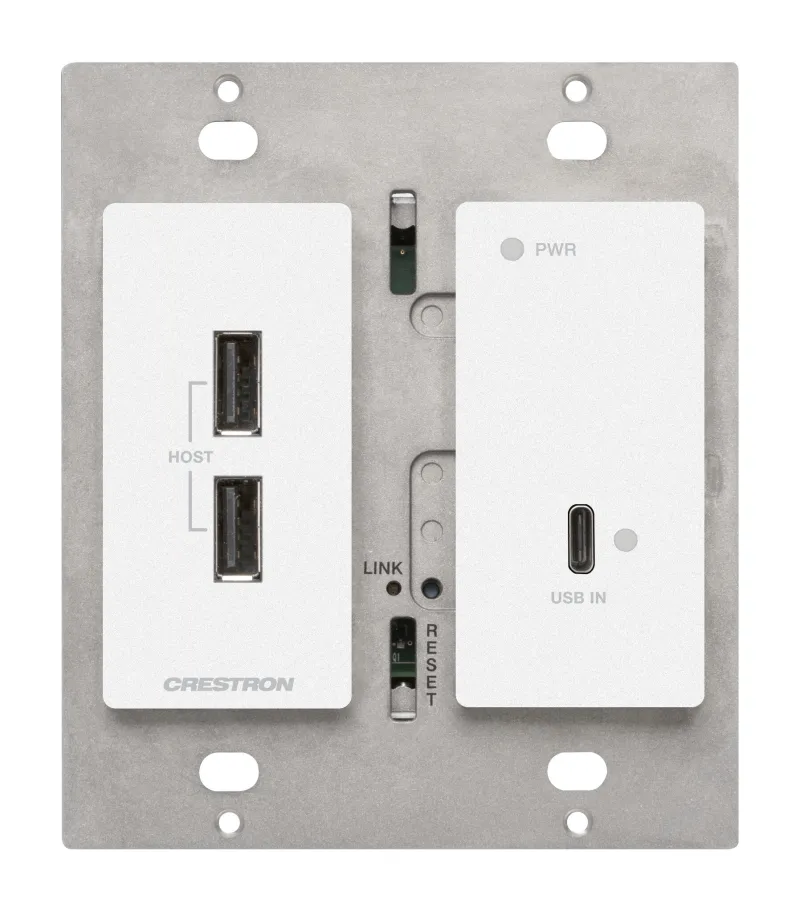

Two-Gang Wall Plate Design

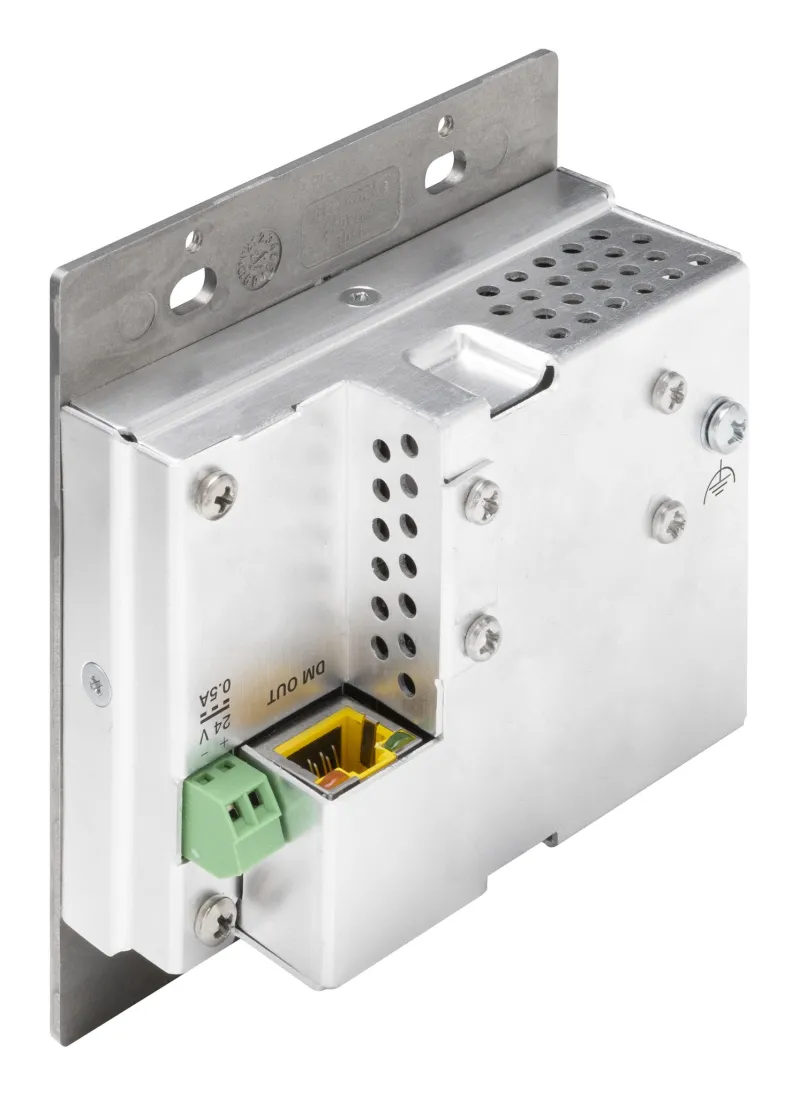

The HD‑TXU‑4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD‑TXU‑4KZ‑111-2G can receive power from the remote DM Essentials receiver (surface mountable only).
