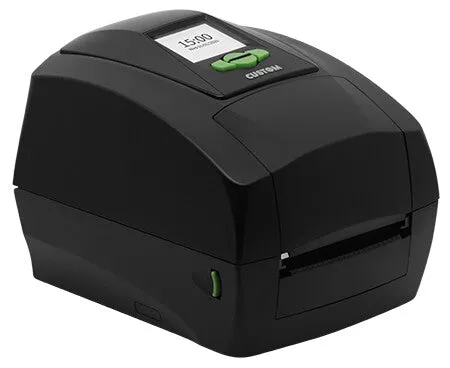

CUSTOM D4 202 ETH label printer Direct thermal / Thermal transfer 203 x 203 DPI Wired Ethernet LAN
- Direct thermal / Thermal transfer
- 203 x 203 DPI
- Maximum printing width: 10.4 cm
- Built-in barcodes: Code 128 (A/B/C), Code 39, Data Matrix, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
- Connectivity technology: Wired
- USB port Ethernet LAN
- Display: LCD 7.11 cm (2.8″) 240 x 320 pixels Colour display
- 2 kg
| Printing | |
|---|---|
| Maximum printing width | 10.4 cm |
| Maximum resolution | 203 x 203 DPI |
| Print technology | Direct thermal / Thermal transfer |
| Paper handling | |
|---|---|
| Media thickness | 0.06 – 0.2 mm |
| Maximum label width | 11 cm |
| Maximum roll diameter | 12.7 cm |
| Core diameter | 2.54 cm |
| Ribbon length | 100 m |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB port | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Built-in barcodes | Code 128 (A/B/C), Code 39, Data Matrix, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Internal memory | 128 MB |
| Design | |
|---|---|
| Control type | Buttons |
| Colour display | Yes |
| Display resolution | 240 x 320 pixels |
| Display diagonal | 7.11 cm (2.8″) |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC adapter output current | 2.5 A |
| AC adapter output voltage | 24 V |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 – 240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 45 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Weight & dimensions | |
|---|---|
| Weight | 2 kg |
| Height | 188 mm |
| Depth | 263 mm |
| Width | 200 mm |
