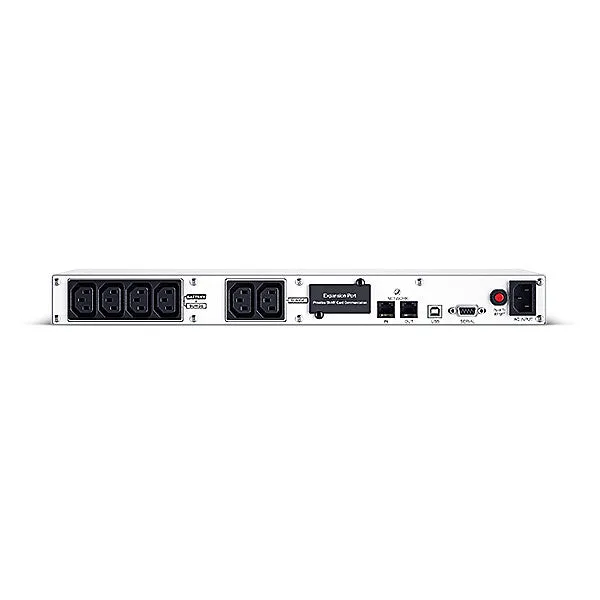

CyberPower OR600ERM1U uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 6 AC outlet(s)
- Line-interactive UPS Topology
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- Overload Protection
- Hot-swappable Batteries
- Surge and Spike Protection
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- USB Connectivity Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack Mount Form Factor
CyberPower OR600ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
| Features | |
|---|---|
| Audible alarm modes | Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Surge protection | Yes |
| EMI/RFI noise filtering | Yes |
| Power factor | 0.6 |
| Response time | 4 ms |
| Surge energy rating | 405 J |
| Maximum current | 10 A |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 271 V |
| Input operation voltage (min) | 165 V |
| Waveform | Sine |
| Output power | 360 W |
| Output power capacity | 0.6 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Modem (RJ-11) ports | 1 |
| Serial ports quantity | 1 |
| USB port | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Battery recharge time | 8 h |
| Typical backup time at half load | 13 min |
| Typical backup time at full load | 4 min |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Operation |
| Display type | LCD |
| Cable length | 1.83 m |
| Rack capacity | 1U |
| Housing material | Metal |
| Product colour | Silver |
| Form factor | Rackmount |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 15000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Certificates | |
|---|---|
| Certification | CE, EAC, RCM |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 7.8 kg |
| Height | 44 mm |
| Depth | 235 mm |
| Width | 433 mm |
| Packaging data | |
|---|---|
| Package weight | 10.3 kg |
| Package height | 155 mm |
| Package depth | 315 mm |
| Package width | 530 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
