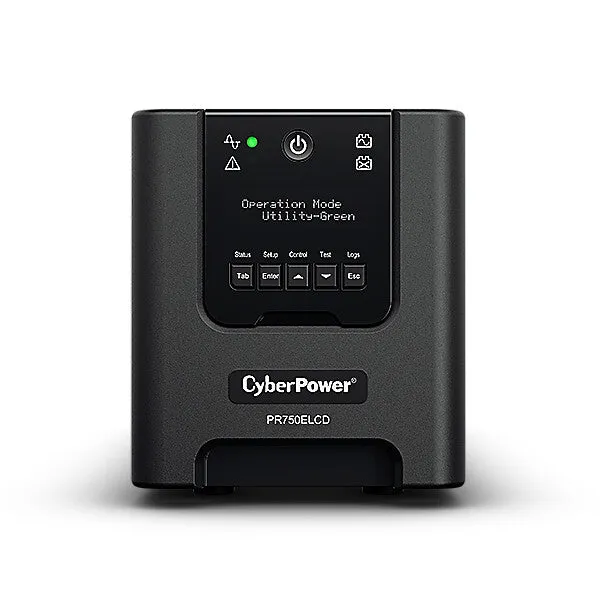

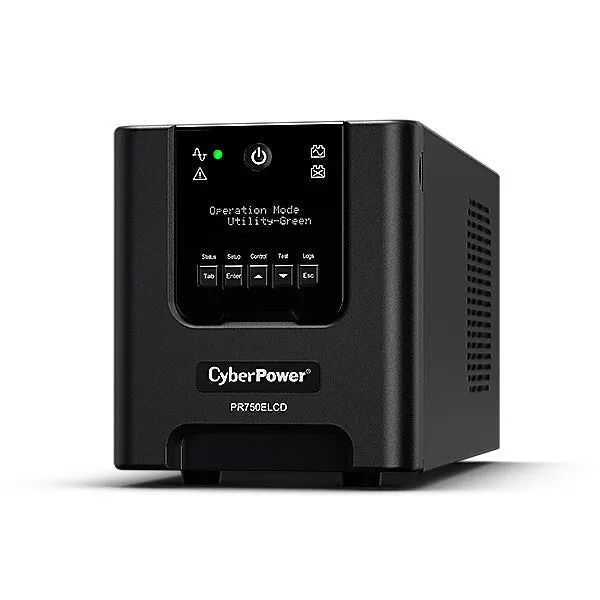

CyberPower PR750ELCD uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 675 W 6 AC outlet(s)
- Line-Interactive
- 0.75 kVA 675 W
- Waveform: Pure sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black

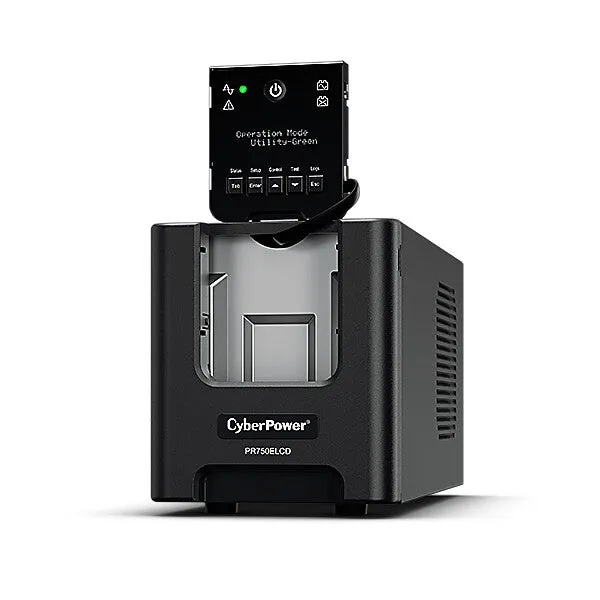

The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sine Wave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
| Features |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Surge protection |
Yes |
| EMI/RFI noise filtering |
Yes |
| Power factor |
0.9 |
| Response time |
4 ms |
| Surge energy rating |
405 J |
| Maximum current |
10 A |
| Output operation voltage (max) |
230 V |
| Output operation voltage (min) |
230 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
301 V |
| Input operation voltage (min) |
150 V |
| Waveform |
Pure sine |
| Output power |
675 W |
| Output power capacity |
0.75 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
8 h |
| Typical backup time at half load |
10.5 min |
| Typical backup time at full load |
2.5 min |
| Number of batteries supported |
1 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Error, Operation |
| Display type |
LCD |
| Housing material |
Metal |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-15 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Packaging content |
| Cables included |
USB cable |
| Certificates |
| Certification |
CE, EAC, RCM, RoHS |
| Weight & dimensions |
| Weight |
12.3 kg |
| Height |
162 mm |
| Depth |
138 mm |
| Width |
349 mm |
| Packaging data |
| Package weight |
13.3 kg |
| Package height |
283 mm |
| Package depth |
486 mm |
| Package width |
272 mm |
| Logistics data |
| Country of origin |
China |
| Harmonized System (HS) code |
8504408590 |
| Other features |
| Overload protection |
Yes |
