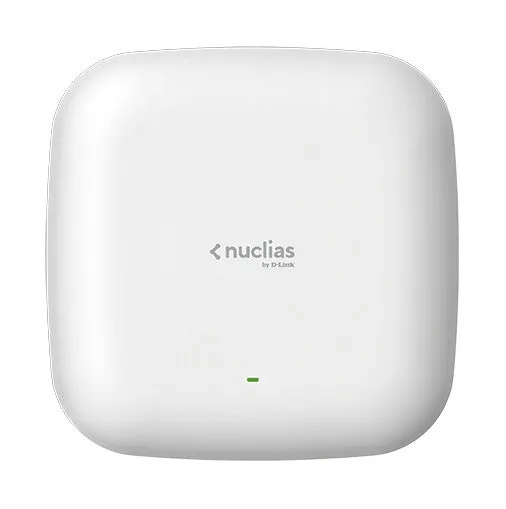

D-Link DBA-1210P Nuclias Cloud Wireless AC1300 Wave 2 Cloud-Managed Access Point
- D-Link Nuclias Cloud Management (1-year license included)
- Centralised cloud-based management
- Zero-touch provisioning
- Unlimited scalability with no limitation on the number of supported APs
- Intuitive web and app-based interface High Performance and Connectivity
- IEEE 802.11ac Wave 2 wireless
- 2 x 2 MU-MIMO with two spatial streams
- Up to 1.3 Gbps2 throughput
- WPA3 Support
- Gigabit PoE Ethernet LAN port High Performance and Connectivity
- Supports band steering
- Supports load balancing
- Supports up to 16 virtual access points
- Integrated DHCP server Convenient Installation
- Slim form factor easily blends into any office environment

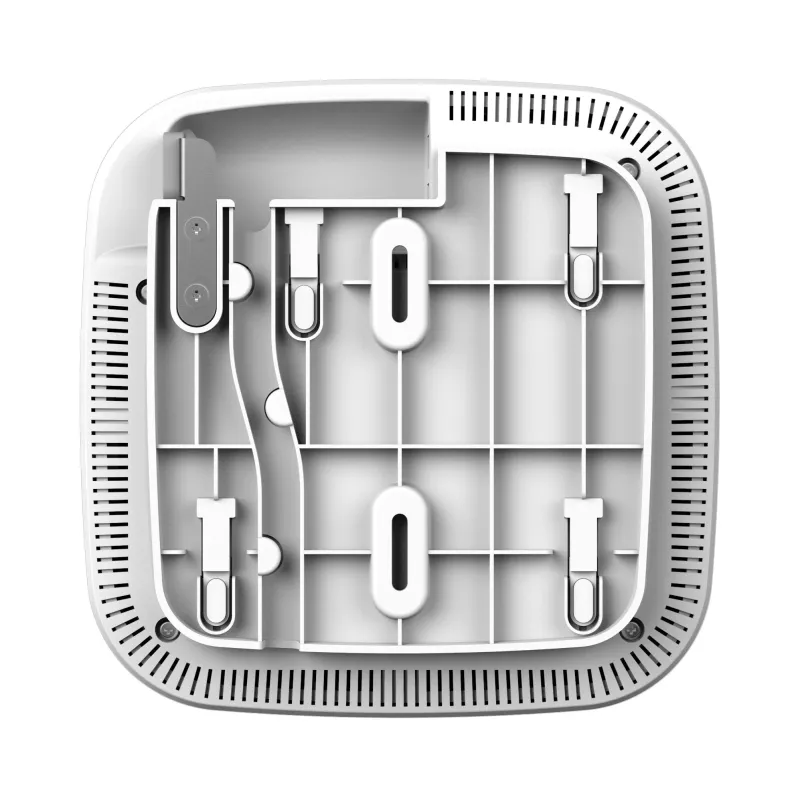

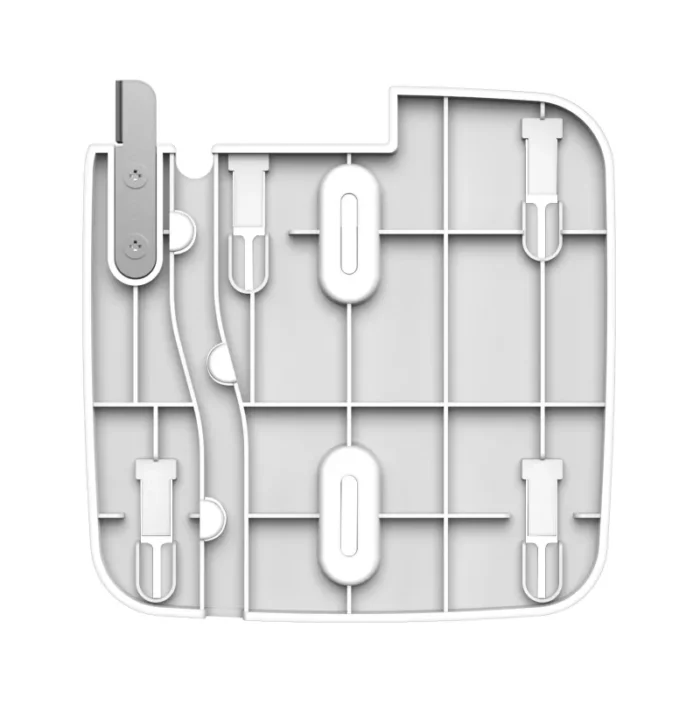

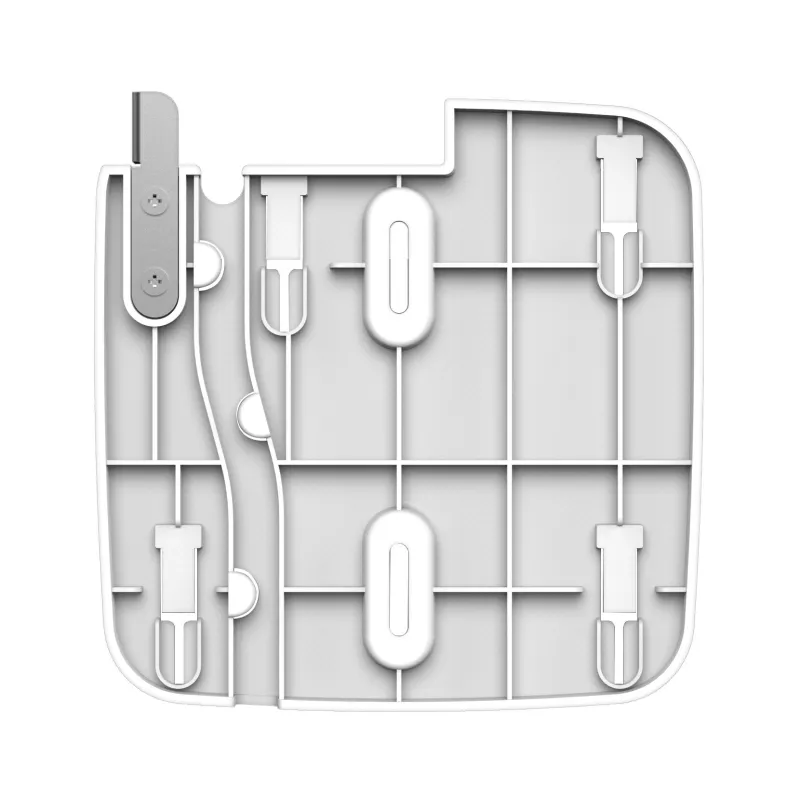

- Ceiling/wall-mountable
The DBA-1210P Nuclias Wireless AC1300 Wave 2 Cloud-Managed Access Point is a high performance indoor access point designed specifically for SMB, retail, hospitality, campus, as well as managed service providers. It offers combined data rates of up to 1,267 Mbps over 2 dedicated wireless bands and enhanced WPA3 wireless security.
The DBA-1210P can be easily deployed with zero-touch provisioning and controlled through the D-Link Nuclias Cloud Management. This allows network administrators to focus more on providing reliable connectivity and services and spend less time managing devices. Centralised Management With D-Link Nuclias Designed to be managed through the D-Link Nuclias Cloud Management1, the DBA-1210P is easily set up with the help of the intuitive D-Link Nuclias web-browser portal or the Nuclias mobile app for tablets. Centralised cloud-based management enables zero-touch provisioning, allowing for plug-and-connect deployment without the need for additional configuration.
The DBA-1210P connects to the D-Link Nuclias cloud to automatically retrieve its configuration settings, enabling deployment at remote locations without an on-site network administrator. With D-Link Nuclias, businesses can now more effectively organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. Fast And Efficient Wireless AC Wave 2 Performance The DBA-1210P delivers reliable, high-speed wireless AC Wave 2 performance with maximum wireless signal rates of up to 1.3 Gbps2. Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise typically required to tune a wireless network. The D-Link Nuclias cloud tunes the DBA-1210P’s channel selection, transmit power, and maximum client connections for optimal performance under the most challenging RF conditions.
| Features |
| Mean time between failures (MTBF) |
30000 h |
| Flow control support |
Yes |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Output current |
1 A |
| Output voltage |
12 V |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
White |
| Technical details |
| Shipping (inner) case length |
35.2 cm |
| Shipping (inner) case width |
29 cm |
| Shipping (inner) case height |
23.9 cm |
| Shipping (inner) case net weight |
2.1 kg |
| Products per shipping (inner) case |
5 pc(s) |
| Pallet gross weight (air) |
397.7 kg |
| Master (outer) cases per pallet (air) |
96 pc(s) |
| Products per pallet (air) |
480 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
2.05 m |
| Pallet gross weight (sea) |
397.7 kg |
| Master (outer) cases per pallet (sea) |
96 pc(s) |
| Products per pallet (sea) |
480 pc(s) |
| Pallet height (sea) |
2.05 m |
| Shipping (inner) case gross weight |
3.83 kg |
| Certificates |
| Certification |
FCC Class BCE Class BULIC Class B |
| Weight & dimensions |
| Height |
28 mm |
| Depth |
170 mm |
| Width |
170 mm |
| Packaging data |
| Package weight |
526.5 g |
| Package height |
65 mm |
| Package depth |
274 mm |
| Package width |
205 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-20 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
