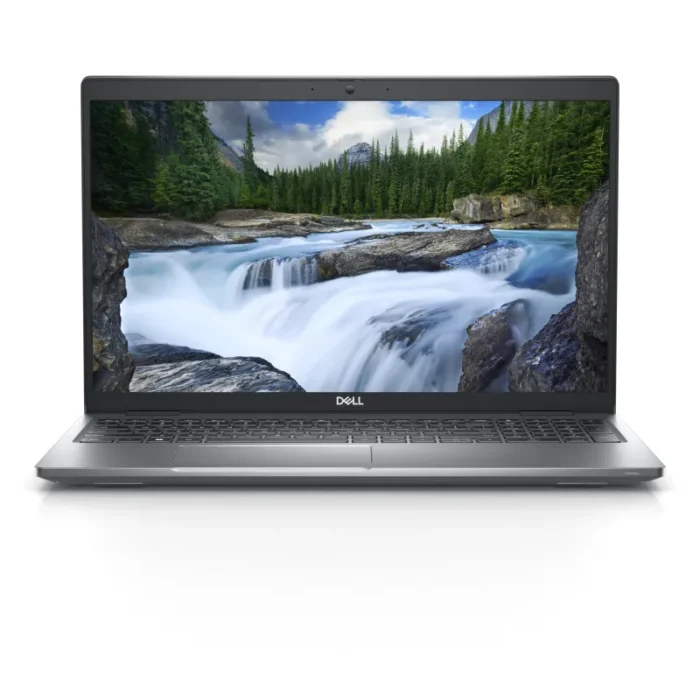

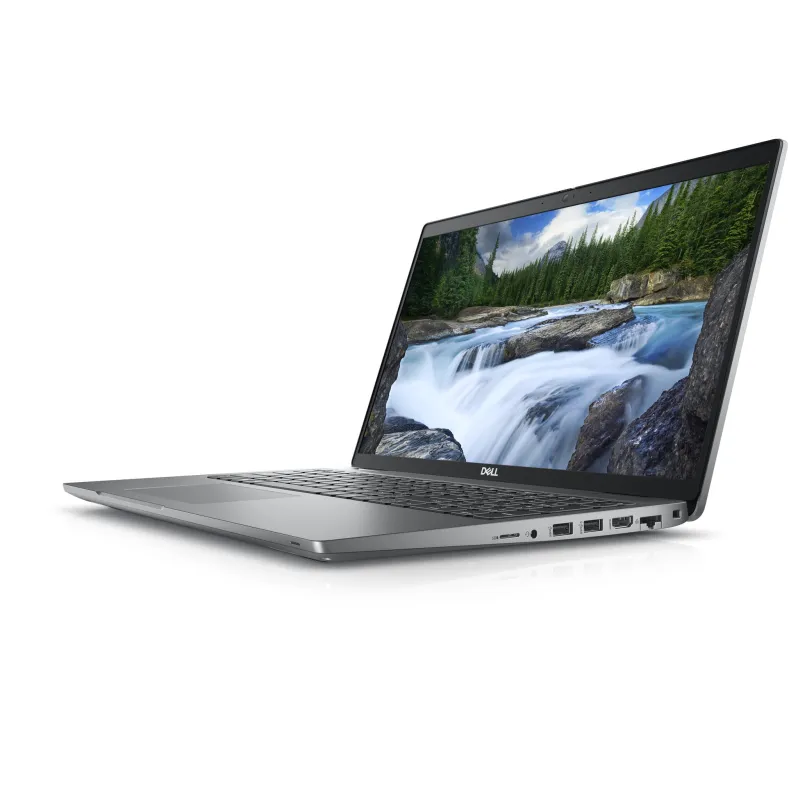

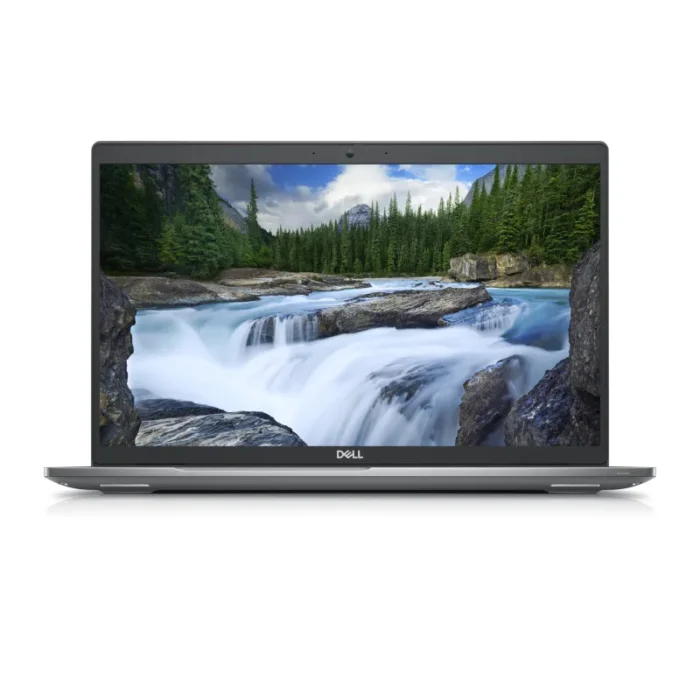

DELL Latitude 5530 Intel® Core™ i7 i7-1265U Laptop 39.6 cm (15.6″) Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 10 Pro Grey
- Windows 10 Pro 64-bit
- Intel Core i7-1265U (12MB Cache)
- 39.6 cm (15.6″) Full HD 1920 x 1080 WVA
- 16GB (3200MHz) DDR4-SDRAM (2 x 8) & 512GB SSD
Work anywhere on our most scalable and sustainable Latitude
Work confidently on the smallest 15″ mainstream business laptop that combines ultimate performance, scalability and security. The 5000 series is Latitude’s most sustainable series ever.
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| Contrast ratio (typical) |
700:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Pixel density |
141 ppi |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
WVA |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Configurable TDP-down |
12 W |
| Processor cache |
12 MB |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
i7-1265U |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD performance class |
35 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Speakers manufacturer |
Waves |
| Number of built-in speakers |
2 |
| Audio system |
MaxxAudio Pro |
| Audio chip |
Realtek ALC3204 |
| Camera |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Keyboard number of keys |
100 |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
SinglePoint |
| Software |
| Trial software |
No Microsoft Office License Included 30 day |
| Operating system language |
Multilingual |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
| Battery weight |
230 g |
| Battery charge indicator |
Yes |
| Battery recharge time |
4 h |
| Battery voltage |
7.6 V |
| Battery capacity |
58 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB charging current |
3.25 A |
| USB charging voltage |
20,5,9,15 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
65 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
140 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height (rear) |
2.21 cm |
| Height (front) |
2.08 cm |
| Depth |
233.3 mm |
| Width |
357.8 mm |
| Weight |
1.59 kg |
| General |
| Product family |
Latitude |
| Product series |
5000 |
| Packaging content |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
