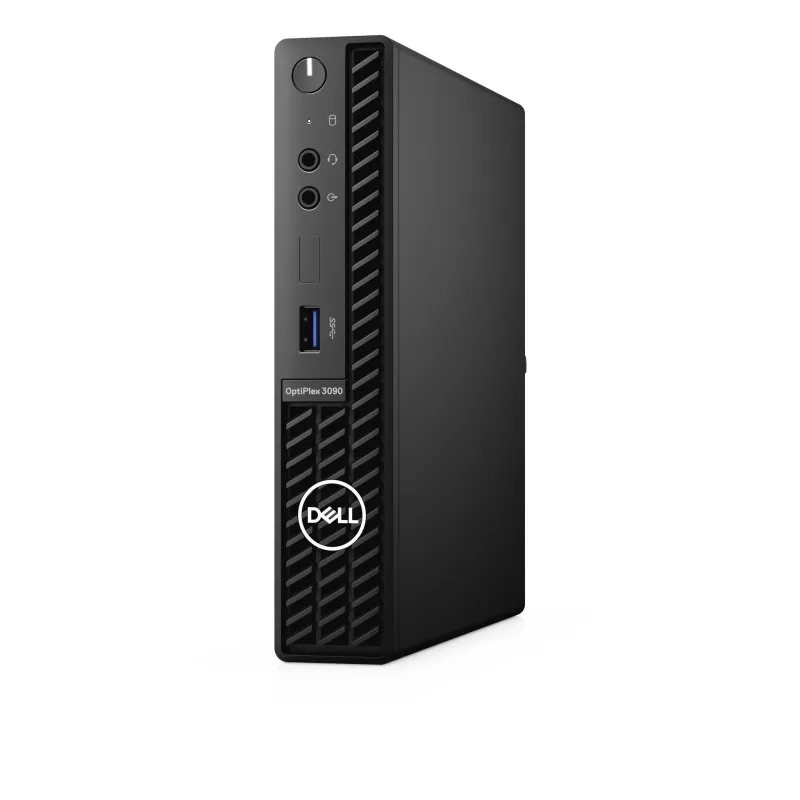

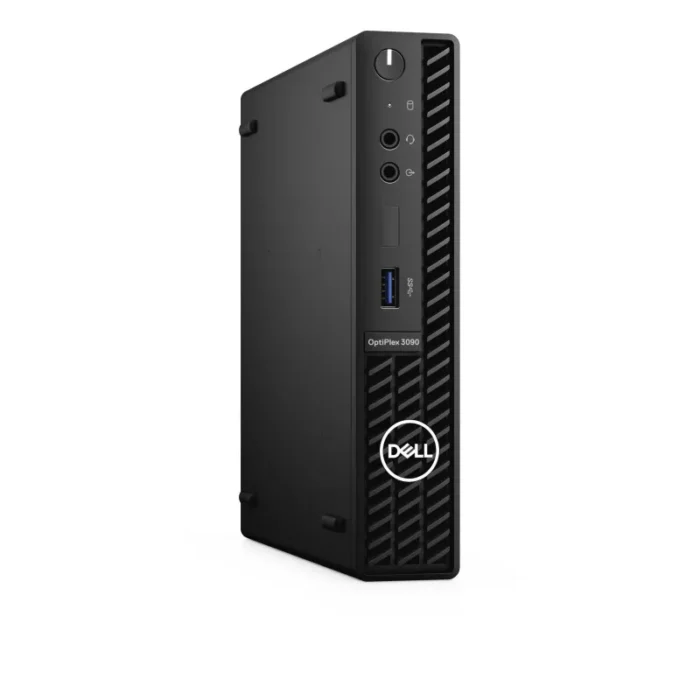

DELL OptiPlex 3090 Intel® Core™ i5 i5-10500T 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro MFF Mini PC Black
- Windows 10 Pro 64-bit
- Intel Core i5-10500T (12MB Cache, 2.3GHz)
- 8GB (2666MHz) DDR4-SDRAM (1 x 8) & 256GB SSD
Essential, compact desktop.
Essential commercial micro form factor desktop that delivers best-in-class security and performance with 10th Gen Intel® processors.
| Processor |
| Number of processors supported |
1 |
| Number of processors installed |
1 |
| Configurable TDP-down |
25 W |
| Configurable TDP-down frequency |
1.7 GHz |
| Processor cache |
12 MB |
| Processor frequency |
2.3 GHz |
| Processor boost frequency |
3.8 GHz |
| Processor cores |
6 |
| Processor model |
i5-10500T |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
2666 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
8 GB |
| Storage |
| RAID support |
No |
| Compatible memory cards |
Not supported |
| SSD performance class |
35 |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| Maximum on-board graphics card resolution |
4096 x 2304 pixels |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet LAN |
Yes |

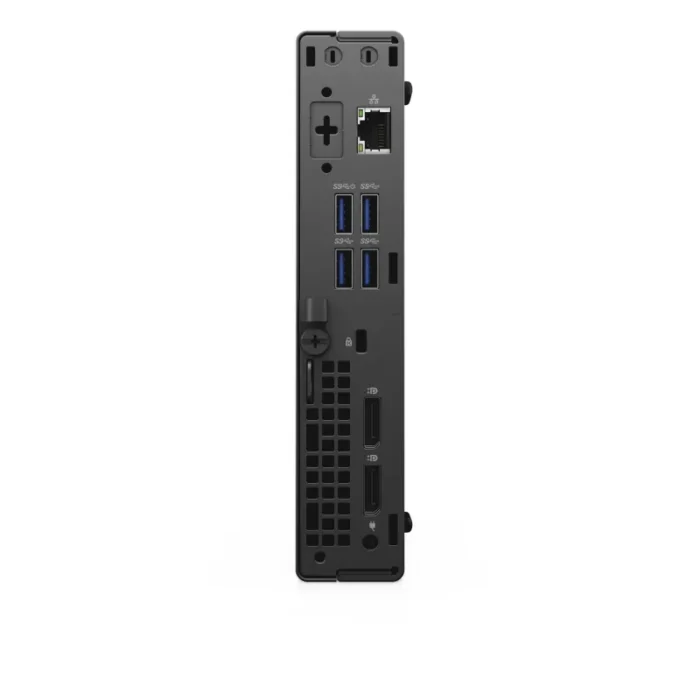

| Ports & interfaces |
| Number of front audio ports |
1 |
| Number of rear audio ports |
1 |
| Number of rear USB ports |
6 |
| Number of front USB ports |
2 |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| Expansion slots |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Water cooling system |
No |
| Placement supported |
Horizontal/Vertical |
| Chassis type |
MFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Built-in speaker(s) |
No |
| Market positioning |
Business |
| Product type |
Mini PC |
| Software |
| Trial software |
Microsoft Office License Included 30 day |
| Operating system language |
Multilingual |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| Intel Clear Video Technology |
Yes |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
65 W |
| Operational conditions |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Weight |
1.28 kg |
| Height |
182 mm |
| Depth |
178.6 mm |
| Width |
36 mm |
| Packaging content |
| Cables included |
AC |
| Input device model |
KB216 + MS116 |
| Keyboard connectivity |
Wired |
| Keyboard included on selected markets only |
Yes |
| Mouse connectivity |
Wired |
| Mouse included on selected markets only |
Yes |
| Display included |
No |
| General |
| Product family |
OptiPlex |
| Product series |
3000 |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
