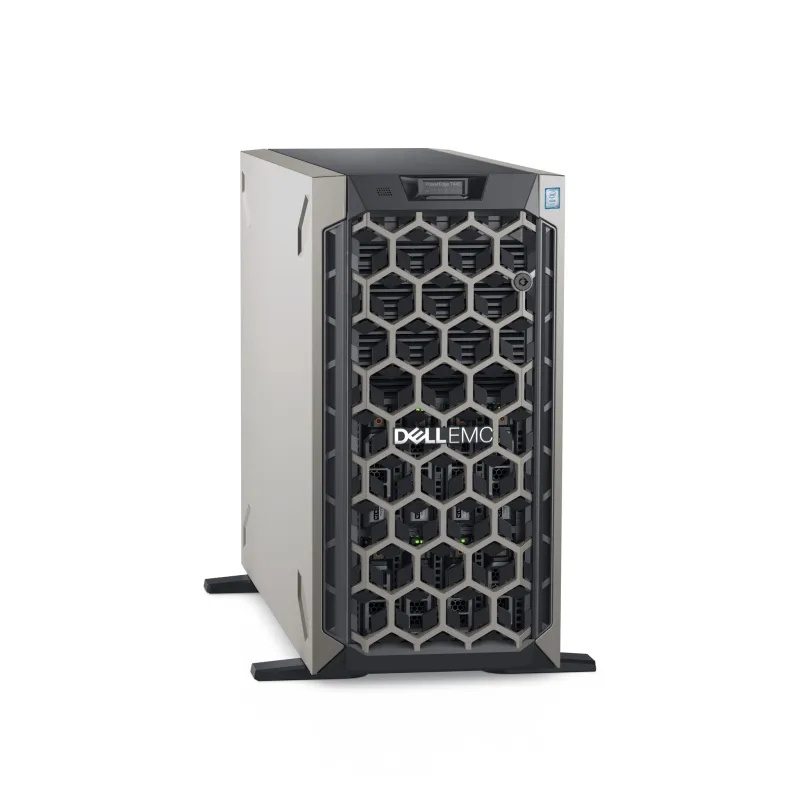

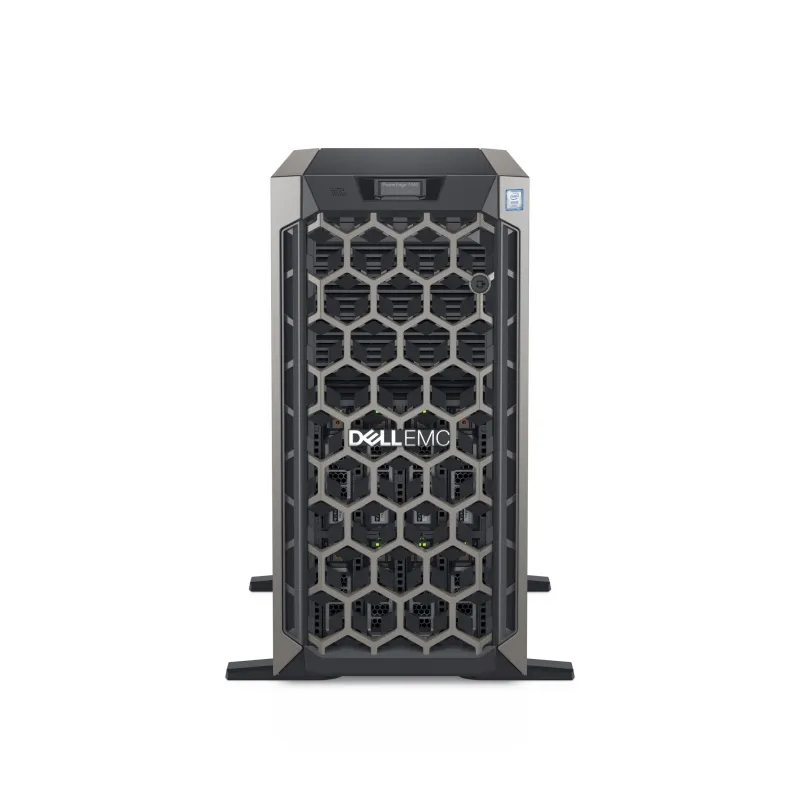

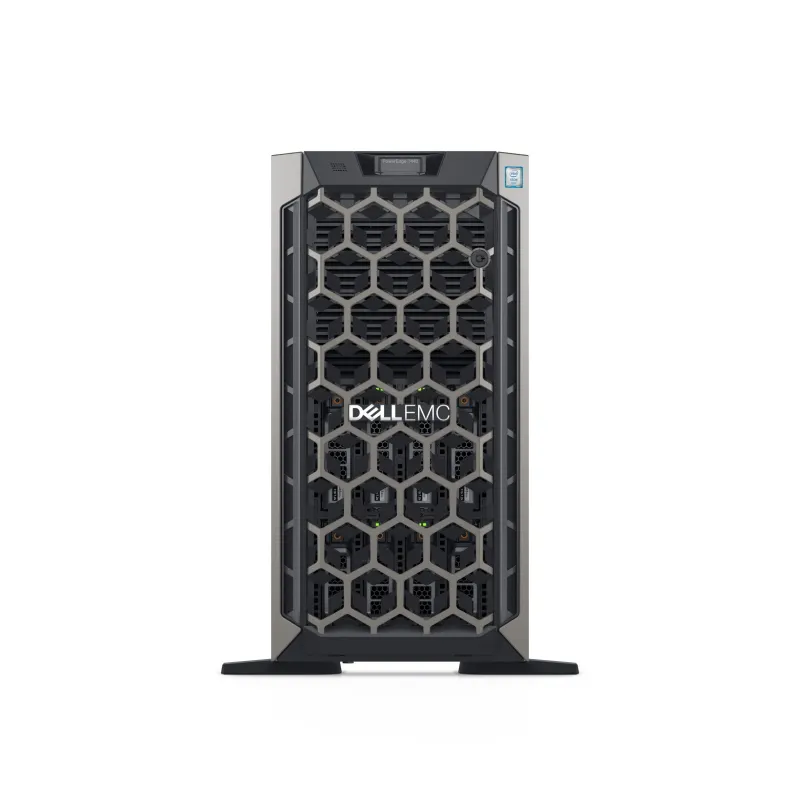

DELL PowerEdge T440 server 480 GB Tower (5U) Intel Xeon Silver 4210R 2.4 GHz 16 GB DDR4-SDRAM 495 W
- No OS
- Intel Xeon Silver 4210R (13.75MB Cache, 2.4GHz)
- 16GB DDR4-SDRAM (1 x 16) & 480GB SSD
- iDRAC9 Enterprise
Powerful, expandable and quiet
Drive a wide variety of office workloads with flexible performance and capacity in a worry-free infrastructure.
| Processor |
| Maximum internal memory supported by processor |
1.02 TB |
| Execute Disable Bit |
Yes |
| Processor socket |
LGA 3647 (Socket P) |
| Processor lithography |
14 nm |
| Processor threads |
20 |
| Processor operating modes |
64-bit |
| Processor codename |
Cascade Lake |
| Tcase |
84 °C |
| Memory types supported by processor |
DDR4-SDRAM |
| Memory clock speeds supported by processor |
2400 MHz |
| Maximum number of PCI Express lanes |
48 |
| Processor package size |
76.0 x 56.5 mm |
| Supported instruction sets |
SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability |
2S |
| Embedded options available |
Yes |
| Thermal Design Power (TDP) |
100 W |
| Number of processors installed |
1 |
| Processor cache |
13.75 MB |
| Processor cores |
10 |
| Processor boost frequency |
3.2 GHz |
| Processor frequency |
2.4 GHz |
| Processor model |
4210R |
| Processor generation |
2nd Generation Intel® Xeon® Scalable |
| Processor family |
Intel Xeon Silver |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
160 GB |
| Memory data transfer rate |
3200 MT/s |
| Memory slots |
16x DIMM |
| Memory clock speed |
2400 MHz |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory ranking |
2 |
| Buffered memory type |
Registered (buffered) |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Storage drive adapter type |
2.5″ – 3.5″ |
| Storage drive adapter included |
Yes |
| Drive writes per day (DWPD) |
3 |
| Supported storage drive interfaces |
SAS, Serial ATA |
| Optical drive type |
DVD±RW |
| Hot-Plug support |
Yes |
| Supported RAID controllers |
PERC H730P 2GB |
| Number of SSDs supported |
8 |
| SSD size |
2.5″ |
| Supported SSD sizes |
3.5″ |
| SSD interface |
SATA |
| SSD capacity |
480 GB |
| Number of SSDs installed |
1 |
| Supported HDD sizes |
3.5″ |
| Number of HDDs supported |
8 |
| Total storage capacity |
480 GB |
| Graphics |
| On-board graphics card model |
Not available |
| Network |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ports & interfaces |
| Power cables quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
5 |
| Ethernet LAN (RJ-45) ports |
2 |
| Expansion slots |
| PCI Express slots version |
3.0 |
| Design |
| Bezel |
Yes |
| Rack rails |
No |
| Product colour |
Black |
| Chassis type |
Tower (5U) |
| Performance |
| Remote administration |
iDRAC9 Enterprise |
| Software |
| Compatible operating systems |
– Canonical Ubuntu LTS- Citrix XenServer- Microsoft Windows Server with Hyper-V- Red Hat Enterprise Linux- SUSE Linux Enterprise Server- VMware ESXi |
| Operating system installed |
No |
| Processor special features |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Processor ARK ID |
197098 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply |
495 W |
| Redundant power supply (RPS) support |
No |
| Operational conditions |
| Non-operating altitude |
0 – 12000 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
10 – 80% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| General |
| Product family |
PowerEdge |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
7810 |
| Total carbon emissions, standard deviation (kg of CO2e) |
7850 |
| Carbon emissions, manufacturing (kg of CO2e) |
1196 |
| Carbon emissions, logistics (kg of CO2e) |
44 |
| Carbon emissions, energy usage (kg of CO2e) |
6560 |
| Carbon emissions, end-of-life (kg of CO2e) |
14 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
1254 |
| PAIA version |
1.2.1, 2019 |
| Logistics data |
| Harmonized System (HS) code |
84714100 |
| Weight & dimensions |
| Package weight |
33.2 kg |
| Package height |
454 mm |
| Package depth |
616 mm |
| Package width |
789 mm |
| Depth |
573.6 mm |
| Height |
443.3 mm |
| Width |
218 mm |
| Packaging content |
| Cables included |
AC |
| Other features |
| Data transfer rate |
6 Gbit/s |
| Bytes per sector |
512 |
