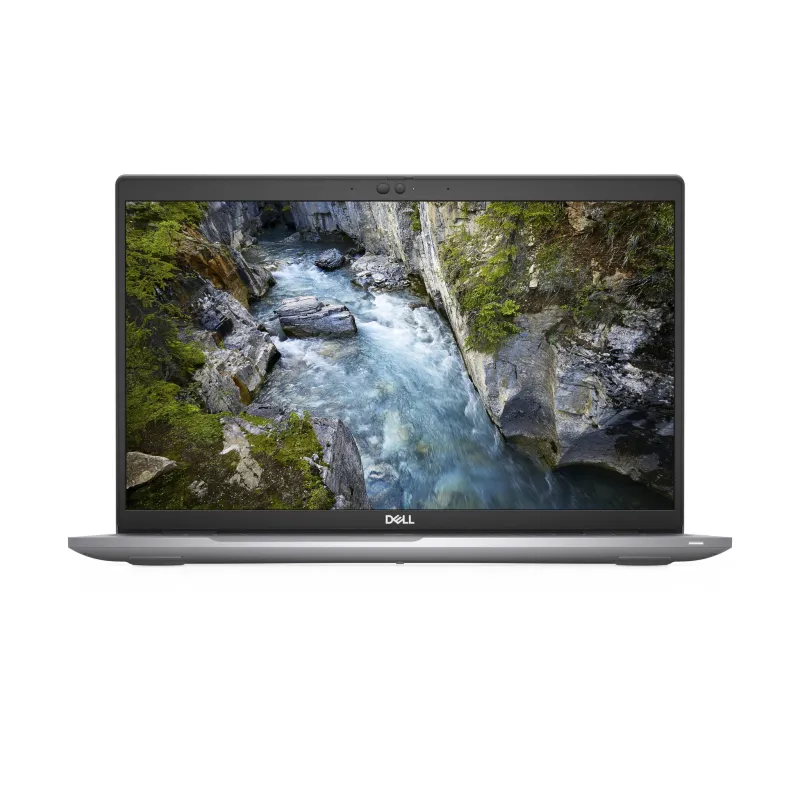

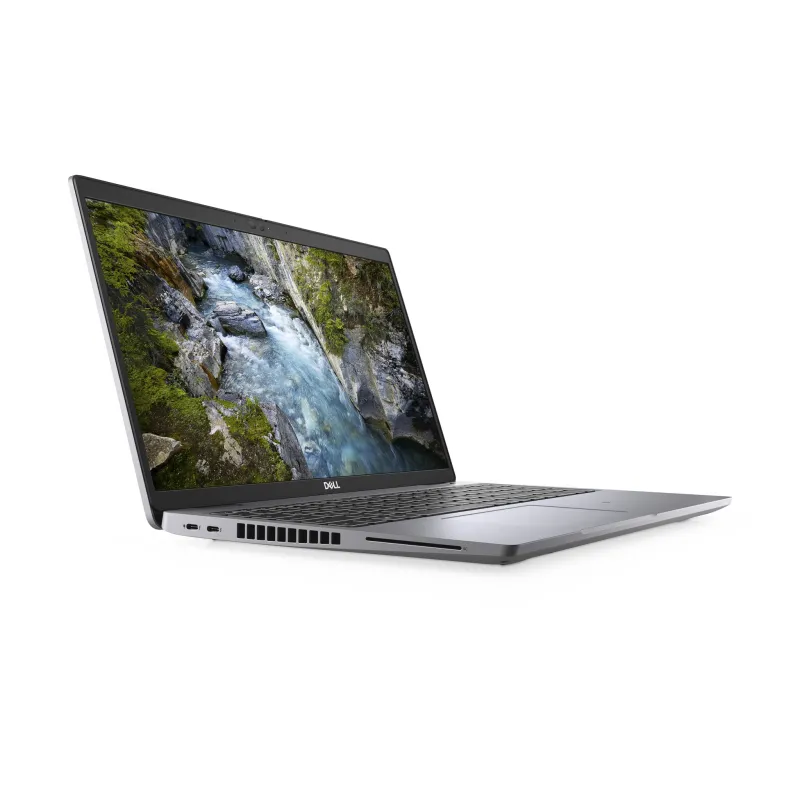

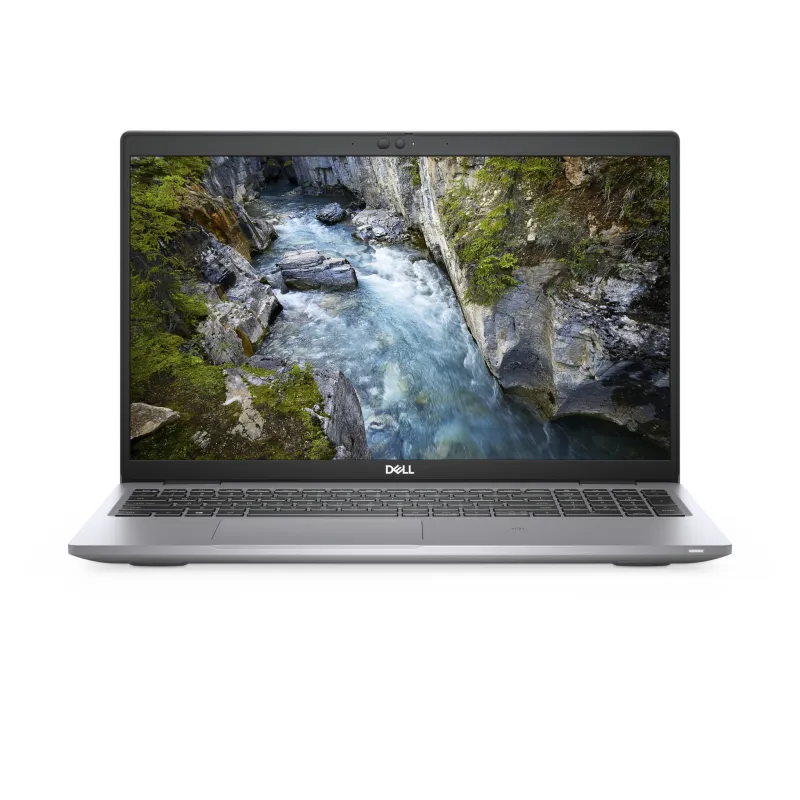

DELL Precision 3560 Intel® Core™ i7 i7-1165G7 Mobile workstation 39.6 cm (15.6″) Full HD 16 GB DDR4-SDRAM 256 GB SSD NVIDIA Quadro T500 Wi-Fi 6 (802.11ax) Windows 10 Pro Grey
- Windows 10 Pro 64-bit
- Intel Core i7-1165G7 (12MB Cache)
- 39.6 cm (15.6″) Full HD 1920 x 1080 WVA, NVIDIA Quadro T500 (2GB GDDR6)
- 16GB (3200MHz) DDR4-SDRAM (1 x 16) & 256GB SSD
The power is in the details
Redesigned 15″ mobile workstation with Dell Optimizer for Precision, the latest Intel® Core™ processors and NVIDIA® pro graphics for a best-in-class immersive user experience.
| Design |
| Intel® vPro™ Platform Eligibility |
No |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Mobile workstation |
| Display |
| Contrast ratio (typical) |
700:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Pixel density |
141 ppi |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
WVA |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Configurable TDP-down |
12 W |
| Configurable TDP-down frequency |
1.2 GHz |
| Configurable TDP-up |
28 W |
| Configurable TDP-up frequency |
2.8 GHz |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Processor boost frequency |
4.7 GHz |
| Processor cores |
4 |
| Processor model |
i7-1165G7 |
| Processor generation |
11th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
2 GB |
| Discrete graphics card model |
NVIDIA Quadro T500 |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Speaker power |
2 W |
| Speakers manufacturer |
Waves |
| Number of built-in speakers |
2 |
| Audio system |
MaxxAudio Pro |
| Audio chip |
Realtek ALC3204 |
| Camera |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer |
Intel |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 2×2 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Full-size keyboard |
Yes |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
SinglePoint |
| Software |
| Trial software |
Microsoft Office 30 day |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Idle States |
Yes |
| Battery |
| Battery weight |
250 g |
| Battery charge indicator |
Yes |
| Fast charging |
Yes |
| Battery recharge time |
3 h |
| Battery voltage |
15.2 V |
| Battery capacity |
63 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
6.5 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
130 W |
| Security |
| Password protection |
Yes |
| Windows Hello |
Yes |
| Face recognition |
Yes |
| Smart card reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
140 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
| Height (rear) |
2.21 cm |
| Height (front) |
1.99 cm |
| Depth |
236.2 mm |
| Width |
357.8 mm |
| Weight |
1.59 kg |
| Packaging data |
| Package weight |
3 kg |
| Package height |
315 mm |
| Package depth |
82 mm |
| Package width |
492 mm |
| General |
| Product family |
Precision |
| Product series |
3000 |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
