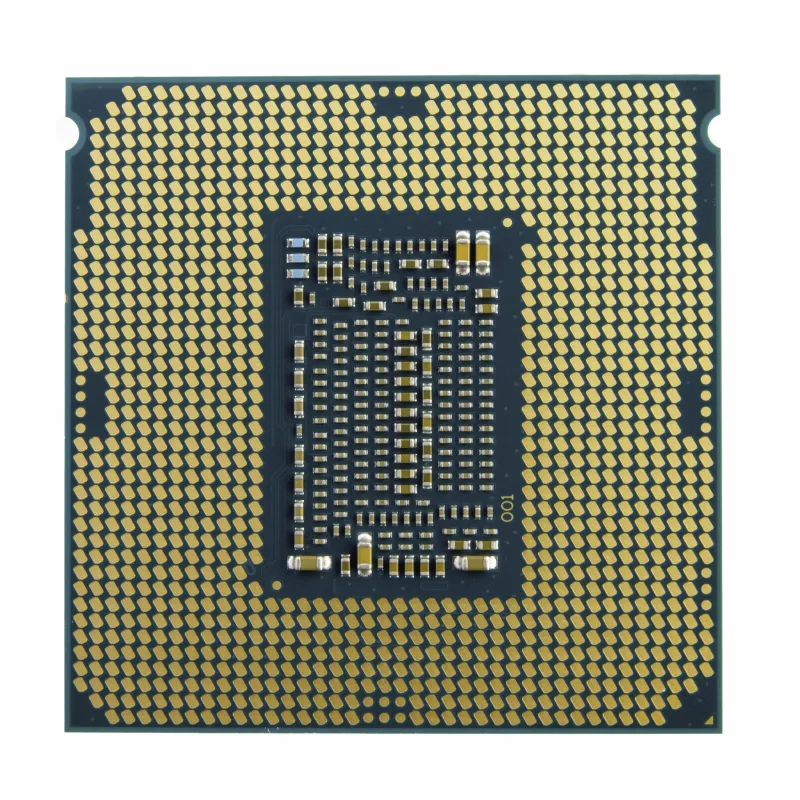

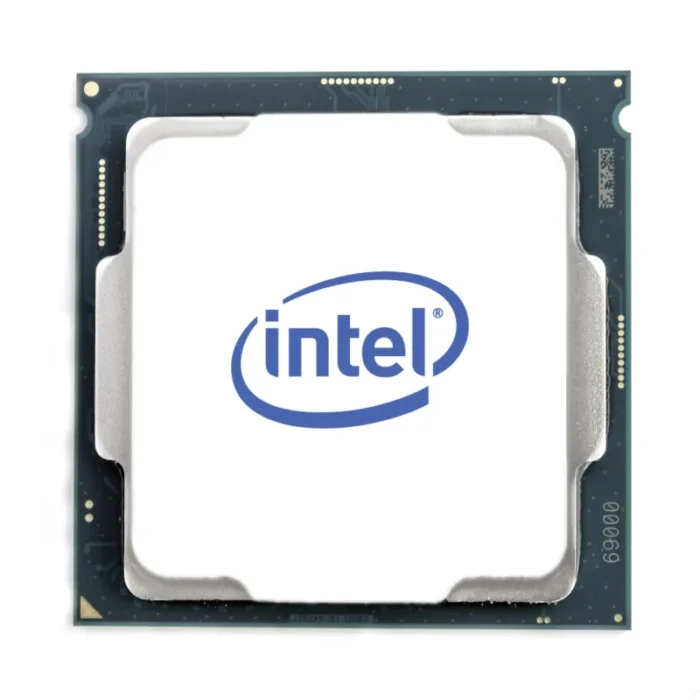

DELL Xeon Silver 4309Y processor 2.8 GHz 12 MB
- Intel Xeon Silver 4309Y 2.8 GHz
- 12 MB LGA 4189
- Processor cores: 8 10 nm 64-bit 105 W
- Maximum internal memory supported by processor: 6.14 TB DDR4-SDRAM
The Intel Xeon® Silver 4309Y 2.8GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4309Y 2.8GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
| Processor | |
|---|---|
| Processor ARK ID | 215275 |
| Processor codename | Ice Lake |
| Thermal Design Power (TDP) | 105 W |
| Processor cache | 12 MB |
| Processor boost frequency | 3.6 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 10.4 GT/s |
| Processor threads | 16 |
| Component for | Server/workstation |
| Cooler included | No |
| Box | No |
| Processor lithography | 10 nm |
| Processor socket | LGA 4189 |
| Processor cores | 8 |
| Processor base frequency | 2.8 GHz |
| Processor model | 4309Y |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Octa-channel |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 6.14 TB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G178966 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Scalability | 2S |
| Embedded options available | No |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| PCI Express slots version | 4.0 |
| Maximum number of PCI Express lanes | 64 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | No |
| Intel® Speed Select technology – Performance Profile (Intel® SST-PP) | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Maximum Enclave Size Support for Intel® SGX | 8 GB |
| Intel® Total Memory Encryption | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tcase | 76 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Technical details | |
|---|---|
| Launch date | Q2’21 |
| Status | Launched |
| Memory speed (max) | 2667 MHz |
| Number of UPI links | 2 |
| Supported memory types | DDR4-SDRAM |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Weight & dimensions | |
|---|---|
| Processor package size | 77.5 x 56.5 mm |
| Other features | |
|---|---|
| Maximum internal memory | 6 TB |
