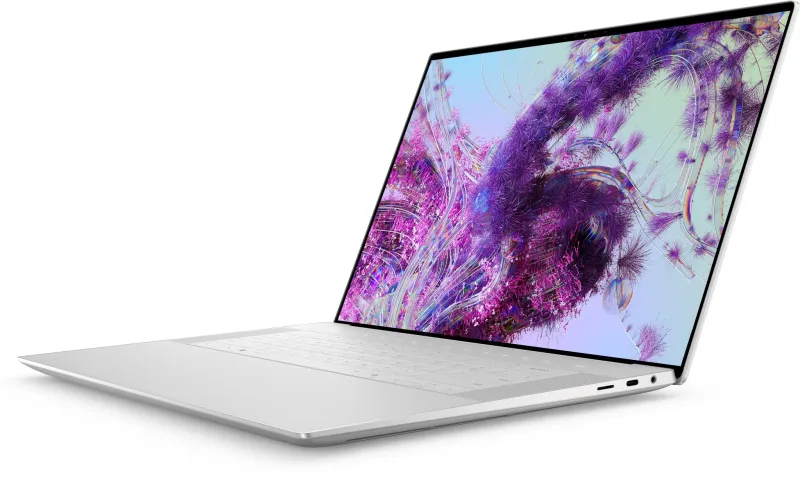

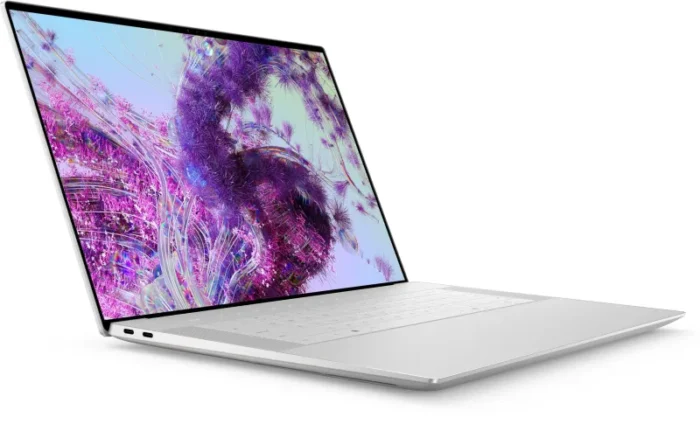

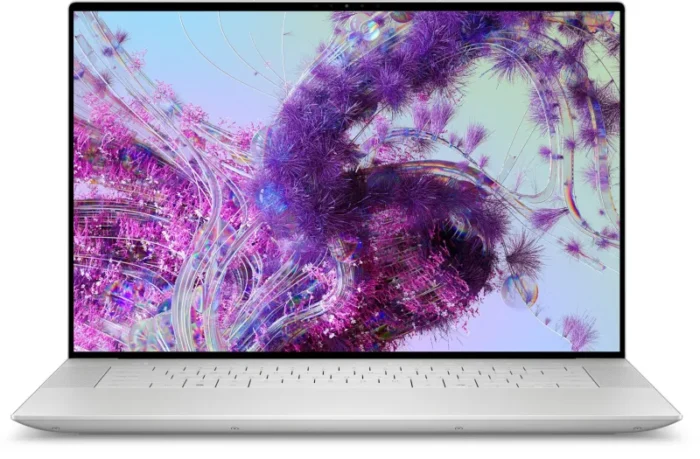

DELL XPS 9640 Intel Core Ultra 7 155H Laptop 41.4 cm (16.3″) Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 7 (802.11be) Windows 11 Pro Silver
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 155H (24MB Cache)
- 41.4 cm (16.3″) Full HD+ 1920 x 1200 WLED, NVIDIA GeForce RTX 4060 (8GB GDDR6)
- 32GB LPDDR5x-SDRAM & 1000GB SSD
Power your passions with premium, precision-crafted laptops with innovative features.
| Design | |
|---|---|
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Silver |
| Product type | Laptop |
| Display | |
|---|---|
| Contrast ratio (typical) | 2000:1 |
| Maximum refresh rate | 120 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel density | 139 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:10 |
| LED backlight | Yes |
| Panel type | WLED |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 41.4 cm (16.3″) |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Efficient-core base frequency | 0.9 GHz |
| Performance-core base frequency | 1.4 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Low Power Efficient-cores | 2 |
| Efficient cores | 8 |
| Performance cores | 6 |
| Processor boost frequency | 4.8 GHz |
| Processor threads | 22 |
| Processor cores | 16 |
| Processor model | 155H |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Memory data transfer rate | 6400 MT/s |
| Maximum internal memory | 32 GB |
| Memory form factor | On-board |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speakers manufacturer | Waves |
| Number of built-in speakers | 4 |
| Audio system | MaxxAudio Pro |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2×2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 3 |
| Performance | |
|---|---|
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | McAfee Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 380 g |
| Fast charging | Yes |
| Battery recharge time | 4 h |
| Battery voltage | 11.7 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| USB charging current | 6.5 A |
| USB charging voltage | 5,9,15,20 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 – 10668 m |
| Operating altitude | -15.2 – 3048 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 0 – 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 18.7 mm |
| Depth | 240.1 mm |
| Width | 358.2 mm |
| Weight | 2.13 kg |
| General | |
|---|---|
| Product family | XPS |
| Product series | 16 |
| Carbon footprint | |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 2 |
| Total carbon emissions, standard deviation (kg of CO2e) | 62 |
| Carbon emissions, energy usage (kg of CO2e) | 46 |
| PAIA version | 1.4.0 |
| Total carbon footprint (kg of CO2e) | 363 |
| Carbon emissions, manufacturing (kg of CO2e) | 297 |
| Carbon emissions, logistics (kg of CO2e) | 19 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 318 |
| Packaging content | |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Other features | |
|---|---|
| Graphics card | 50W |
