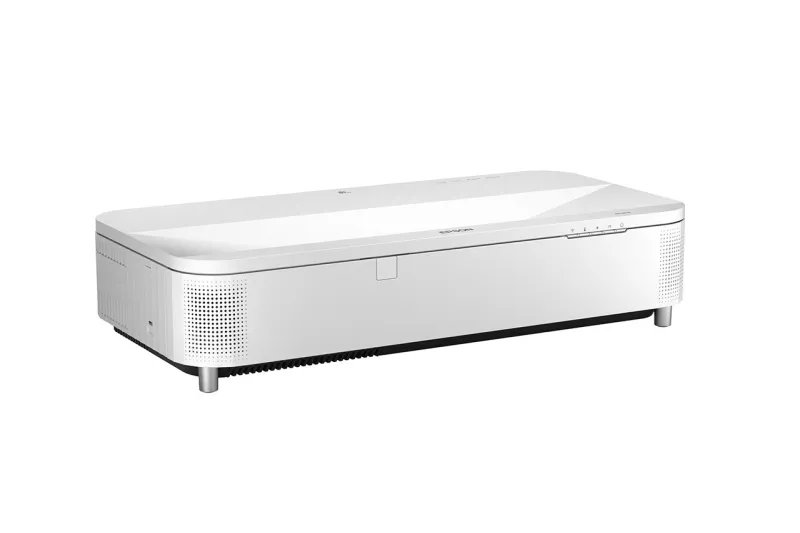

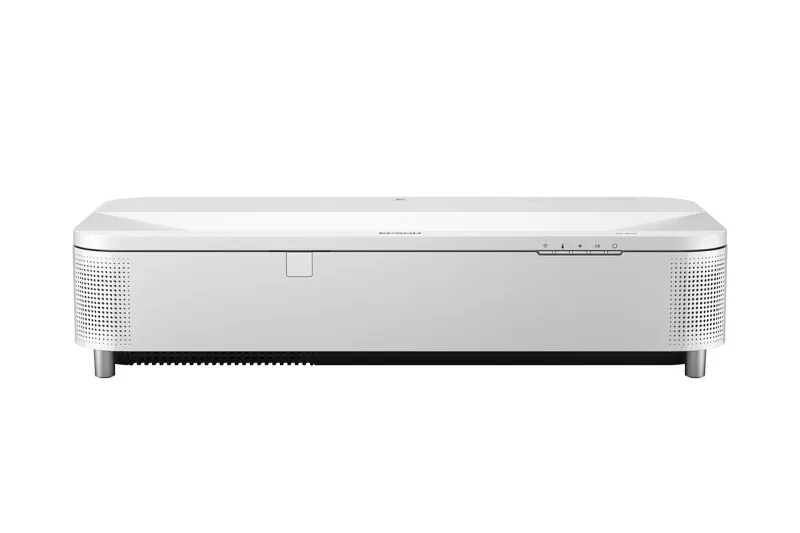

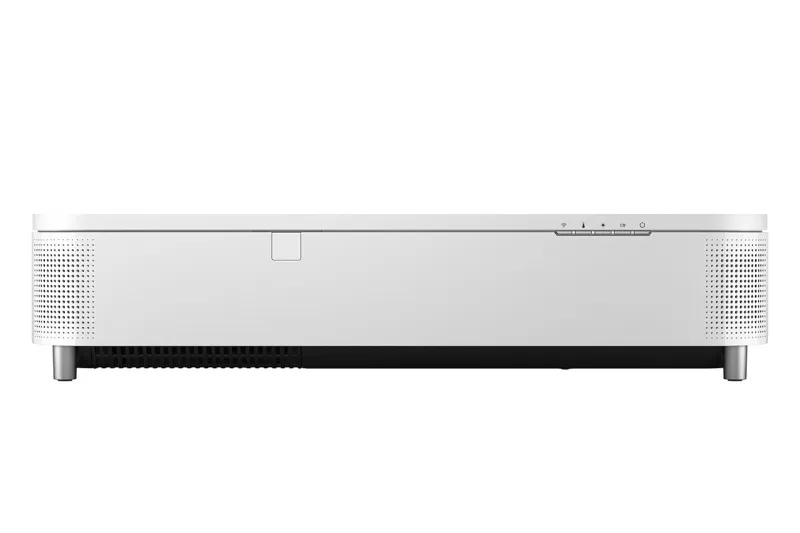

Epson EB-810E Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920×1080) White
- Business Ultra short throw projector White
- 3LCD 5000 ANSI lumens
- Laser 20000 h
- 1080p (1920×1080) 16:9 2500000:1
- Screen size compatibility: 2032 – 4064 mm (80 – 160″)
- Focus: Manual
- Ethernet LAN Wi-Fi
- AC 290 W
EB-810E, Epson’s first 4KE super-ultra-short-throw laser display designed for businesses, hybrid working and immersive spaces
The EB-810E can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.
EB-810E’s super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.
With 5,000 lumens CLO and 3LCD technology, the EB-810E is bright and vibrant up-to 160″, which enables content visibility from all angles and distances. The experience is immersive and it’s extremely simple to use.
Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing.
Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple. The ideal display solution suitable for different room sizes, combined with flexible installation options.
The EB-810E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing.
Paired with Epson’s Ambient Light Rejection Screen, the EB-810E’s image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.
| Projector | |
|---|---|
| Vertical scan range | 192 – 240 Hz |
| Screen size compatibility | 2032 – 4064 mm (80 – 160″) |
| Smart projector | No |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | 1080p (1920×1080) |
| Projection technology | 3LCD |
| Projector brightness | 5000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 0.16 – 0.40:1 |
| Zoom ratio | 1.35:1 |
| F-number (relative aperture) | 1.8 |
| Fixed focal length | 2.3 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| 3D | No |
| Full HD | Yes |
| Analog signal format system | Not supported |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Service port type | USB Type-B |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI ports quantity | 3 |
| Network | |
|---|---|
| Miracast | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported | Yes |
| Noise level (economic mode) | 26 dB |
| Noise level | 35 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop, Wall |
| Product colour | White |
| Market positioning | Business |
| Product type | Ultra short throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (economy mode) | 286 W |
| Power consumption (PowerSave) | 0.4 W |
| Power consumption (max) | 380 W |
| Power consumption (typical) | 290 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 156 mm |
| Depth | 341 mm |
| Width | 695 mm |
| Weight | 12.5 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Batteries included | Yes |
| Remote control included | Yes |
