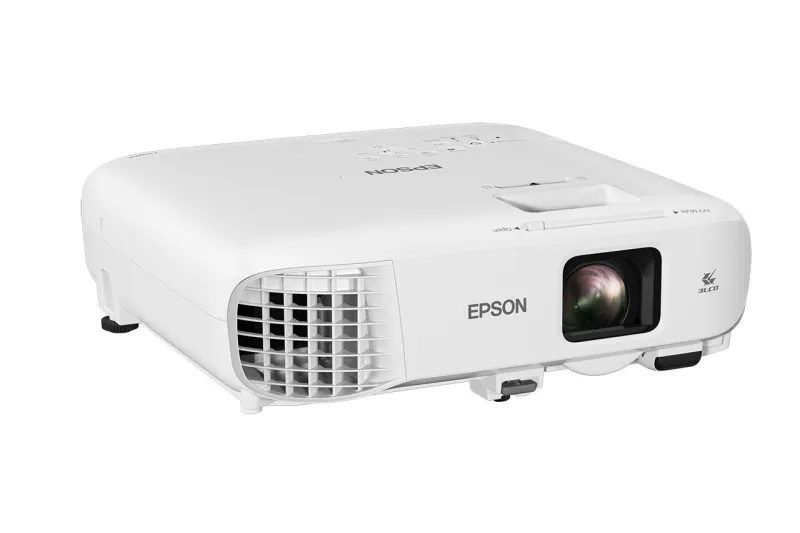

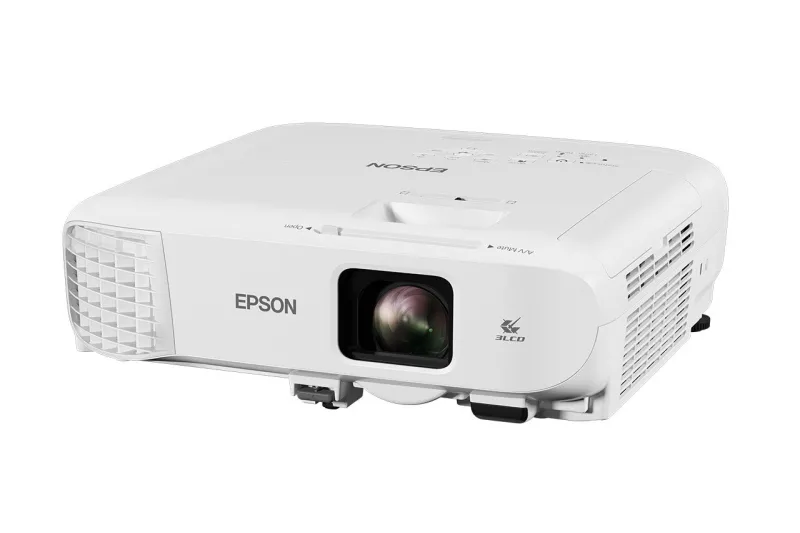

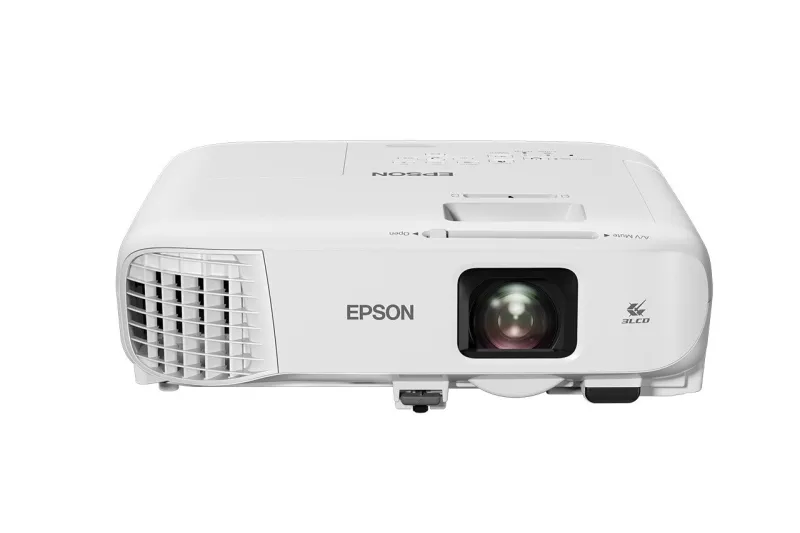

Epson EB-E20 Standard throw projector 3400 ANSI lumens 3LCD XGA (1024×768) White
- High-quality bright images: 3LCD technology and equally high White and Colour Light Output
- Portable: Small and light enough to be moved easily and used in multiple rooms
- High quality sound: Built-in 5W speaker for crisp, clear sound
- Low total cost of ownership: Lamp life up to 12,000 hours in Eco mode
- Versatile and flexible control: Project from many sources with HDMI
Affordable display solution
With the versatility to mount just about anywhere, bright, sharp images and low maintenance, the EB-E20 is a great all-rounder for business.
The EB-E20 offers a very versatile proposition that can be mounted just about anywhere. Meanwhile long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 350 inches. 3,400-lumen performance combines with a high contrast ratio of 15,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Easy to use
Built-in lens shutter that allows easy restart and shut down. User friendly home screen that enables you to confidently and easily connect your device to the projector.
Multiple inputs on one display with audio
Display size matters; scalable up to 350” to enhance your viewing experience and ensure that content shown is not too small. That way everyone in your meeting has the same opportunities to share and engage.
High quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly without the need for separate external speakers.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Matrix size | 1.4 cm (0.55″) |
| Vertical scan range | 100 – 120 Hz |
| Number of colours | 1.073 billion colours |
| Screen size compatibility | 762 – 8890 mm (30 – 350″) |
| Supported aspect ratios | 4:3 |
| Native aspect ratio | 4:3 |
| Contrast ratio (typical) | 15000:1 |
| Projector native resolution | XGA (1024×768) |
| Projection technology | 3LCD |
| Projector brightness | 3400 ANSI lumens |
| Light source | |
|---|---|
| Lamp power | 210 W |
| Lamp type | UHE |
| Service life of light source (economic mode) | 12000 h |
| Service life of light source | 6000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Throw ratio | 1.44 – 1.95:1 |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| Fixed focal length | 16.7 mm |
| Focus | Manual |
| Video | |
|---|---|
| 3D | No |
| Full HD | No |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| PC in (D-Sub) | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232C |
| USB 2.0 Type-B ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI connector type | Full-size |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 3 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| On Screen Display (OSD) | Yes |
| Preset modes | Blackboard, Dynamic, Presentation, Theatre, sRGB |
| Noise level (economic mode) | 28 dB |
| Noise level | 37 dB |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Desktop, Ceiling |
| Product colour | White |
| Market positioning | Portable |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (economy mode) | 225 W |
| Power consumption (typical) | 327 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 5 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 87 mm |
| Depth | 282 mm |
| Width | 309 mm |
| Weight | 2.7 kg |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
