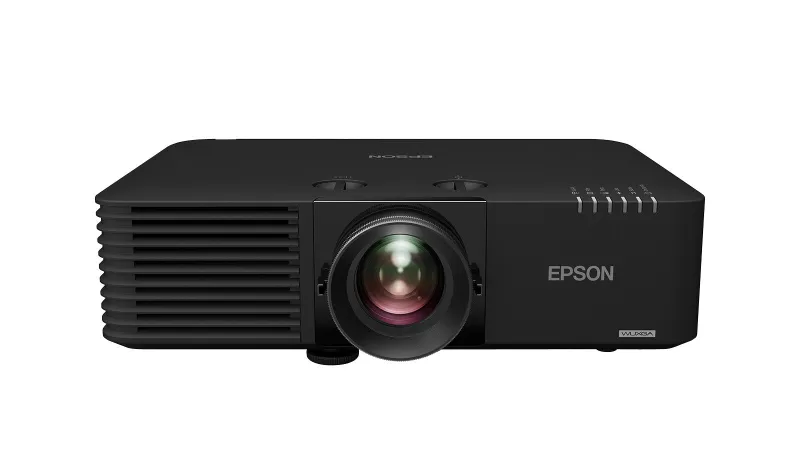

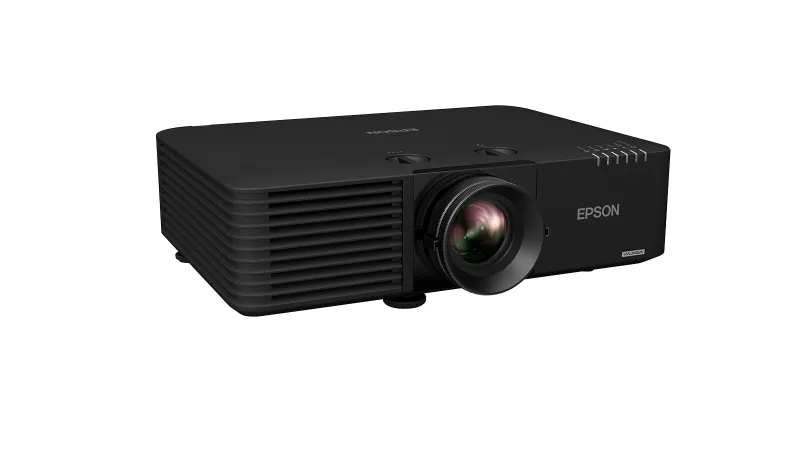

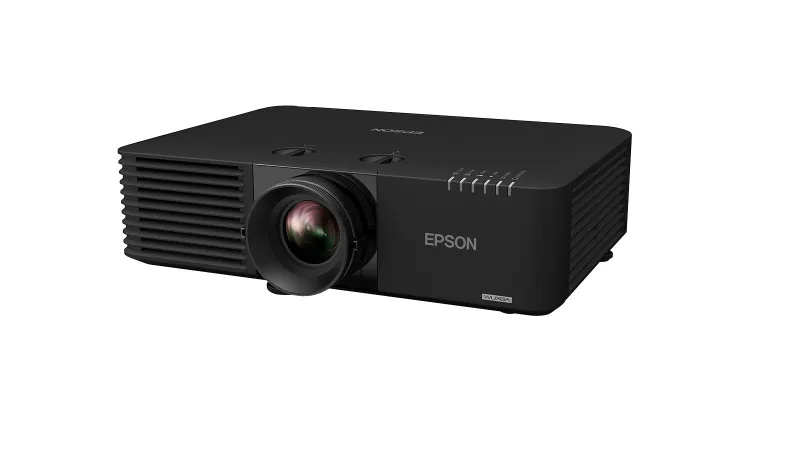

Epson EB-L635SU Standard throw projector 6000 ANSI lumens 3LCD WUXGA (1920×1200) Black
- 6,000-lumen brightness: Crisp images and bright colours, even in well-lit rooms
- WUXGA resolution: Sharp Full HD images for excellent clarity
- Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
- Easy, flexible installation: Lightweight and compact design with wide lens shift
- Short-throw projection: Large images in tight spaces (0.8:1 throw ratio)
As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with more compact short-throw display solutions. The EB-L635SU delivers effective, practical and creative applications to meet the display needs in education, corporates, museums and visitor attractions. All achieved without sacrificing image quality or lens shift flexibility.
Bright, cost-effective display solutions
Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L635SU offers impressive 6,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 0.8:1 throw ratio, 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L635SU is capable of large format and blended displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L635SU comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
Easy and flexible installation
This stylish and compact projector supports 360 degree installation without compromising the display quality and supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs. Also available in white.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Matrix size | 1.7 cm (0.67″) |
| Projector brightness (economic mode) | 4200 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Projection distance (wide) | 0.9 – 3.5 m |
| Screen size compatibility | 1270 – 5080 mm (50 – 200″) |
| Smart projector | No |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 6000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 0.80:1 |
| Zoom ratio | 1.35:1 |
| Zoom type | Auto |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.7 – 1.7 |
| Fixed focal length | 11.8 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI connector type | Full-size |
| HDMI ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Miracast | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | Philippines |
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Noise level | 38 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop |
| Product colour | Black |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 258 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 345 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 12.3 kg |
| Package height | 210 mm |
| Package depth | 560 mm |
| Package width | 540 mm |
| Height | 136 mm |
| Depth | 334 mm |
| Width | 440 mm |
| Weight | 8.4 kg |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Cables included | AC |
| Manual | Yes |
| WLAN adapter included | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
