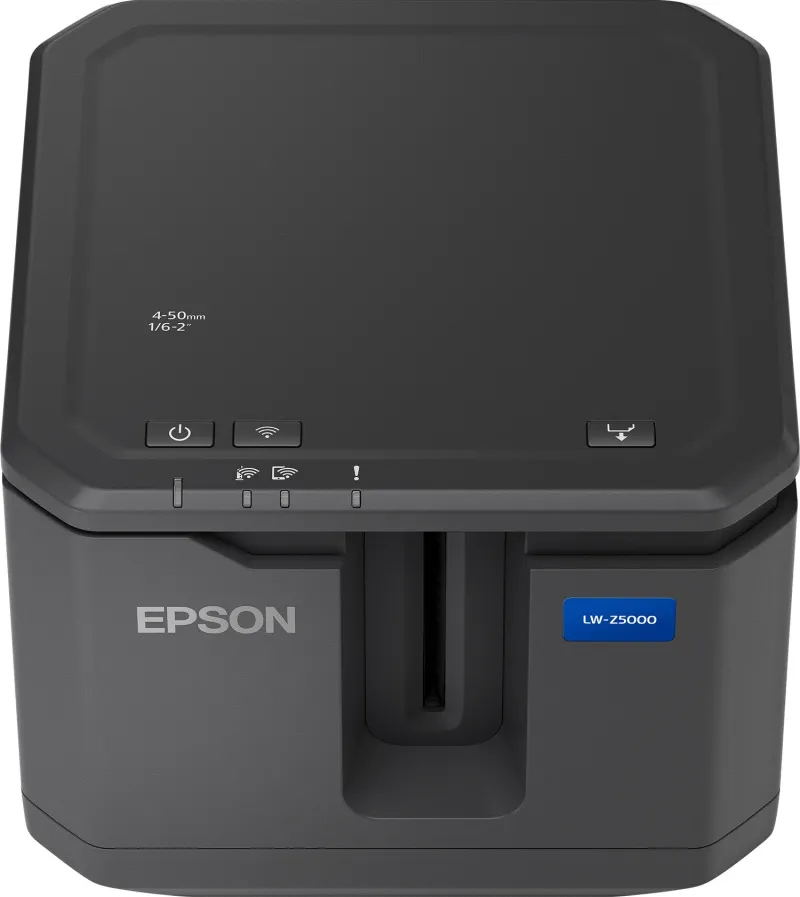

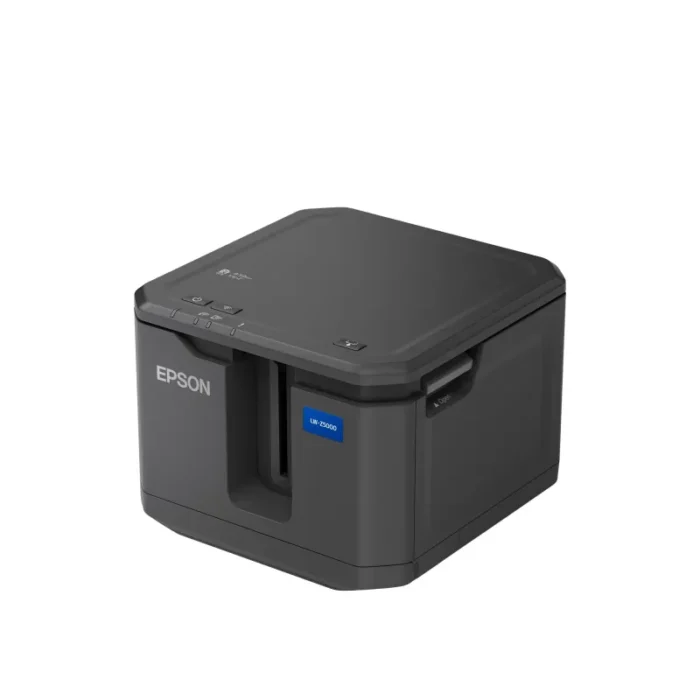

Epson LabelWorks LW-Z5000BE label printer Thermal transfer 360 x 360 DPI 50 mm/sec Wired & Wireless Ethernet LAN Wi-Fi
- Economical: Big rolls deliver low running costs
- Versatile: Accepts all label widths (4mm – 50mm) and many material types
- Time-saving: Portable device means you’re able to print high volumes on the spot
- Flexible: Supports a wide range of applications
- Options: An automatic rewinder is available to save you time
Industrial label maker
Versatile label maker for high print volume users who value time-saving functionality.
This portable industrial label maker boasts PC, smart device and apps connectivity (USB, Ethernet, Wi-Fi, and Wi-Fi Direct) for ease of use at your desk or on the move. It’s been developed for those working in data centres, maintenance, repair, overhaul (MRO), factories, warehouses, laboratories, construction, and electrical maintenance.
Versatile
It supports a wide range of media (from 4mm to 50mm width labels), including cartridges and big rolls; and many material types including resistance, regulation and market standard compliancy.
Flexible
The applications are as varied as the media choices: cabling and wiring, audio and video identification, asset management, and safety and security signs. They’re designed to save you time when setting, editing, printing and handling.
Time-saving
application (editing phase), fast print speeds and big (media) roll support. The LW-Z5000BE’s portability means you’re able to print high volumes on the move.
Economical
Designed with a low total cost of ownership (TCO) in mind. Big rolls allow running costs to be cut down dramatically. A clear ROI should be seen within a few months. Also, enhancements made to setting, editing, printing and handling are designed to positively effect the overall TCO.
| Printing | |
|---|---|
| Text alignment | Center, Justify, Left, Manual, Right |
| Text style | Bold, Italic, Shadow, Normal, Invert, Outline, Strikethrough, Underline |
| Flag style printing | Yes |
| Wire wrap printing | Yes |
| Vertical printing | Yes |
| Mirror printing | Yes |
| Margin depth settings | 1mm, Auto, Fixed, Manual |
| Maximum print height | 5.2 cm |
| Maximum printing width | 5 cm |
| Print speed | 50 mm/sec |
| Number of printable dots | 616 dot |
| Maximum resolution | 360 x 360 DPI |
| Print technology | Thermal transfer |
| Paper handling | |
|---|---|
| Half-cutter | Yes |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Open cover detection | Yes |
| Tape end detection | Yes |
| Tape size detection | Yes |
| Number of printing lines (max) | Variable |
| Alphanumeric memory | Depends on the user’s PC |
| Units supported | mm, inch |
| Reset types | Software reset |
| Pick & Print function | Yes |
| Drop Stop function | Yes |
| Tape width | 5 cm |
| Fixed length | Yes |
| Number of symbols | 466 |
| Built-in barcodes | Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1-128, GS1 DataBar, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Power | |
|---|---|
| Auto power off | Yes |
| Power consumption (off) | 0.23 W |
| Power consumption (printing) | 29 W |
| General | |
|---|---|
| Product family | LabelWorks |
| System requirements | |
|---|---|
| Minimum display resolution requirement | 1024 x 768 pixels |
| Minimum storage drive space | 100 MB |
| Compatible operating systems | Android 4.0+, Windows 10, Windows 10 (32/64 bit), iOS 6.0+ |
| Weight & dimensions | |
|---|---|
| Weight | 2.9 kg |
| Height | 144 mm |
| Depth | 198 mm |
| Width | 193 mm |
| Packaging data | |
|---|---|
| Package weight | 5.82 kg |
| Package height | 325 mm |
| Package depth | 390 mm |
| Package width | 285 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Bundled software | Epson Label Editor |
| AC adapter included | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Products per pallet | 48 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 60 pc(s) |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Font size | Selectable |
| Autoincrement | 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time |
| Feed button | 1 |
| Multi-block | Wählbar |
| Handle(s) | Yes |
| Other features | |
|---|---|
| Clock function | Yes |
| Number of tables | 8 |
| Country of origin | China |
| LED indicators | Power |
| Number of frames | 86 |
| Lanyard hole | Yes |
| Printing history features | Browsing |
| Printing history | Yes |
