Epson WorkForce DS-970 Sheet-fed scanner 600 x 600 DPI A3 Black, White
- High-speed scanning: 100-page ADF and 85ppm (170ipm) scanning speed
- Low intervention: Active Separation Roller system to prevent double feeding
- Built-in protection: Ultrasonic and paper protection sensors to detect processing errors
- Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)
- Optional Network Interface: Enable device sharing in a department. Create pre-defined job profiles

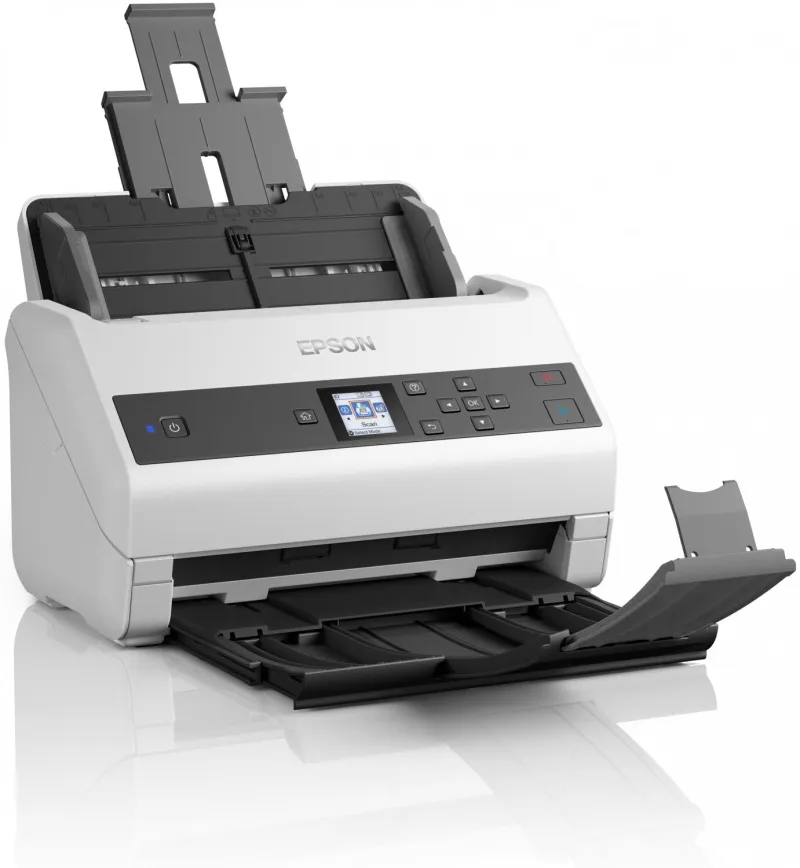

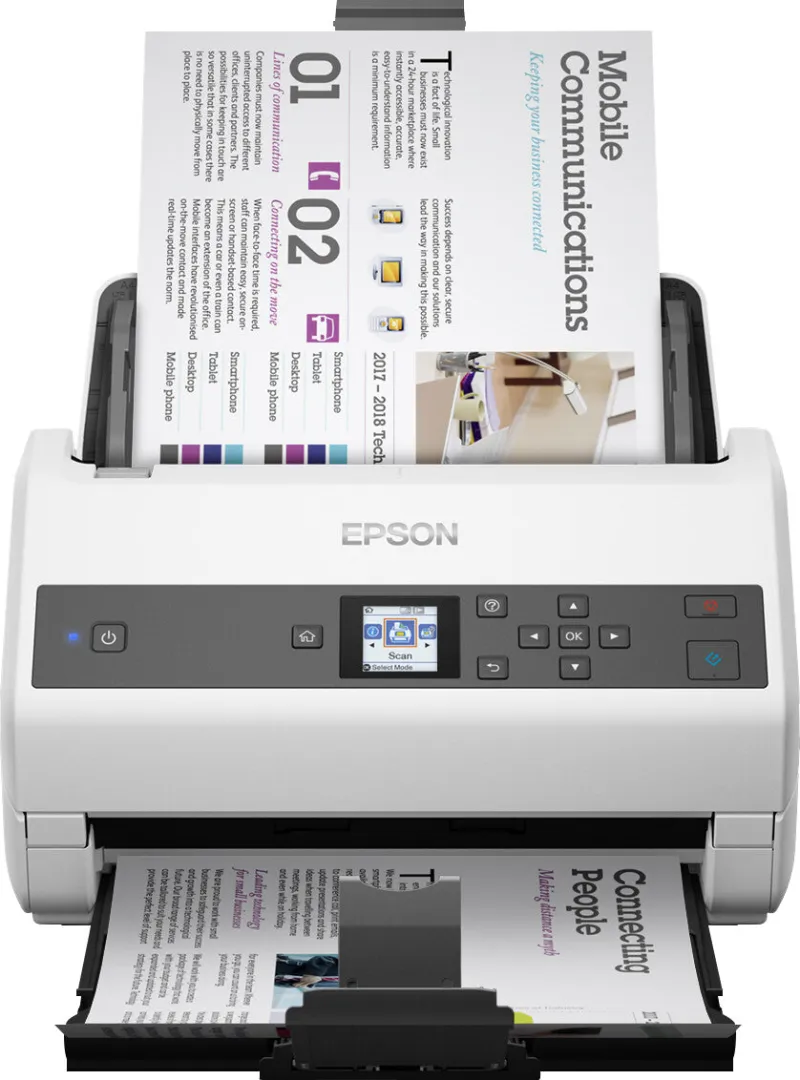

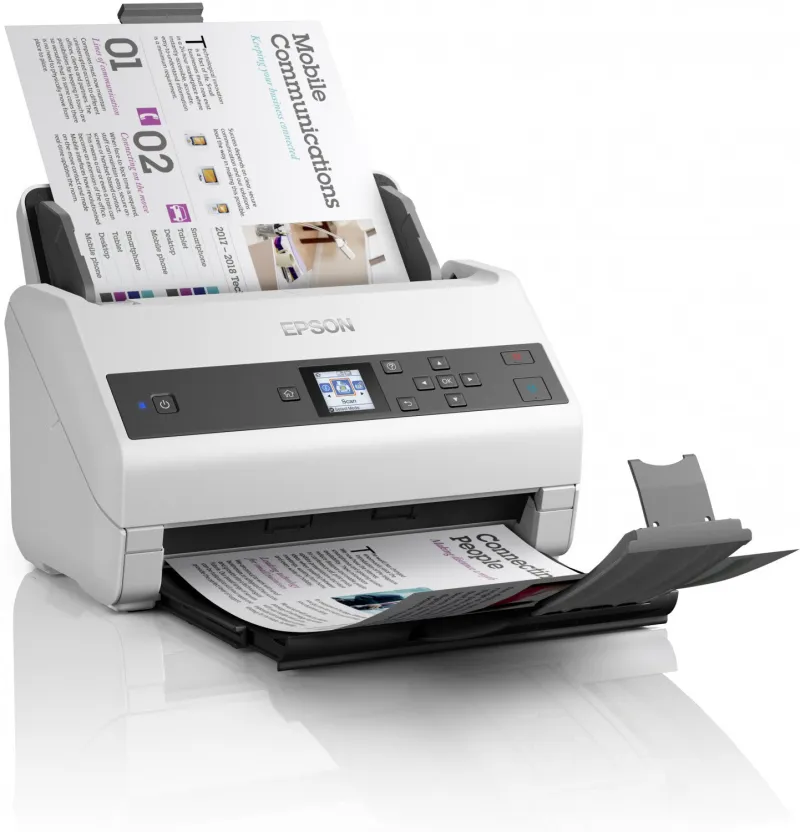

WorkForce DS-970
Create a better business environment with the support of a global leader in document scanning. When the goal is getting documents to the right place as fast as possible, trust in the WorkForce DS-970 – Epson’s fastest scanner. High performance matched with an endurance with easy-to-use features that put you in control of your documents.
Ultimate performance
Epsons’ fastest A4 document scanner offers class-leading performance1. With a 100-page ADF, 85ppm/170ipm scanning speed and continuous scanning with its automatic feed mode, the WorkForce DS-970 gets through large jobs quickly and efficiently. Scroll through pre-defined jobs easily using the intuituve panel and get your documents to the right place in just a few presses of a button. TWAIN, WIA and ISIS drivers are available for enhanced compatibility with document management systems.
Efficient document processing
Stay in control of the document process with a scanner capable of scanning a wide range of media from 27gsm to 413gsm and a long paper scanning mode up to 6096mm. For documents that cannot be scanned via the ADF – three different flatbed solutions are available up to A3 in size. Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes. The Active Separation Roller System prevent document double feeds, ensuring that every piece of paper gets scanned, and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.
| Scanning |
| Black/white scanning colour modes |
Monochrome |
| ADF scan speed (colour, A4) |
170 ppm |
| ADF scan speed (b/w, A4) |
85 ppm |
| Output monochrome depth |
1 bit |
| Output colour depth |
24 bit |
| Input colour depth |
30 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Design |
| Colour display |
Yes |
| Display diagonal |
3.68 cm (1.45″) |
| Display |
LCD |
| Product colour |
Black, White |
| Built-in display |
Yes |
| Scanner type |
Sheet-fed scanner |
| Performance |
| Scan drivers |
SANE, TWAIN, WIA |
| Daily duty cycle (max) |
9000 pages |
| Scan file formats |
BMP, JPEG, PDF, PNG, TIFF |
| Light source |
LED |
| Sensor type |
CIS |
| Input capacity |
| Auto document feeder (ADF) input capacity |
100 sheets |
| Paper handling |
| Auto Document Feeder (ADF) media weight |
27 – 413 g/m² |
| Legal |
Yes |
| Letter |
Yes |
| ISO B-series sizes (B0…B9) |
B4, B5, B6 |
| ISO A-series sizes (A0…A9) |
A4, A5, A6 |
| Scanning media types supported |
Business Card, Plastic Card |
| Maximum ISO A-series paper size |
A3 |
| Ports & interfaces |
| Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB port |
Yes |
| Network |
| Supported network protocols |
TCP/IP, DHCP, DNS, SNMP, SLP |
| Power |
| Power consumption (sleep) |
1.4 W |
| Input voltage |
100-240 V |
| Sleep mode |
Yes |
| AC input frequency |
50-60 Hz |
| Power consumption (off) |
0.1 W |
| Power consumption (standby) |
8.5 W |
| Power supply type |
AC |
| Power consumption (typical) |
20 W |
| Weight & dimensions |
| Weight |
3.6 kg |
| Height |
167 mm |
| Depth |
169 mm |
| Width |
296 mm |
| Packaging content |
| Bundled software |
Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2 |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Cables included |
AC, USB |
| Warranty card |
Yes |
| Manual |
Yes |
| General |
| Product family |
WorkForce |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008, Windows Server 2012 R2 |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard |
| Operational conditions |
| Storage relative humidity (H-H) |
15 – 85% |
| Operating relative humidity (H-H) |
15 – 80% |
| Storage temperature (T-T) |
25 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Technical details |
| Data compression |
IFF (JPEG(7), CCITT G4, LZW), PDF, JPEG |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
