EVAP Leak Detector Smoke Diagnostic Tool

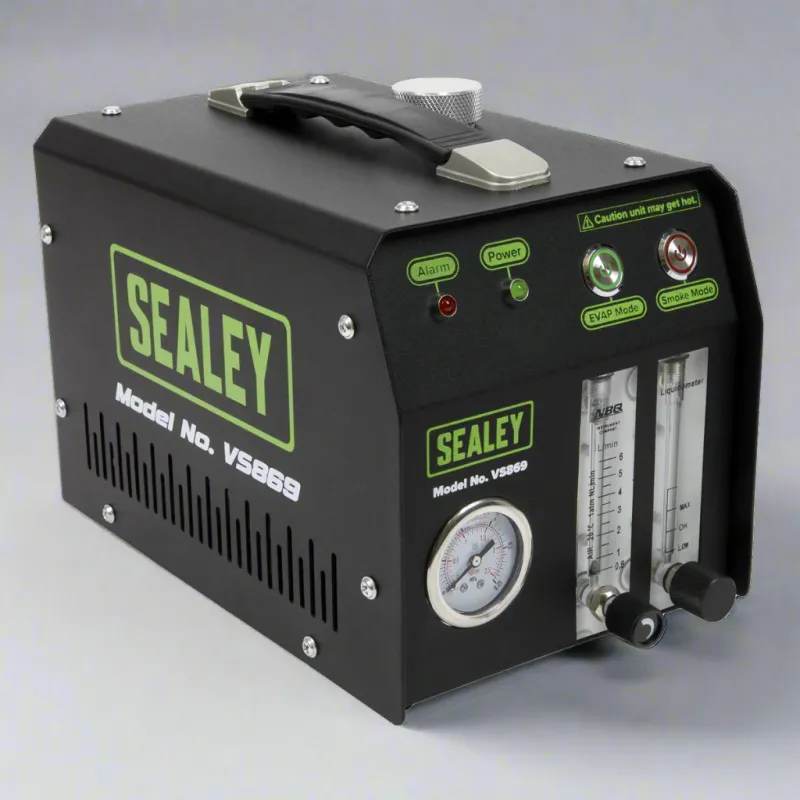

Sealey VS869 EVAP Leak Detector Smoke Diagnostic Tool | Multi-System Testing
The VS869 identifies hard-to-find leaks in multiple vehicle systems including air intake, cooling, evaporation, fuel, exhaust, and vacuum. This 12V diagnostic tool provides both EVAP and standard smoke modes with adjustable flow control, helping technicians locate system leaks quickly and accurately.
Complete System Diagnosis
Locate leaks across multiple vehicle systems with a single tool. The dual-mode operation (EVAP and standard smoke) with flow control makes it suitable for both emissions-related diagnostics and general leak detection, reducing the need for multiple specialized tools.
Efficient Workshop Solution

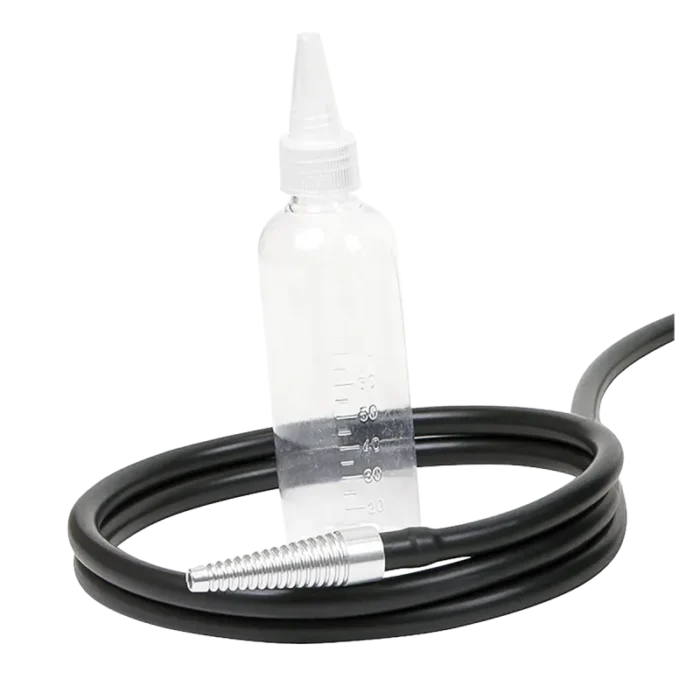

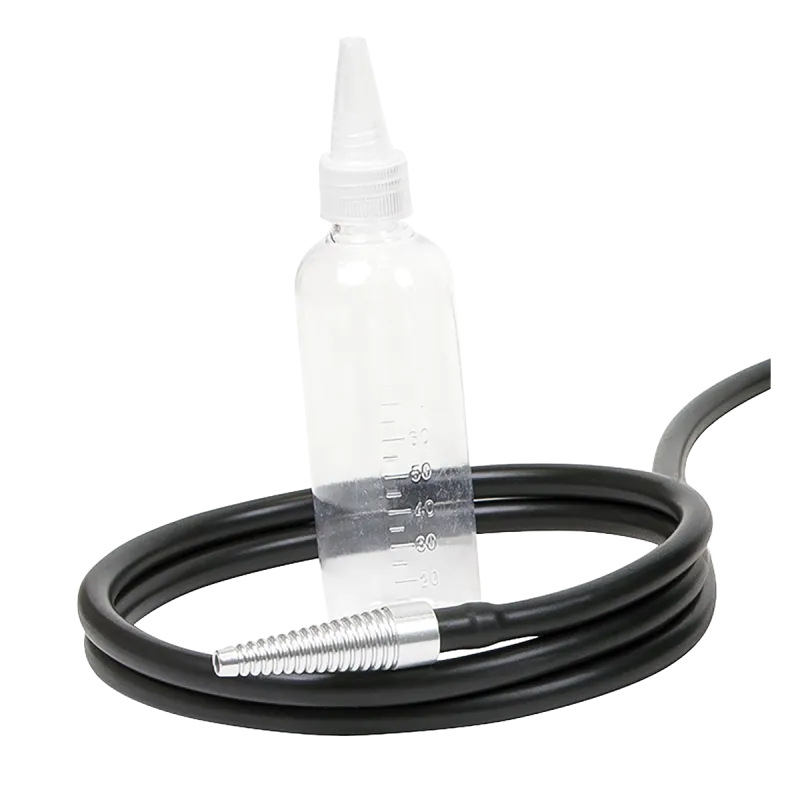

The 1600mm hose provides ample reach around vehicles, while the 15psi maximum input pressure delivers appropriate testing levels for automotive systems. This quick setup reduces diagnostic time compared to traditional pressure-based methods.
Universal Connection System

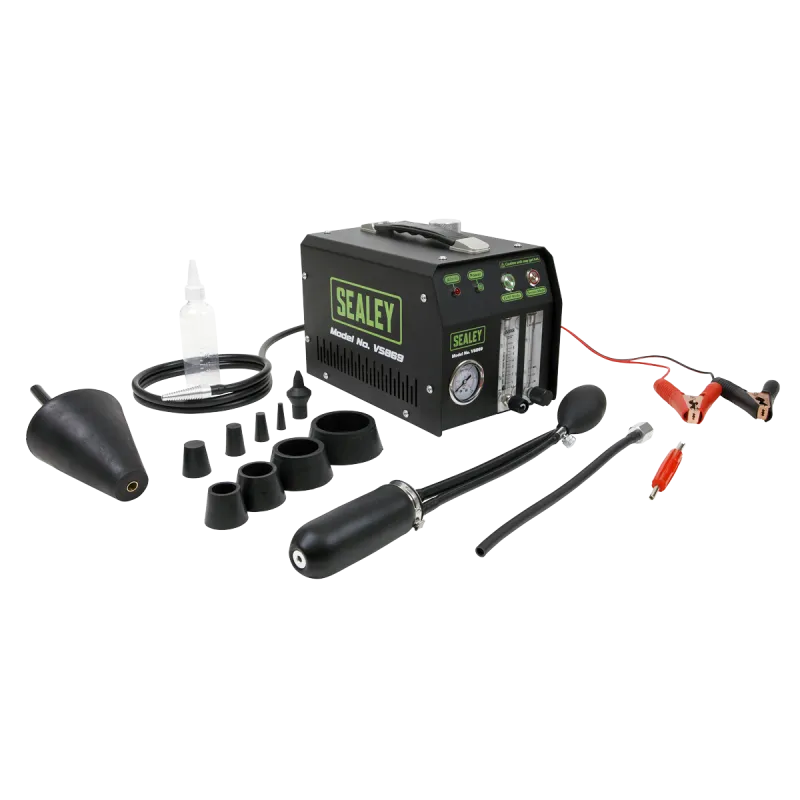

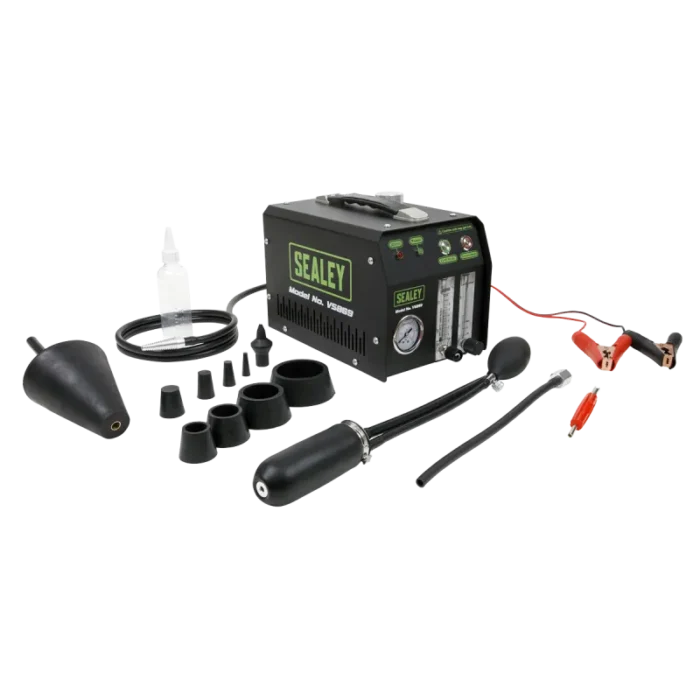

Eight rubber blanking cones (Ø5-75mm) fit various intake and exhaust ports. Additional accessories include an EVAP connector, valve core wrench, and universal airbag adaptor, allowing connection to virtually any automotive system requiring leak testing.
Simple Field Operation
The compact 3.14kg unit connects directly to the vehicle’s 12V battery, eliminating the need for workshop air supply or external power. The 10ml oil reservoir provides sufficient capacity for multiple tests before requiring a refill with standard mineral oil.
