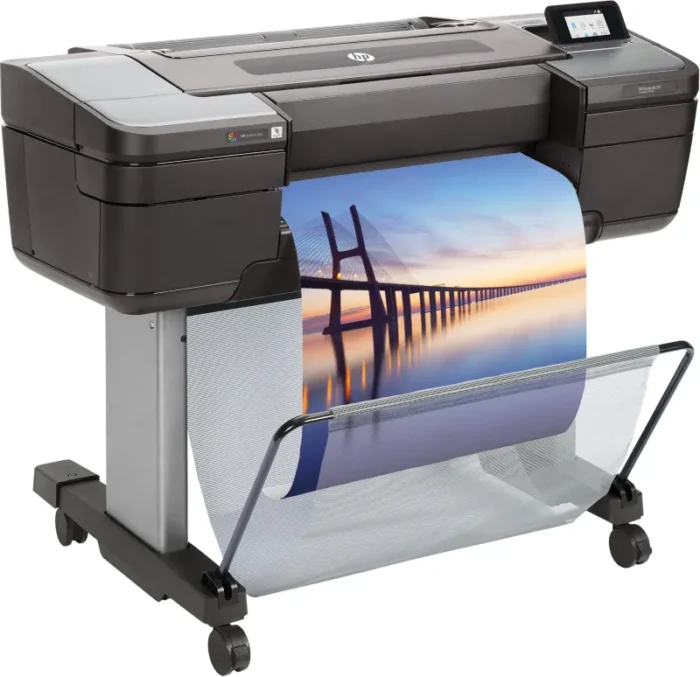

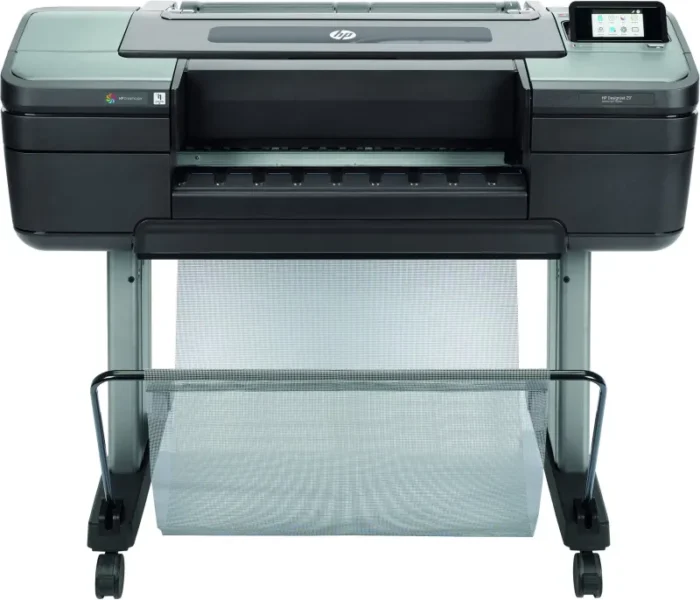

HP Designjet Z9+ 24-in PostScript Printer
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print speed (best quality) |
3.7 m²/h |
| Print speed (normal quality) |
6.9 m²/h |
| Print head |
5 |
| Borderless printing |
Yes |
| Page description languages |
PDF 1.7, PostScript 3, TIFF, HP-GL/2, HP-RTL, JPEG, CALS G4 |
| Number of print cartridges |
4 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Paper handling |
| Roll paper |
Yes |
| Maximum roll diameter |
13.5 cm |
| Media thickness |
0.8 mm |
| ISO A-series sizes (A0…A9) |
A1, A2, A3, A4 |
| Paper tray media types |
Banner, Bond paper, Coated paper, Photo paper |
| Maximum print size |
610 x 1676 mm |
| Ports & interfaces |
| Mobile printing technologies |
HP ePrint |
| RJ-45 ports quantity |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Direct printing |
Yes |
| Wi-Fi Direct |
Yes |
| USB 2.0 ports quantity |
1 |
| USB connector |
USB Type-A |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Performance |
| Certification |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Sound pressure level (printing) |
42 dB |
| Sound power level (standby) |
33 dB |
| Storage media |
HDD |
| Internal storage capacity |
500 GB |
| Internal memory |
4096 MB |
| Control type |
Touch |
| Display |
LED |
| Built-in display |
Yes |
| Product colour |
Black, Grey |
| Brand-specific features |
| HP dynamic security |
Yes |
| HP Web Jetadmin |
Yes |
| HP ePrint |
Yes |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (typical) |
100 W |
| Power consumption (off) |
0.1 W |
| Power consumption (sleep) |
6.5 W |
| Operational conditions |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 40 °C |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainable technologies and materials |
30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; Compatible with FSC®-certified HP large format printing materials and HP Recycled Satin Canvas, and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered |
| Sustainability certificates |
ENERGY STAR, Post-Consumer Recycled Plastic |
| Weight & dimensions |
| Weight |
72 kg |
| Height |
998 mm |
| Depth |
695 mm |
| Width |
1293 mm |
| Packaging data |
| Bundled software |
HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional), HP SmartTracker (optional) |
| Drivers included |
Yes |
| Quick start guide |
Yes |
| Cartridge(s) included |
Yes |
| Package weight |
102 kg |
| Package height |
718 mm |
| Package depth |
766 mm |
| Package width |
1440 mm |
| General |
| Product family |
Designjet |
| Other features |
| Touchscreen |
Yes |
