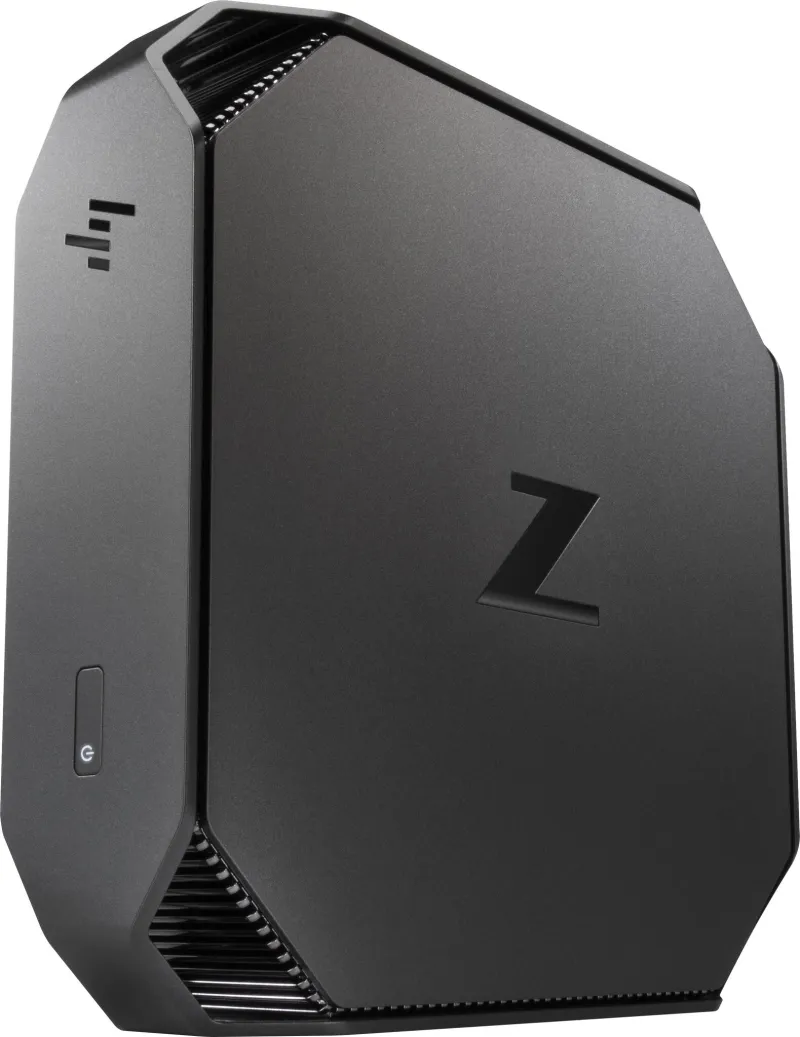

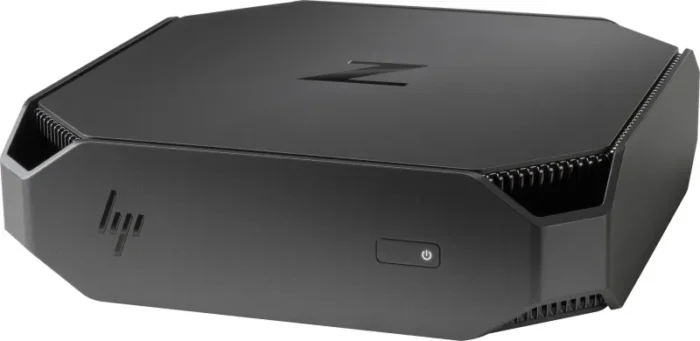

HP Z2 Mini G4 Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® P600 Windows 10 Pro Mini PC Workstation Black
- Intel® Core™ i7-8700 with Intel® UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)
- Windows 10 Pro 64
- NVIDIA® Quadro® P600 (4 GB GDDR5 dedicated)
- 16 GB memory; 512 GB SSD storage
Transform your workspace with our most powerful mini desktop
Get high-end performance packed into an insanely small and versatile device. Take on 3D design projects and work in multiple pro apps with ease. And with the flexibility to be placed almost anywhere, it’s the obvious choice for the modern workplace.
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
64 GB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×16, 1×8+2×4, 2×8 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Processor codename |
Coffee Lake |
| Thermal Design Power (TDP) |
65 W |
| Processor series |
Intel Core i7-8700 Desktop Series |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Bus type |
DMI3 |
| Processor cache type |
L3 |
| Processor cache |
12 MB |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor frequency |
3.2 GHz |
| Processor boost frequency |
4.6 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
i7-8700 |
| Processor generation |
8th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory clock speed |
2666 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| SSD interface |
PCI Express |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| Number of execution units |
24 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card ID |
0x3E92 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1200 MHz |
| Maximum on-board graphics card memory |
64 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics memory type |
GDDR5 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA® Quadro® P600 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
No |
| DisplayPorts quantity |
2 |
| DVI port |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Design |
| Country of origin |
China |
| Product colour |
Black |
| Placement supported |
Horizontal |
| Chassis type |
Mini PC |
| Performance |
| Audio chip |
Conexant CX20632-31Z |
| Motherboard chipset |
Intel C246 |
| Market positioning |
Business |
| Product type |
Workstation |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| Conflict-Free processor |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Clear Video Technology |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
1.00 |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
Yes |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Processor package size |
37.5 x 37.5 mm |
| Intel Trusted Execution Technology |
Yes |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Execute Disable Bit |
Yes |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
126686 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Processor code |
SR3QS |
| Brand-specific features |
| HP segment |
Business |
| Sustainability |
| Sustainable technologies and materials |
Low halogen |
| Weight & dimensions |
| Weight |
2.04 kg |
| Height |
58 mm |
| Depth |
216 mm |
| Width |
216 mm |
| Packaging content |
| Display included |
No |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
| Other features |
| Keyboard type |
USB |
| Graphics card interface |
PCIe x16 |
