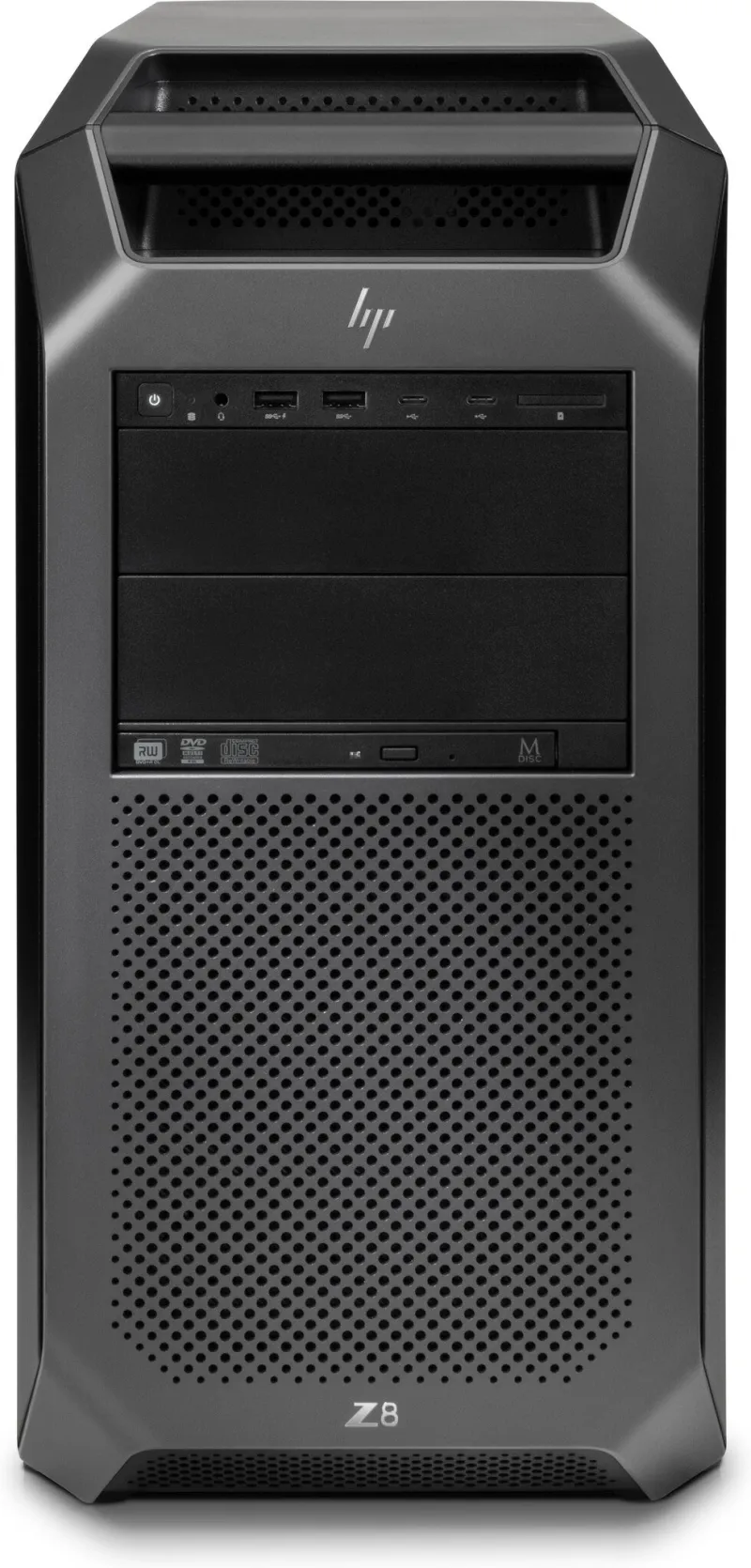

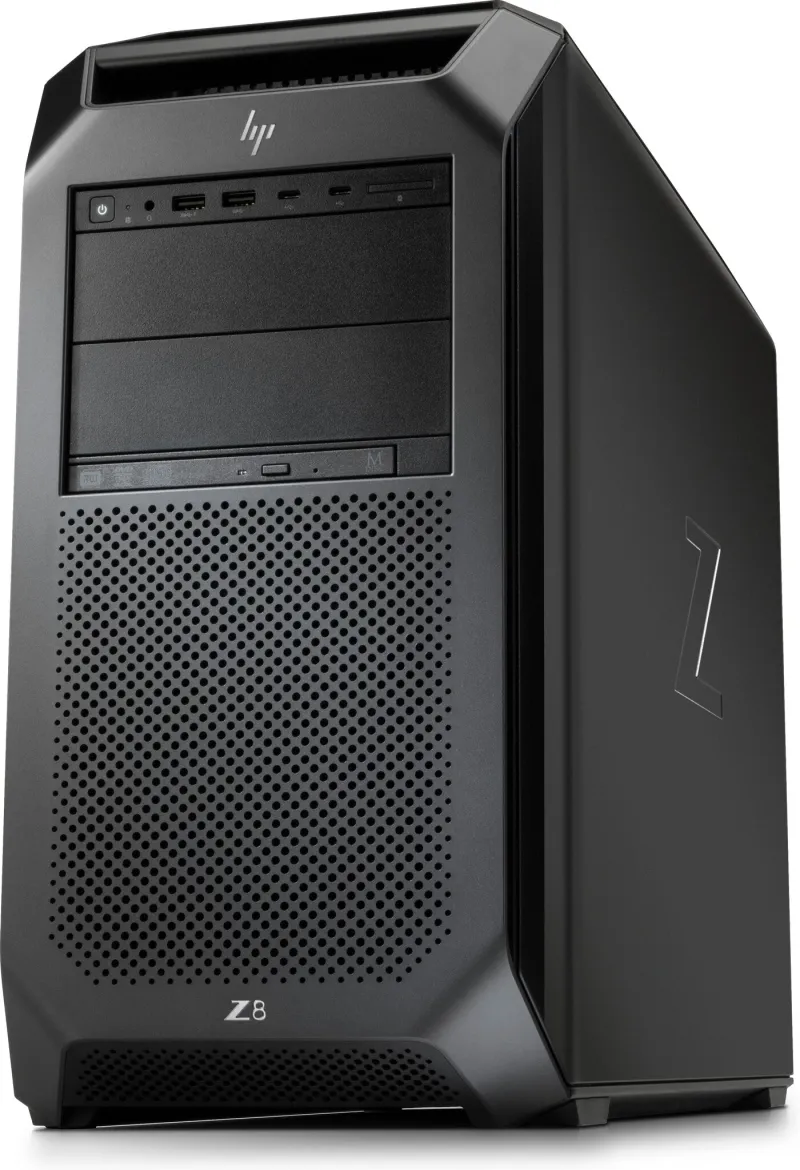

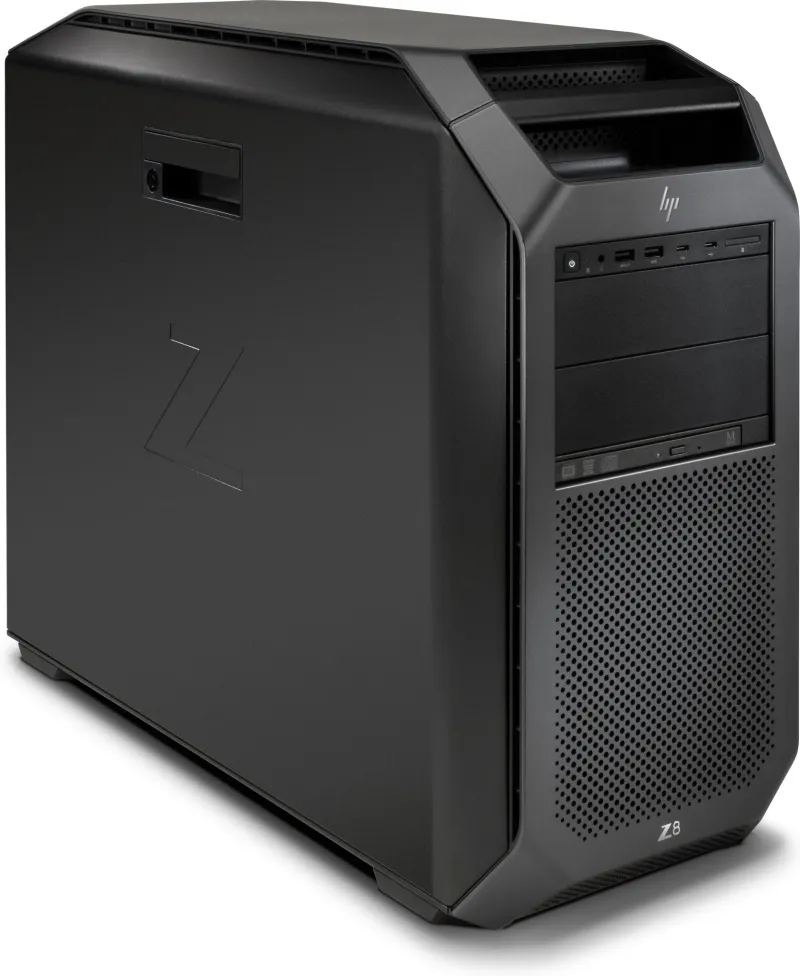

HP Z8 G4 Intel® Xeon® Gold 6244 192 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro RTX 8000 Linux Tower Workstation Black
- Intel® Xeon® Gold 6244 (3.6 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 24.75 MB cache, 8 cores)
- Linux® Ready
- NVIDIA® Quadro RTX™ 8000 (48 GB GDDR6 dedicated)
- 192 GB memory; 4 TB HDD storage; 2.5 TB SSD storage
HP’s most powerful desktop workstation [2]
Top-of-the-line power to fuel those who reimagine our world. When you need a workstation with the capability to run complex simulations, handle advanced Machine Learning algorithms and process huge amounts of data, the HP Z8 doesn’t disappoint.
| Processor |
| Memory clock speeds supported by processor |
2933 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
1.02 TB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
48 |
| PCI Express slots version |
3.0 |
| Processor codename |
Cascade Lake |
| Thermal Design Power (TDP) |
200 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor cache type |
L3 |
| Processor cache |
24.75 MB |
| Processor socket |
LGA 3647 (Socket P) |
| Processor frequency |
3.6 GHz |
| Processor boost frequency |
4.4 GHz |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor model |
6244 |
| Processor generation |
2nd Generation Intel® Xeon® Scalable |
| Processor family |
Intel® Xeon® Gold |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory clock speed |
2933 MHz |
| Memory slots |
12x DIMM |
| Memory layout (slots x size) |
12 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
1.5 TB |
| Internal memory |
192 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| HDD speed |
7200 RPM |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
DVD-RW |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Not available |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
48 GB |
| Discrete graphics card model |
NVIDIA Quadro RTX 8000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
No |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
No |
| Ethernet LAN (RJ-45) ports |
2 |
| PS/2 ports quantity |
2 |
| DVI port |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
10 |
| Expansion slots |
| PCI Express x16 slots |
4 |
| PCI Express x8 slots |
3 |
| PCI Express x4 slots |
2 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Number of 5.25″ bays |
2 |
| Number of 3.5″ bays |
4 |
| Placement supported |
Vertical |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Audio chip |
Realtek ALC221 |
| Motherboard chipset |
Intel C622 |
| Market positioning |
Business |
| Product type |
Workstation |
| Software |
| Operating system installed |
Linux |
| Processor special features |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Processor package size |
76.0 x 56.5 mm |
| Intel Trusted Execution Technology |
Yes |
| Supported instruction sets |
AVX-512 |
| Execute Disable Bit |
Yes |
| Scalability |
4S |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
192451 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
Yes |
| Brand-specific features |
| HP segment |
Business |
| Sustainability |
| Sustainable technologies and materials |
Low halogen |
| Weight & dimensions |
| Weight |
22.4 kg |
| Height |
444.5 mm |
| Depth |
551.2 mm |
| Width |
215.9 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| Other features |
| Keyboard type |
USB |
| Graphics card interface |
PCIe x16 |
