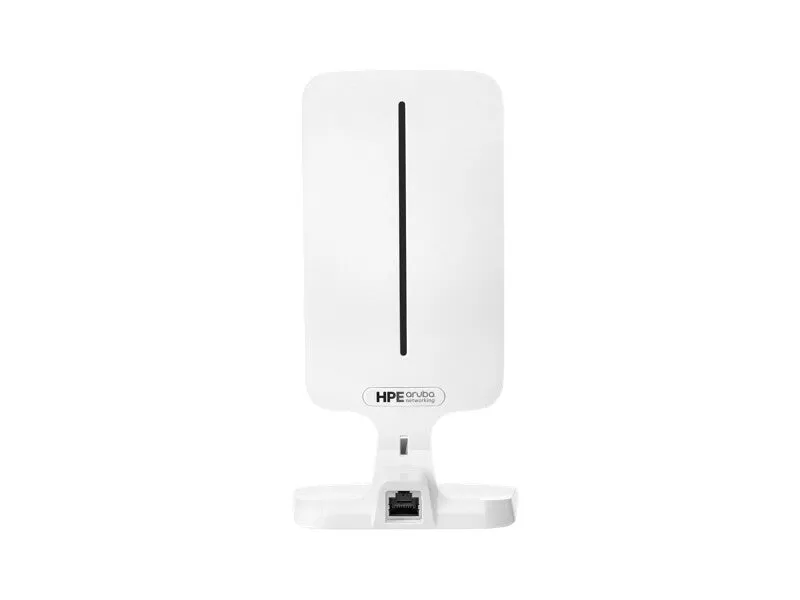

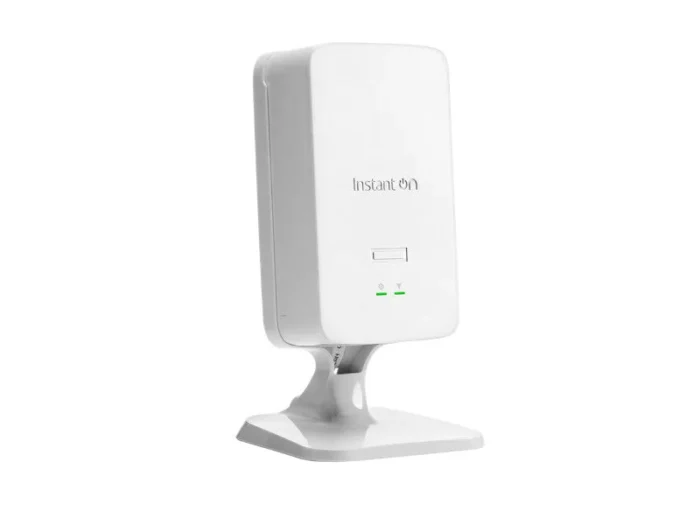

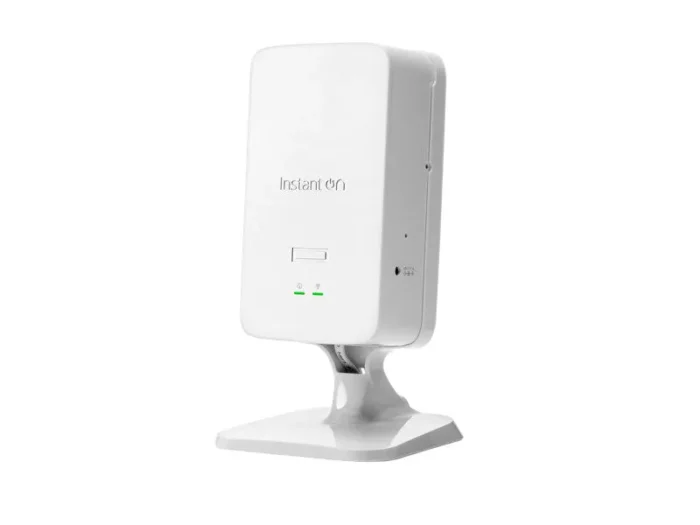

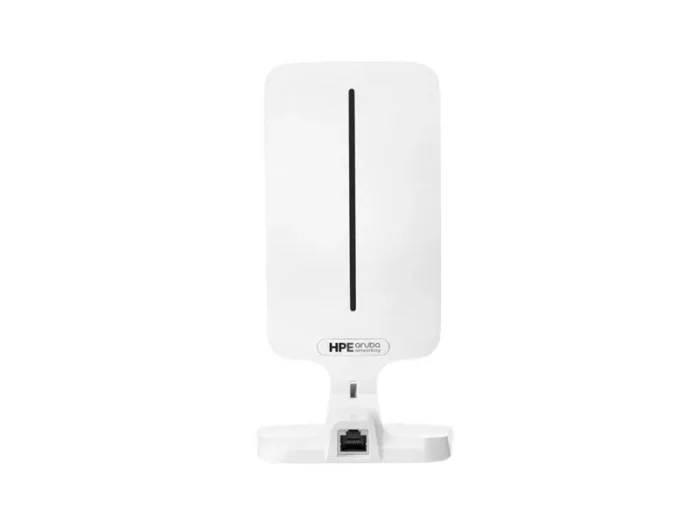

HPE AP22D 1200 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 574 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1200 Mbit/s
- IEEE 802.11ax, IEEE 802.3at, IEEE 802.3bt
- OWE, WPA2, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal
The HPE Networking Instant On Access Points AP22D is the more versatile version of the AP22. It has the same antenna array and spatial streams (2×2:2) but has a 2.5 GbE uplink port and four 1 GbE downlink ports for hardwired devices. The AP22D is great for IP phones or receipt printers in areas that need more Ethernet ports and only one in-room Ethernet port is available.
| Features | |
|---|---|
| MIMO | Yes |
| Number of users | 75 user(s) |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11ax, IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | OWE, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
|---|---|
| Power consumption (max) | 51 W |
| Power consumption (typical) | 50 W |
| DC voltage range | 48 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Desk, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 5.4 dBi |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Weight & dimensions | |
|---|---|
| Weight | 360 g |
| Height | 150 mm |
| Depth | 47 mm |
| Width | 86 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
