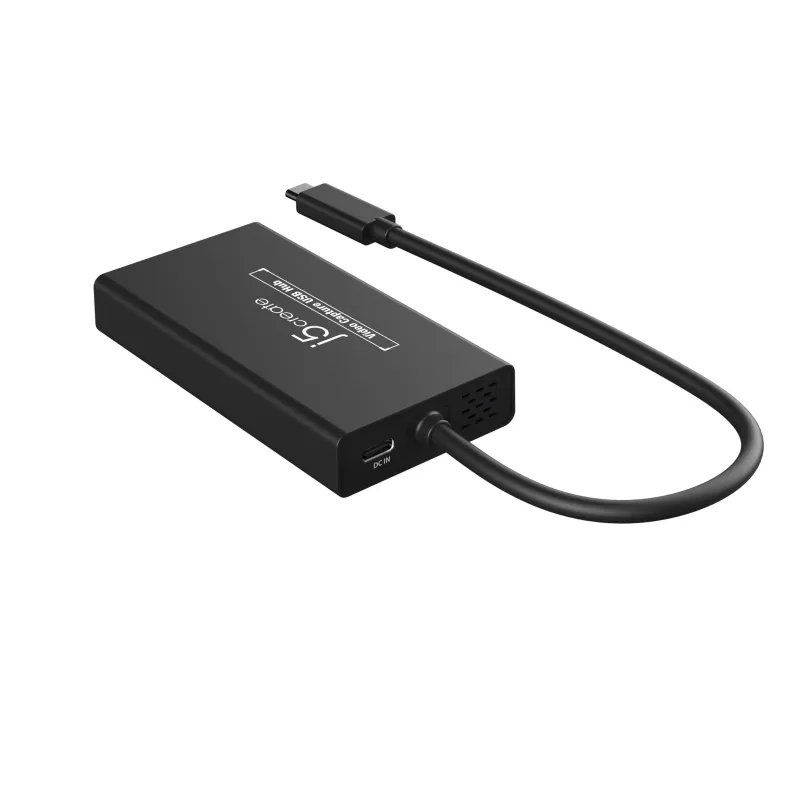

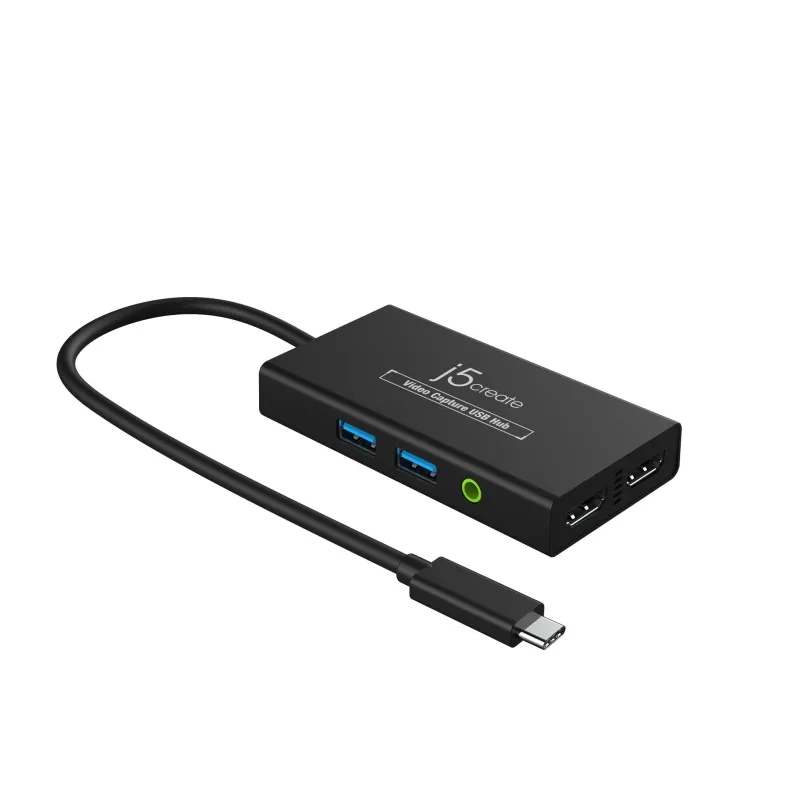

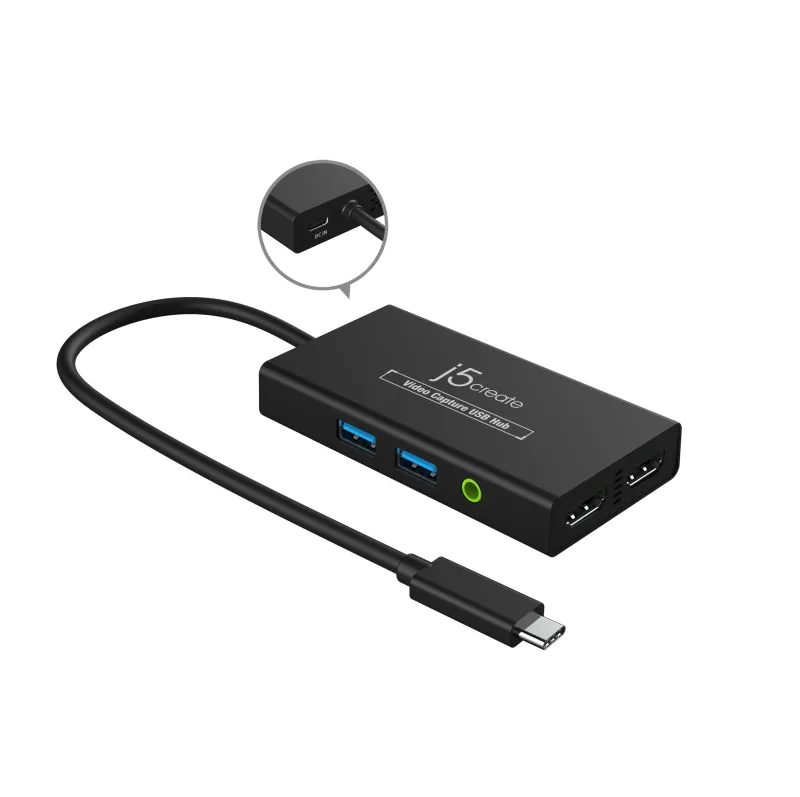

j5create JVA01-N Video Capture USB™ Hub
- “UVC Capture
- HDMI™ to USB-C® with 60W Power Delivery
- Power Delivery 3.0 lets you stream live without interruption
- Ultra-low latency stream through USB-C® 3.2 connection
- 3.5 mm audio jack allows you to connect headphones or speakers
- 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
- UVC standard – No driver installation required
- Field production made easy with its compact size”
- “USB-C® Hub with 4K HDMI™
- Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz
- USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
- 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
- No driver installation required for Windows® or macOS®”
The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.
| Performance |
| Compatible products |
Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended). |
| Country of origin |
Taiwan |
| Housing material |
Plastic |
| Plug and Play |
Yes |
| High Dynamic Range (HDR) supported |
No |
| Cable length |
0.3 m |
| Capturing from |
Digital camera, Game console, PC |
| Memory card slot(s) |
No |
| Video capture resolution (max) |
1920 x 1080 pixels |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal |
No |
| Product colour |
Black |
| Video |
| Maximum refresh rate |
30 Hz |
| Supported resolutions |
HDMI™ In: 3840 x 2160USB-C® display: 3840 x 2160Capture/Record: 1920 x 1080 |
| Analog signal format system |
Not supported |
| Ports & interfaces |
| Headphone outputs |
1 |
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
| HDMI ports quantity |
2 |
| USB ports quantity |
2 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB connector type |
USB Type-A |
| USB port |
Yes |
| Power |
| Output voltage |
20 V |
| Output current |
3 A |
| Input current |
3 A |
| Input voltage |
20 V |
| Power supply type |
USB |
| Software |
| Other operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-10 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Technical details |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Weight |
69 g |
| Height |
15 mm |
| Depth |
96.5 mm |
| Width |
50.5 mm |
| Packaging content |
| Quantity |
1 |
| Manual |
Yes |
| Quick installation guide |
Yes |
| Packaging data |
| Package type |
Box |
| Package height |
22.5 mm |
| Package width |
193 mm |
| Package depth |
125 mm |
| Package weight |
148.2 g |
