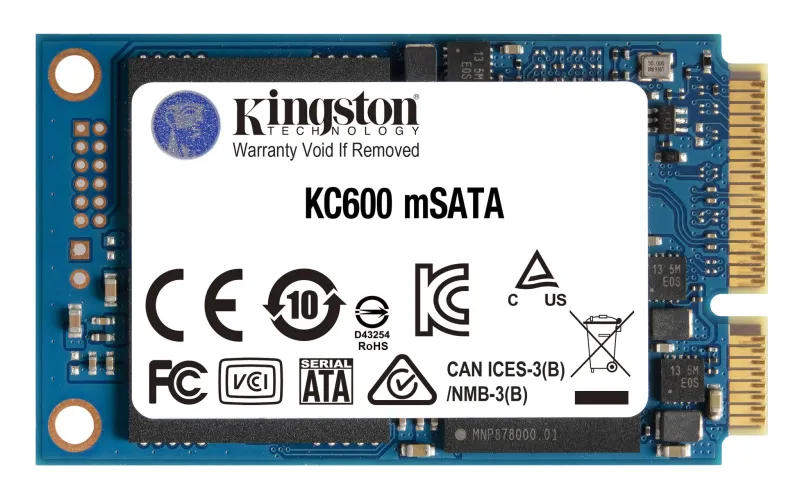

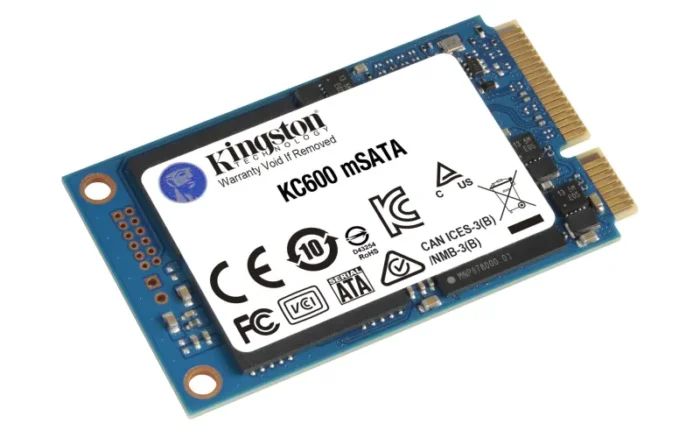

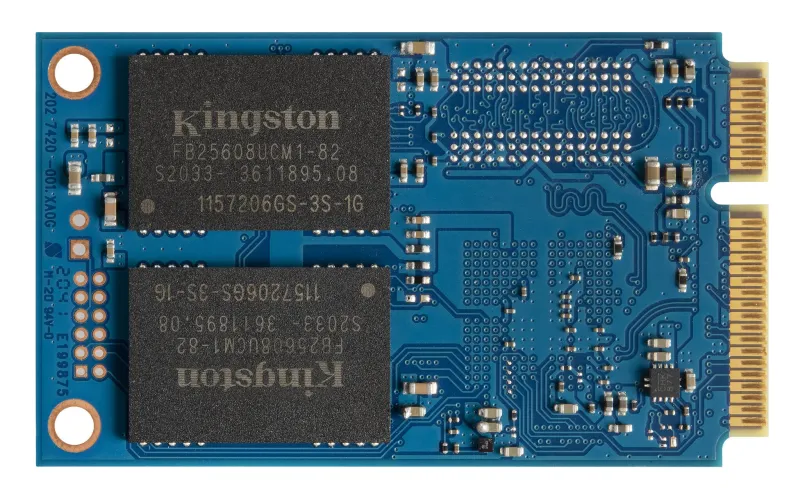

Kingston Technology 256G SSD KC600 SATA3 mSATA
- Remarkable performance
- Features the latest 3D TLC NAND technology
- Supports a full security suite (TCG Opal, AES 256-bit, eDrive)
- Available in range of full capacities
Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5″ and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s* to efficiently store your data up to 2TB**. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.
Remarkable performance
Using the latest 3D TLC NAND technology, it enables read/write speeds of up to 550/520MB/s.*
Full-security suite
Protect and secure your data with Kingston’s self-encrypting drive.
Easy installation/upgrade
KC600 is available in an upgrade bundle kit that has everything you need to install your drive easily.
Multiple capacities
KC600 is available in a range of full capacities from 256GB to 2TB.**
| Features | |
|---|---|
| TBW rating | 150 |
| Mean time between failures (MTBF) | 1000000 h |
| Controller type | SMI SM2259 |
| Random write (4KB) | 80000 IOPS |
| Random read (4KB) | 90000 IOPS |
| Write speed | 500 MB/s |
| Read speed | 550 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES-XTS |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| Memory type | 3D TLC |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | mSATA |
| SSD capacity | 256 GB |
| Power | |
|---|---|
| Power consumption (idle) | 0.08 W |
| Power consumption (average) | 0.1 W |
| Power consumption (write) | 2.4 W |
| Power consumption (read) | 1.2 W |
| Weight & dimensions | |
|---|---|
| Weight | 6 g |
| Height | 4.85 mm |
| Depth | 50.8 mm |
| Width | 29.9 mm |
| Packaging data | |
|---|---|
| Package weight | 13.94 g |
| Package height | 95.2 mm |
| Package depth | 7.62 mm |
| Package width | 45.7 mm |
| Operational conditions | |
|---|---|
| Non-operating vibration | 20 G |
| Operating vibration | 2.17 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case gross weight | 416.98 g |
| Master (outer) case height | 54 mm |
| Master (outer) case length | 206.4 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case width | 104.8 mm |
| Country of origin | China |
- leaflet
- Remarkable performance in full capacity
