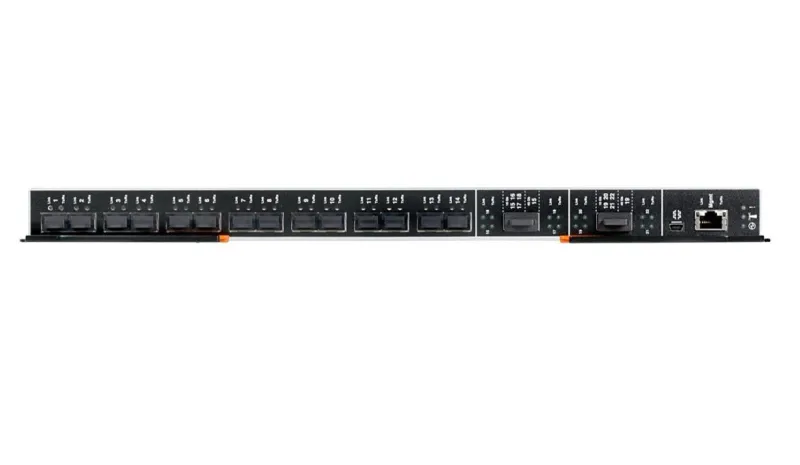

Lenovo 00FM514 network switch Managed L2/L3 Black
- Managed L2/L3 SNMP V1,V3
- Quality of Service (QoS) support
- 10G support
- MAC address table: 128000 entries
- Access Control List (ACL)
The Lenovo® Flex System Fabric EN4093R 10Gb Scalable Switch provides unmatched scalability, port flexibility, and performance. The switch also delivers innovations to help address several networking concerns today and provides capabilities that help you prepare for the future.
This switch can support up to 64x 10 Gb Ethernet connections while offering Layer 2/3 switching, in addition to OpenFlow and “easy connect” modes. It installs within the I/O module bays of the Flex System™ Enterprise Chassis. This switch can help clients migrate to a 10 Gb or 40 Gb Ethernet infrastructure, offers cloud-ready virtualization features (such as Lenovo Virtual Fabric and VMready®), and is Software Defined Network (SDN) ready.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Network | |
|---|---|
| Number of VLANs | 4095 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Number of static routes | 128 |
| Static route | Yes |
| MAC address table | 128000 entries |
| Security | |
|---|---|
| Password protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPF, RIP |
| Management protocols | SNMP V1,V3 |
| Design | |
|---|---|
| Product colour | Black |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 236805 h |
| Weight & dimensions | |
|---|---|
| Weight | 3.7 kg |
| Height | 30 mm |
| Depth | 317 mm |
| Width | 401 mm |
| Packaging data | |
|---|---|
| Package weight | 4.1 kg |
| Package height | 114 mm |
| Package depth | 432 mm |
| Package width | 508 mm |
| Certificates | |
|---|---|
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class AIEC/EN 60950-1, Second EditionCanada ICES-003, issue 4, Class AJapan VCCI, Class AAustralia/New Zealand AS/NZS CISPR 22:2006, Class ATaiwan BSMI CNS13438, Class ACE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3)CISPR 22, Class AChina GB 9254-1998Turkey Communique 2004/9; Communique 2004/22Saudi Arabia EMC.CVG, 28 October 2002 |
