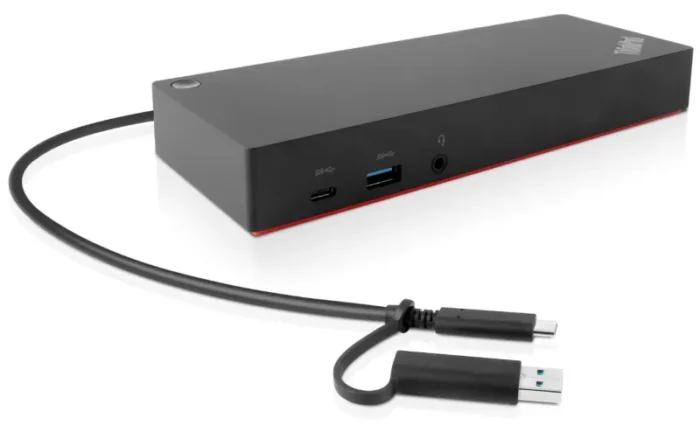

Lenovo 40AF0135EU laptop dock/port replicator Wired Black
Enterprise-class Universal Docking The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. And, with the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or USB-C notebooks.
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Quality, TUV Mark, Ukraine DoC, VCCI |
| Compatibility | E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260 |
| Brand compatibility | Lenovo |
| Number of displays supported | 2 |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Card reader integrated | No |
| Product colour | Black |
| Power | |
|---|---|
| Power plug type | Type C |
| Power supply | 135 W |
| Power source type | AC |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 480 g |
| Height | 30 mm |
| Depth | 80 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 1.35 kg |
| Package height | 88 mm |
| Package depth | 165 mm |
| Package width | 270 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
