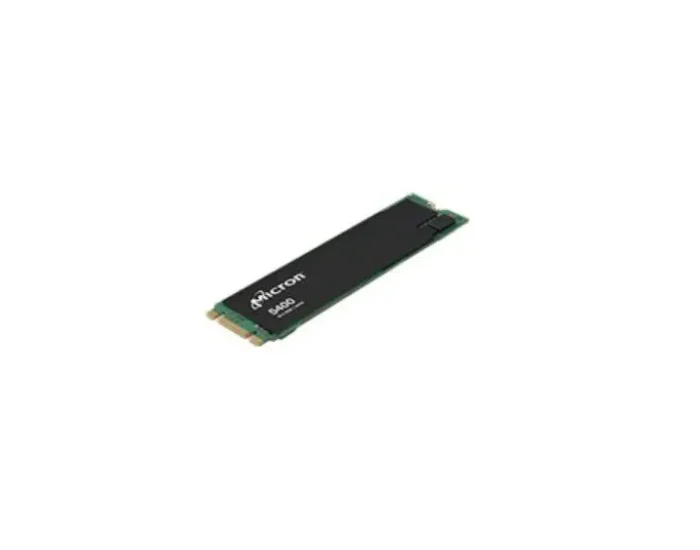

Lenovo 4XB7A82287 internal solid state drive 480 GB M.2 Serial ATA III 3D TLC NAND
- 480 GB M.2 Serial ATA III
- 95000 IOPS
- 37000 IOPS
- 3D TLC NAND
- S.M.A.R.T. support
- Component for: Server/workstation
The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | Micron Green StandardBuilt with sulfur resistant resistorsCE (Europe): EN 55032 Class B, RoHSUKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHSFCC: CFR Title 47, Part 15 Class BUL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663RCM (Australia, New Zealand): AS/NZS CISPR32 Class BKC RRA (Korea): approval to KN32 Class B, KN 35 Class BW.E.E.E.: compliance with EU WEEE directive 2012/19/ECTUV (Germany): approval to IEC60950/EN60950VCCI (Japan): 2015-04 Class BIC (Canada): ICES-003 Class BMorocco: approval to EN55032/EN55024 Class BUkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) |
| Mean time between failures (MTBF) | 3000000 h |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Write latency | 42 µs |
| Read latency | 170 µs |
| Random write (4KB) | 37000 IOPS |
| Random read (4KB) | 95000 IOPS |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD form factor | M.2 |
| SSD capacity | 480 GB |
| Power | |
|---|---|
| Power consumption (write) | 3.1 W |
| Power consumption (read) | 2.5 W |
| Weight & dimensions | |
|---|---|
| Height | 3.9 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1500 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Compatible products | ThinkSystem |
