Lenovo 4XC7A80567 network card Internal Ethernet 25000 Mbit/s
- Wired
- PCI Express 4.0 Ethernet
- 10 Gigabit Ethernet, 25 Gigabit Ethernet 25000 Mbit/s
- Internal Component for: Server

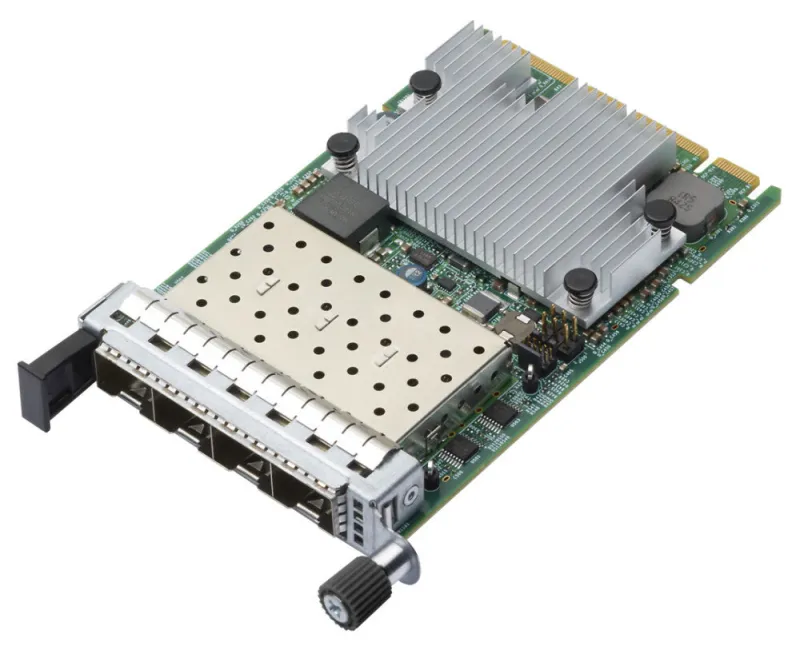

The ThinkSystem Broadcom 57504 10/25GbE SFP28 4-port adapters are high-performance low-power 25 Gb Ethernet adapters with a PCIe 4.0 host interface that offers TruFlow intelligent flow processing and supports advanced networking technologies such as VXLAN, NVGRE, Geneve, RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
| Ports & interfaces | |
|---|---|
| PCI version | 4.0 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Networking standards | IEEE 1588 |
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
|---|---|
| Certification | EN 55022:2010 + AC:2011 Class B (CE EU)EN 55024 Class B (EU)CFR47, Part 15 Class B (USA FCC)ICES-003 Class B (Canada)CNS13438 Class B (BSMI Taiwan)RRL KN22 Class B (S. Korea)KN24 (ESD) (S. Korea)V-3 / 2014 / 04 (VCCI Japan)EN 60950-1UL 60950-1CTUVus ULCSA 22.2 No. 950CNS14336 Class BICES 003UL 1977 (connector safety)UL 796 (PCB wiring safety)UL 94 (flammability of parts) |
| Form factor | OCP 3.0 |
| Component for | Server |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Weight & dimensions | |
|---|---|
| Depth | 115 mm |
| Width | 76 mm |
