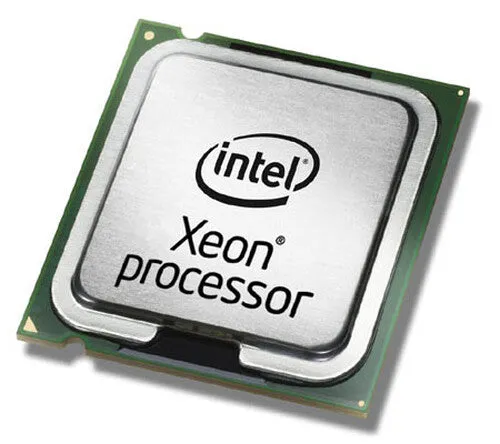

Lenovo Intel Xeon Gold 6226R processor 2.9 GHz 22 MB
- Intel® Xeon® Gold 6226R 2.9 GHz
- 22 MB LGA 3647 (Socket P)
- Processor cores: 16 14 nm 64-bit 150 W
- Maximum internal memory supported by processor: 1 TB DDR4-SDRAM
| Processor | |
|---|---|
| Processor codename | Cascade Lake |
| Number of QPI links | 2 |
| Bus type | UPI |
| Thermal Design Power (TDP) | 150 W |
| Processor cache | 22 MB |
| Processor boost frequency | 3.9 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 32 |
| Component for | Server/workstation |
| Box | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 16 |
| Processor base frequency | 2.9 GHz |
| Processor model | 6226R |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | Yes |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Speed Select Technology – Base Frequency (Intel® SST-BF) | No |
| Intel® Speed Select technology – Performance Profile (Intel® SST-PP) | No |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 85 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
|---|---|
| Processor package size | 76 x 56.5 mm |
| Other features | |
|---|---|
| Compatibility | ThinkSystem SR590/SR650 |
